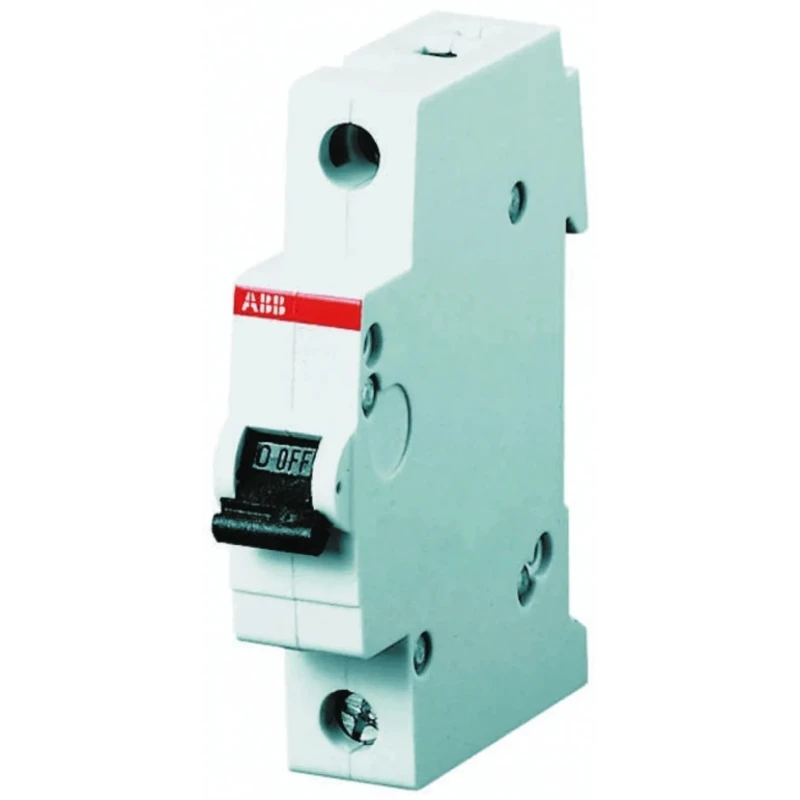

ABB System Pro M Compact S200M Miniature Circuit Breaker 1-Pole 16A Type D 230V AC 72V DC 15kA 2CDS271001R0161 S201M-D16

ABB 2CDS271001R0161 S201M-D16 Miniature Circuit Breaker from the System Pro M Compact S200M series is engineered for dependable circuit protection in commercial and industrial electrical installations. It is designed to safely interrupt electrical faults, preventing damage from overloads and short circuits.

This device supports a current rating of 16A and has a breaking capacity of 15kA, making it suitable for demanding electrical environments. Its single-pole configuration provides reliable protection for single-phase circuits commonly found in lighting and power distribution applications.

Featuring Type D tripping characteristics, this MCB is well suited for circuits with high inrush currents such as motors and transformers. Its thermal electromechanical mechanism ensures precise and fast tripping response to electrical faults, enhancing the safety and dependability of installations.

The circuit breaker is designed for easy DIN rail mounting, streamlining installation in standard distribution boards. Its compact size, measuring 88mm in height, 17.5mm in width, and 69mm in depth, allows for efficient use of panel space.

Constructed according to IEC/EN 60898-1 and IEC/EN 60947-2 standards, the MCB offers certified quality and performance. With an IP20 rating, it is protected against solid objects and inadvertent contact, ensuring operational safety in indoor electrical panels.

The lever actuator provides a convenient manual reset capability after tripping events. This Miniature Circuit Breaker is ideal for protecting industrial machinery, lighting circuits, and power distribution networks across commercial and industrial facilities.

Provides short circuit protection with a breaking capacity of 15kA. Features a single-pole design suitable for single-phase electrical systems. Mounts easily on DIN rails for quick installation in standard distribution boards.

Operates at rated voltages of 230V AC and 72V DC. Incorporates an electromechanical thermal tripping mechanism for accurate fault detection. Compact dimensions of 88mm height, 17.5mm width, and 69mm depth save panel space.

Equipped with Type D characteristics ideal for handling high inrush currents. Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards for safety and performance. IP20 rated for protection against physical contact and ingress of solid objects.

Includes a lever reset actuator for easy resetting after tripping. Explore the range of ABB products and related circuit breakers on EnvMart for comprehensive industrial and commercial electrical solutions.
