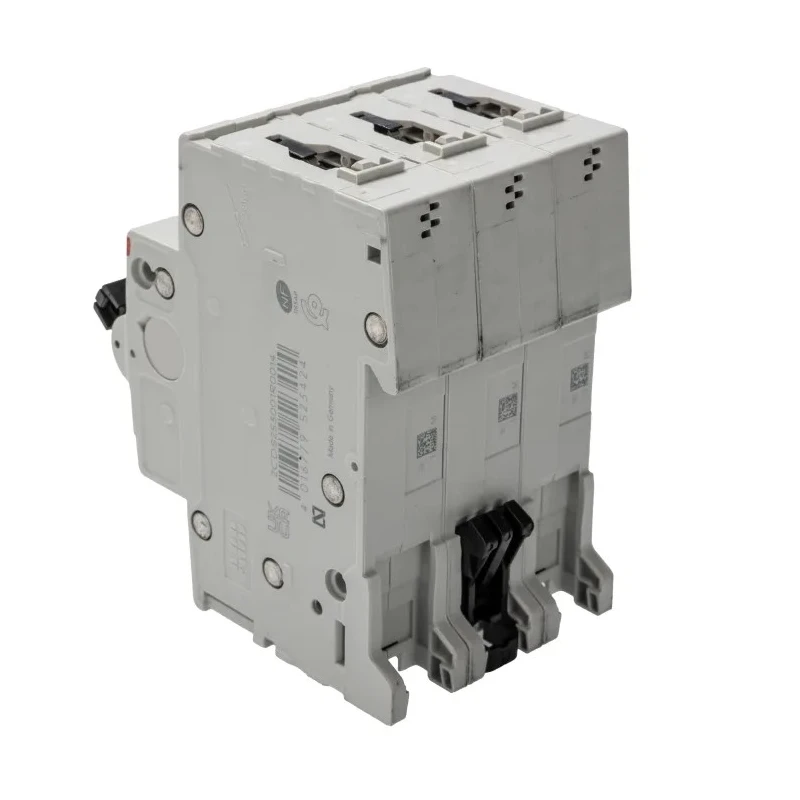

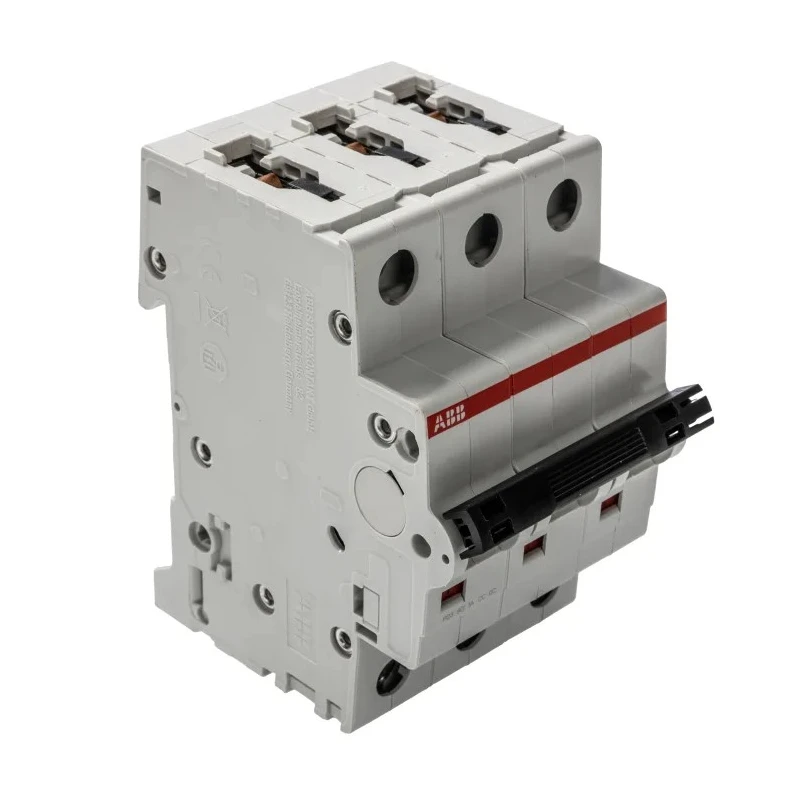

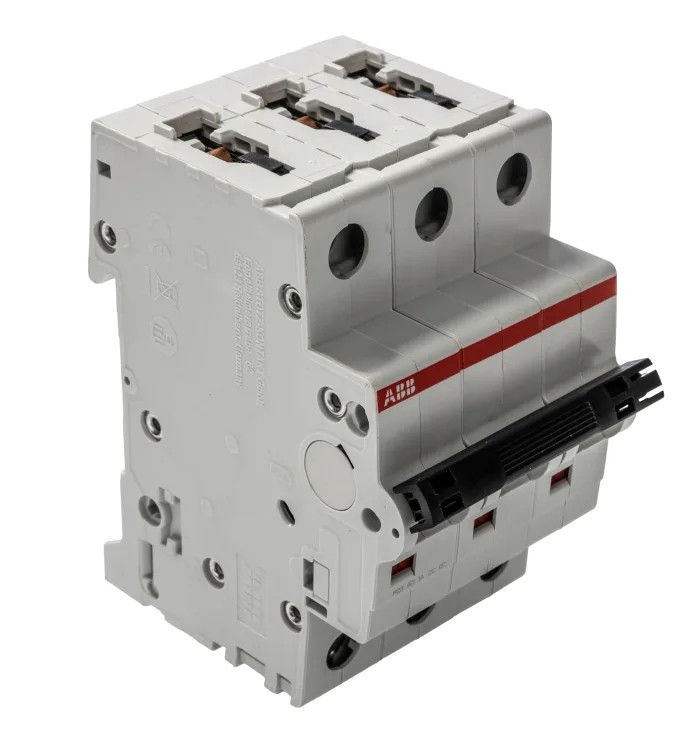

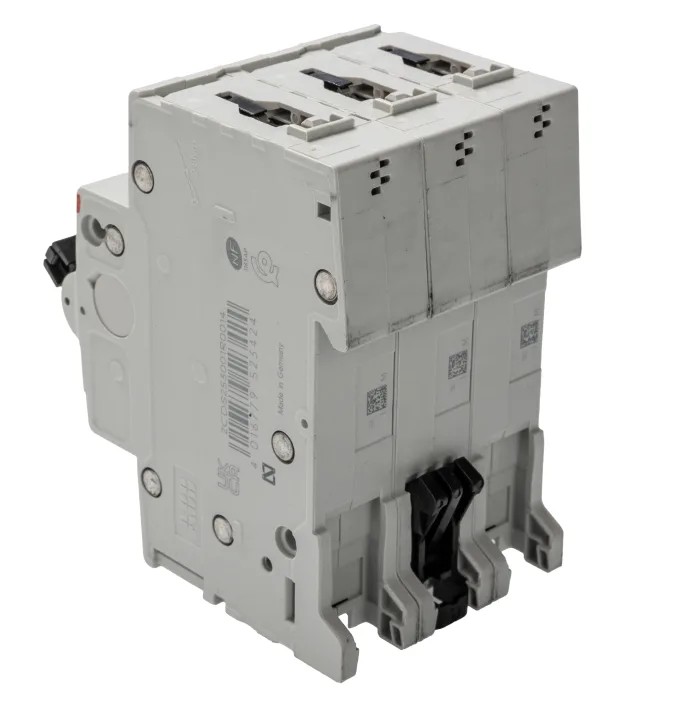

ABB System Pro M Compact Miniature Circuit Breaker, 3-Pole, 16A, Type D, 400V AC, 12V DC, 15kA 2CDS273001R0161 S203M-D16
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS273001R0161 S203M-D16 |
| Depth | 69mm |
| IP Rating | IP20 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 16A |
| Series | S200M |
| Terminal type | Screw |
| Breaking Capacity | 15kA |
| Number of Poles | 3 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 12V dc |
| Tripping Characteristics | Type D |
| Tripping Mechanism | Thermal, Electromechanic |
| Reset Actuator Type | Lever |
Key Features
- Provides reliable protection against short circuits and overloads.
- Designed for use in commercial and industrial electrical systems.
- Supports 400V AC and 12V DC rated voltages for versatile applications.
- Type D tripping characteristic suitable for high inrush current devices.

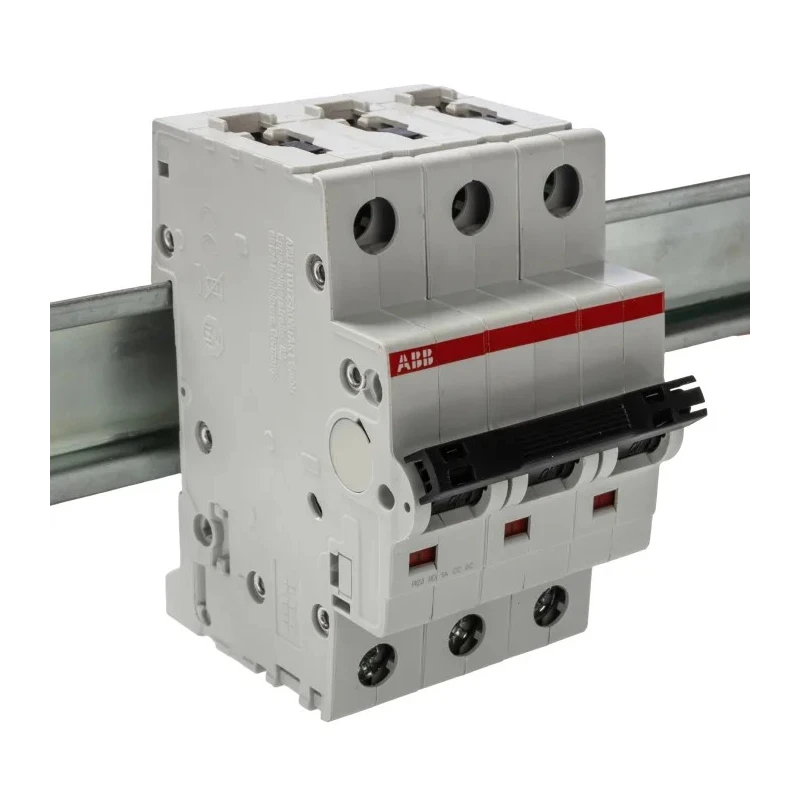

- Compact DIN rail mount design enables easy installation and wiring.
- Robust screw terminal ensures secure electrical connections.
- Thermal and electromechanical tripping mechanism for effective circuit safeguarding.
- High breaking capacity of 15 kA enhances system safety during faults.
Product Description
ABB 2CDS273001R0161 S203M-D16 System Pro M Compact Miniature Circuit Breaker provides dependable electrical circuit protection for commercial, industrial, and automation applications. Rated for 16 amps and supporting three poles, it offers superior safeguarding by interrupting current flow during overloads and short circuits with a Type D characteristic, ideal for circuits with high inrush currents such as motor loads.
Operating at rated voltages of 400V AC and 12V DC, this miniature circuit breaker integrates a thermal and electromechanical tripping mechanism along with a durable screw terminal contact system. Its compact design fits on standard DIN rails, facilitating straightforward installation into electrical distribution panels. The device is IP20 rated and adheres to internationally recognized IEC standards, ensuring robust reliability and safety.
This MCB is engineered for use in industrial machinery, commercial buildings, and automation projects requiring efficient short circuit and overload protection. It helps maintain electrical system integrity by promptly isolating faulted sections, thereby preventing equipment damage and enhancing personnel safety.
Reliable protection against overloads and short circuits. Suitable for high inrush current applications with Type D tripping. Compatible with 400V AC and 12V DC electrical systems. DIN rail mounting for convenient installation and integration.
Screw terminals provide secure and stable electrical connections. 15 kA breaking capacity for high fault current interruption. Compact dimensions (88mm height, 52.5mm width, 69mm depth) optimize panel space. Thermal and electromechanical tripping mechanism enhances response accuracy.
Compliant with IEC/EN 60898-1 and IEC/EN 60947-2 standards for quality assurance.
ABB’s System Pro M Compact series Miniature Circuit Breakers are a trusted choice for ensuring circuit safety in various electrical installations. Their robustness and technical sophistication support industrial, commercial, and automation sectors effectively. Explore our catalog for more high-quality ABB products optimized for your electrical safety and distribution needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This miniature circuit breaker has a current rating of 16A.
It supports rated voltages of 400V AC and 12V DC.
The breaking capacity of this circuit breaker is 15 kA, which enhances system safety during faults.
This model features Type D tripping characteristics, suitable for high inrush current devices.
It is designed for DIN rail mounting, facilitating easy installation and integration into electrical distribution panels.
The dimensions are 88mm in height, 52.5mm in width, and 69mm in depth.
It uses screw terminals, which provide secure and stable electrical connections.
This circuit breaker complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards.
It features a thermal and electromechanical tripping mechanism for effective circuit safeguarding.
It is suitable for use in commercial, industrial, and automation applications requiring short circuit and overload protection.
The country of origin for this miniature circuit breaker is Germany.
It enhances electrical system safety by promptly isolating faulted sections, thereby preventing equipment damage and enhancing personnel safety.
