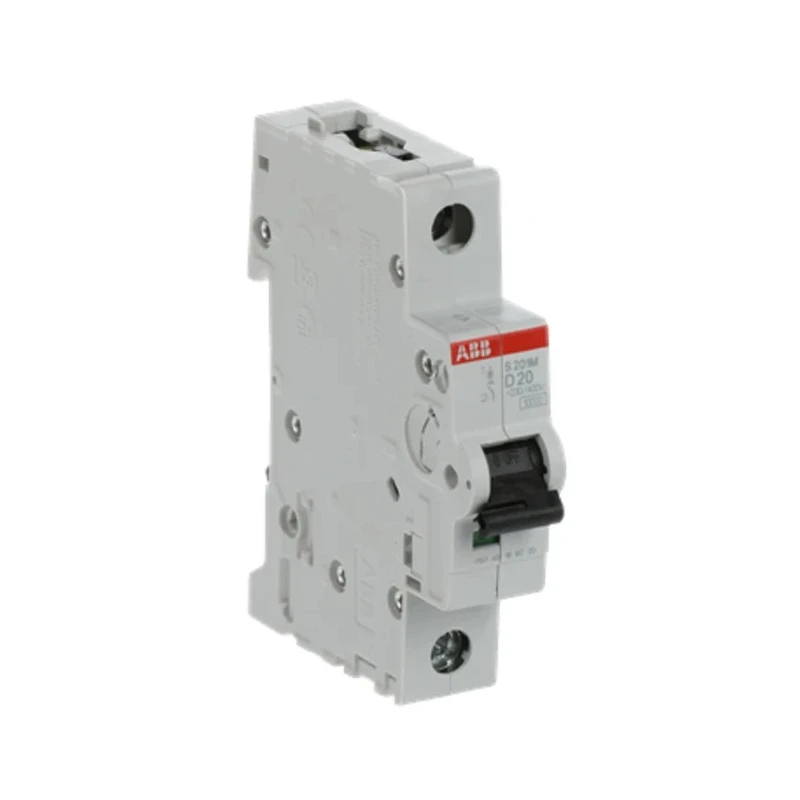

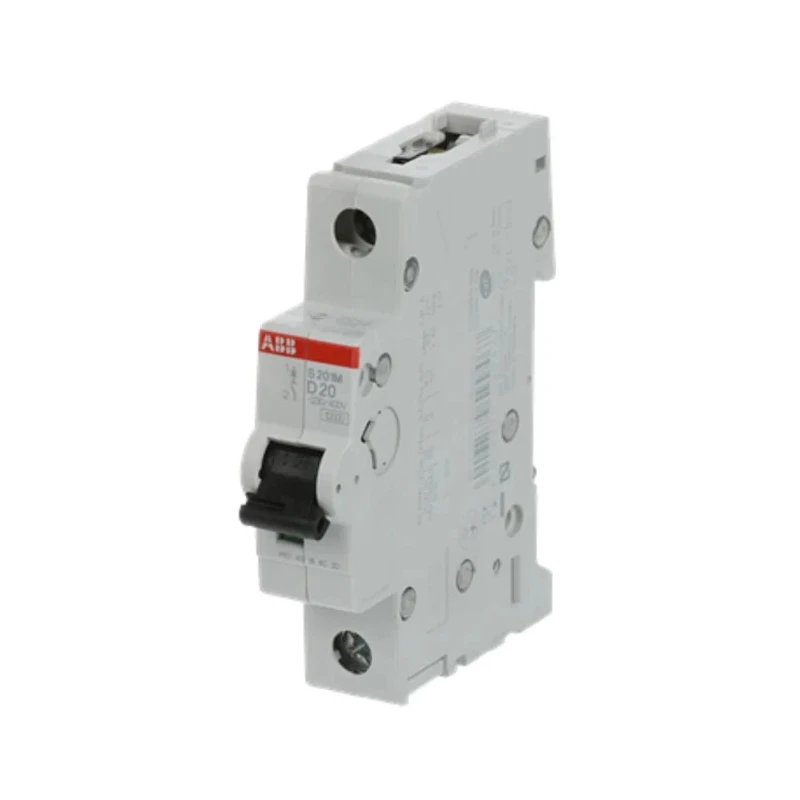

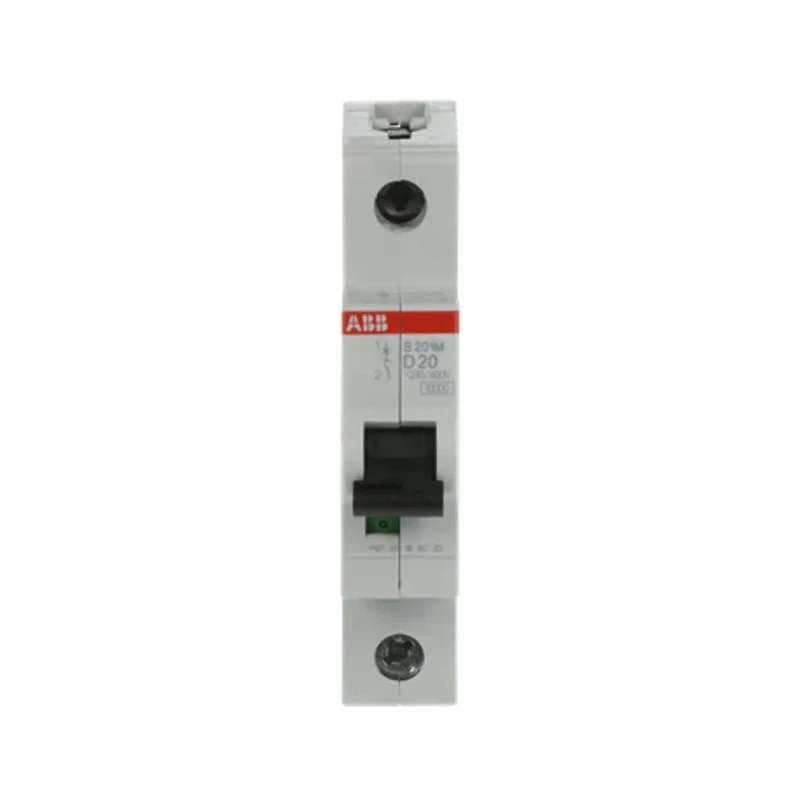

ABB System Pro M Compact S200M Miniature Circuit Breaker, 1-Pole, 20A, Type D Tripping, 230V AC 2CDS271001R0201 S201M-D20

ABB 2CDS271001R0201 S201M-D20 System Pro M Compact S200M Miniature Circuit Breaker is engineered to provide robust electrical protection in commercial and industrial environments. It features a 1-pole design with a 20 ampere current rating and Type D tripping characteristics, which accommodate high inrush currents typically found in motor or lighting circuits.

This miniature circuit breaker operates with a thermal electromechanical tripping mechanism that automatically interrupts circuits during overload or short circuit conditions, enhancing safety and equipment reliability. Rated for 230 volts AC and 72 volts DC, the breaker has a high breaking capacity of 15 kiloamperes, effectively safeguarding electrical circuits from severe fault conditions.

The compact design with dimensions of 88 mm height, 17.5 mm width, and 69 mm depth allows for efficient use of DIN rail mounting systems, making it suitable for control panels and distribution boards in industrial and commercial installations. Its IP20 and IP40 ingress protection ratings ensure adequate defense against dust and accidental contact, making it reliable in demanding environments.

Complying with international standards IEC/EN 60898-1 and IEC/EN 60947-2 guarantees high quality and operational safety. This MCB is a preferred choice for protecting lighting and industrial machinery circuits, as well as for integration in automation control panels.

Designed for safe and rapid circuit disconnection in overload and short circuit events. Type D tripping curve for high inrush current tolerance. Compact form factor suitable for dense electrical panel layouts. Durable screw terminal connections for secure wiring.

Easy reset via lever actuator for convenient operation. Ideal for use in commercial, industrial, and specialized residential settings. Robust construction made in Germany, assuring longevity and performance. Conforms to recognized IEC and EN electrical safety standards.

This ABB Miniature Circuit Breaker is part of the System Pro M Compact range, widely used in electrical protection solutions across various industries including manufacturing, HVAC systems, automation, and commercial building infrastructure. EnvMart offers this product for professionals seeking dependable circuit protection components.
