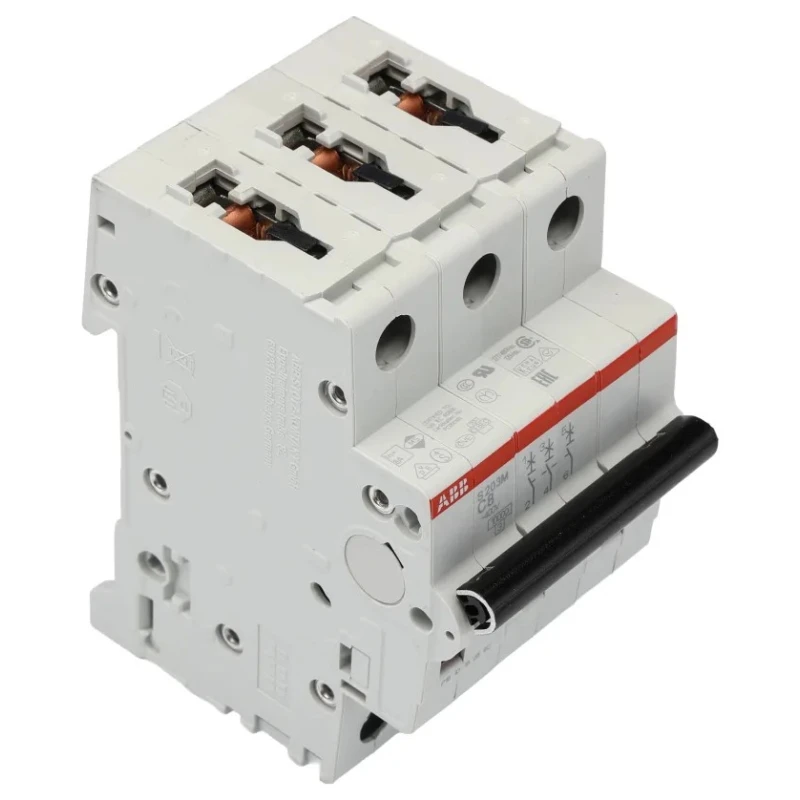

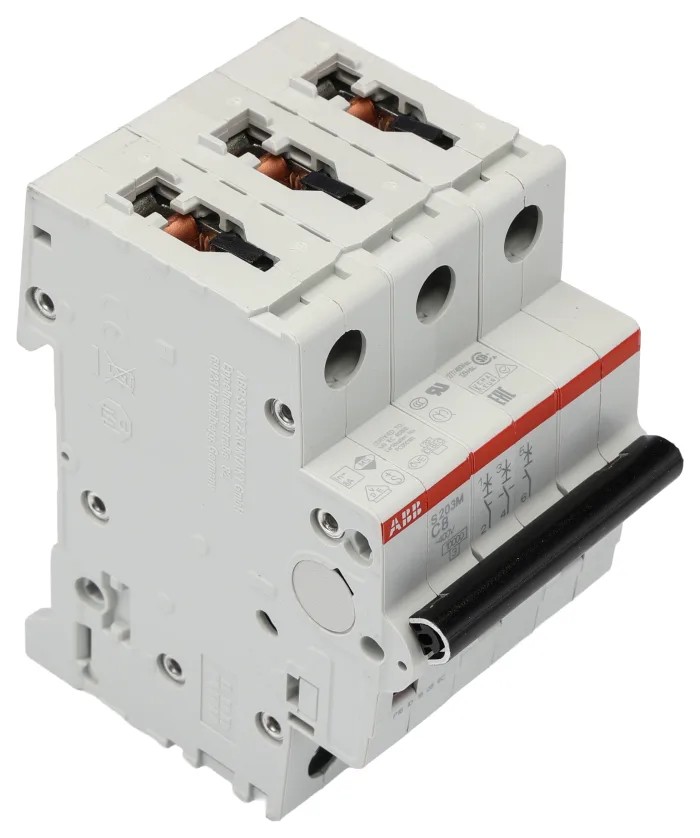

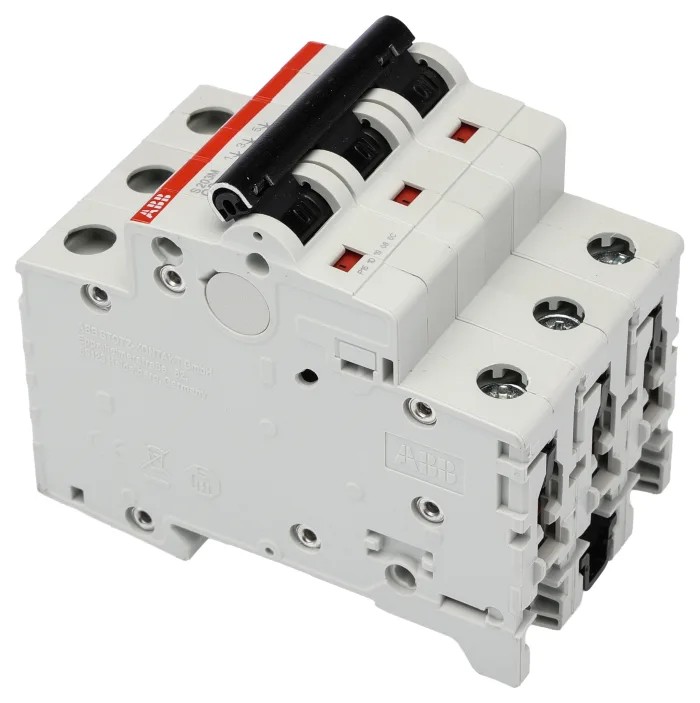

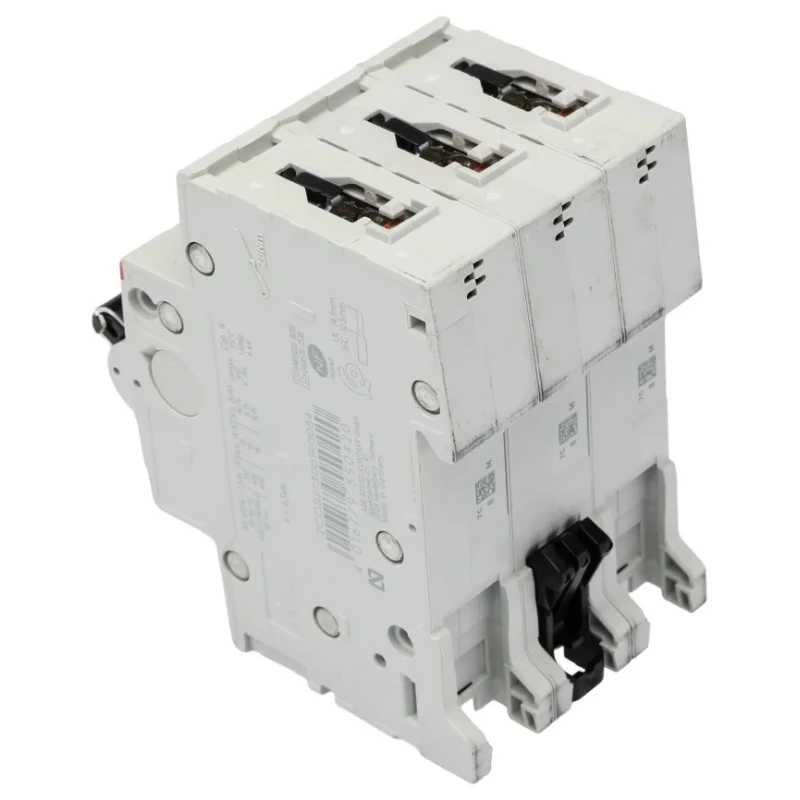

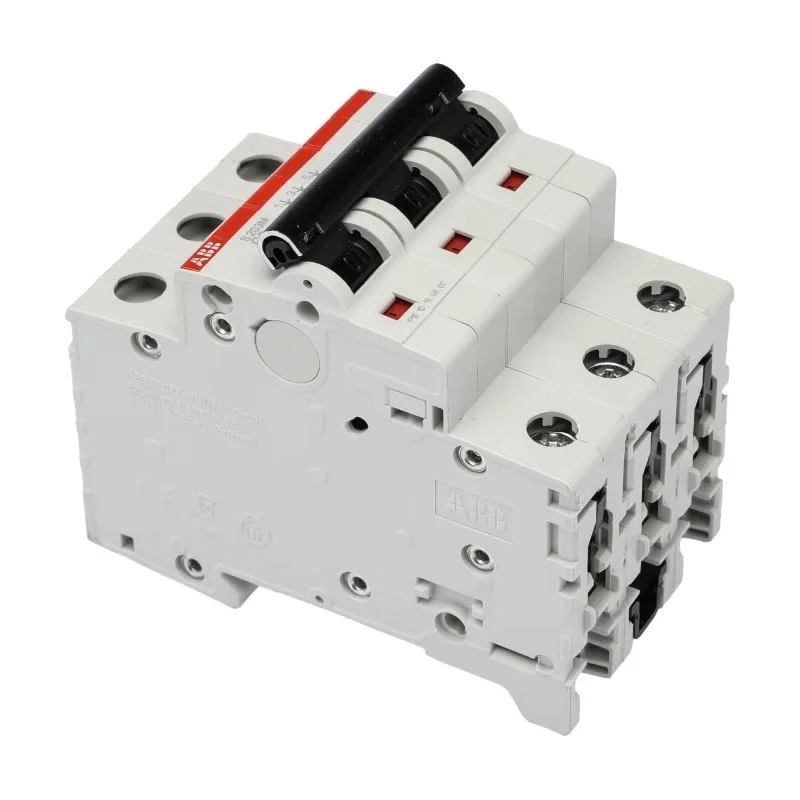

ABB System Pro M Compact S200M Miniature Circuit Breaker, 3-Pole, 8A, Type C, 400V AC, 12V DC, 10 2CDS273001R0084 S203M-C8

ABB 2CDS273001R0084 S203M-C8 System Pro M Compact series Miniature Circuit Breaker (MCB) provides efficient and reliable protection for three-phase electrical systems in commercial and industrial environments. This 3-pole MCB is rated at 8 amps current with a type C tripping characteristic, designed to accommodate moderate inrush currents typical in lighting and motor circuits.

It operates safely with a rated AC voltage of 400 V and DC voltage of 12 V, providing flexible deployment in various electrical configurations. The device mounts securely on standard DIN rails and is equipped with screw terminals for robust electrical connections.

The compact form factor measuring 53 mm in width, 88 mm in height, and 69 mm in depth enables space-efficient installation within control panels and distribution boards. Its IP20 rating ensures protection against ingress of solid foreign objects, maintaining equipment integrity.

Equipped with an electromechanical and thermal tripping mechanism, this MCB provides enhanced reliability by combining instantaneous and delayed tripping to mitigate overload and short-circuit hazards. The breaking capacity of 10 kA delivers high fault interruption capability to prevent damage and ensure personnel safety.

Applications primarily include short circuit protection and overload safeguarding in commercial, industrial, and manufacturing electrical systems, particularly in three-phase power configurations. This MCB complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards ensuring quality and performance.

8A current rating suitable for general electrical applications. Type C tripping characteristic for moderate inrush current tolerance. Supports up to 400V AC and 12V DC operating voltages. Mounts easily on standard DIN rails with screw terminals for secure connections.

High breaking capacity of 10 kA ensures safety during short circuits. Electromechanic and thermal tripping mechanism enhances reliability and protection. Compact design sized 53mm width, 88mm height, and 69mm depth for efficient panel installation.

Rated IP20 providing protection against solid objects and safe usage environment.

This ABB System Pro M Compact S200M Miniature Circuit Breaker provides trusted circuit protection for industrial, commercial, water treatment, manufacturing, and electrical automation applications. Explore the full range of ABB circuit breakers and electrical protection devices at EnvMart.
