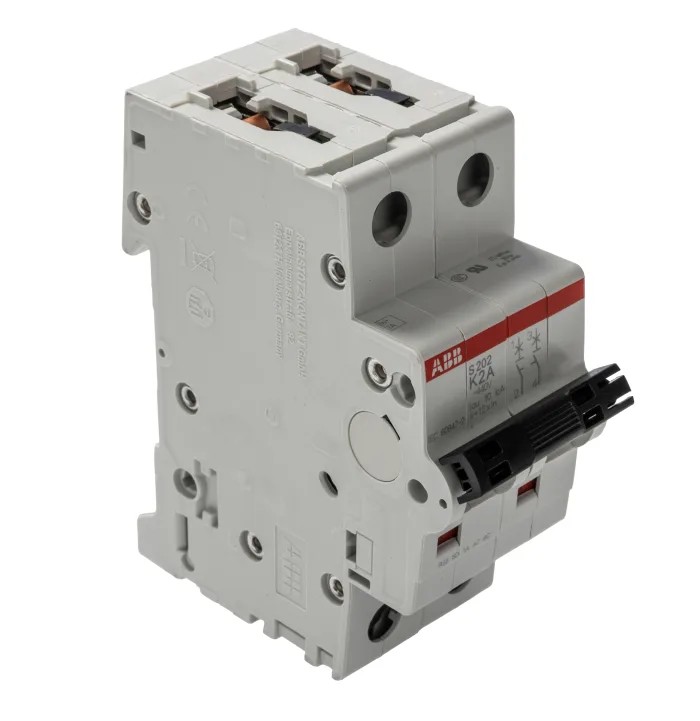

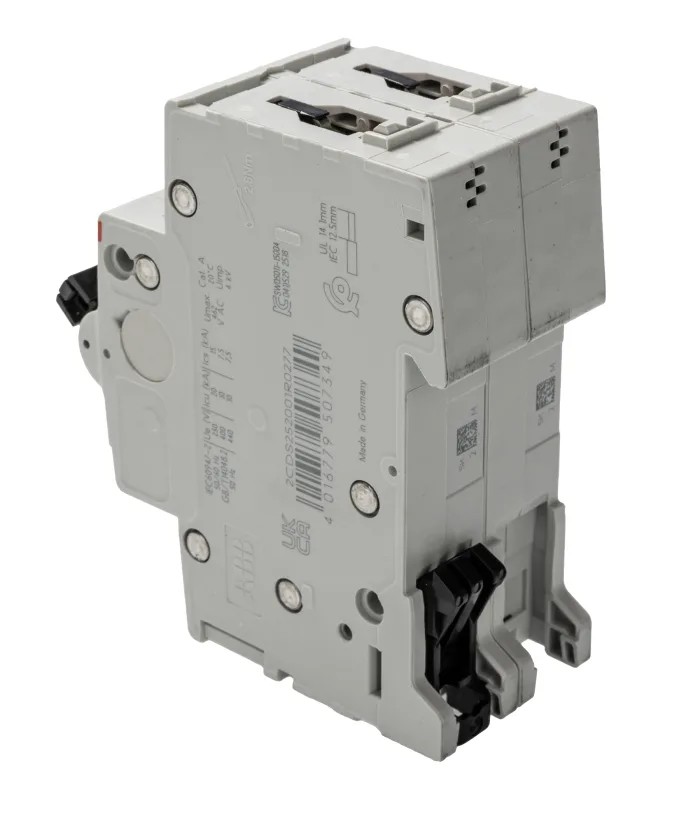

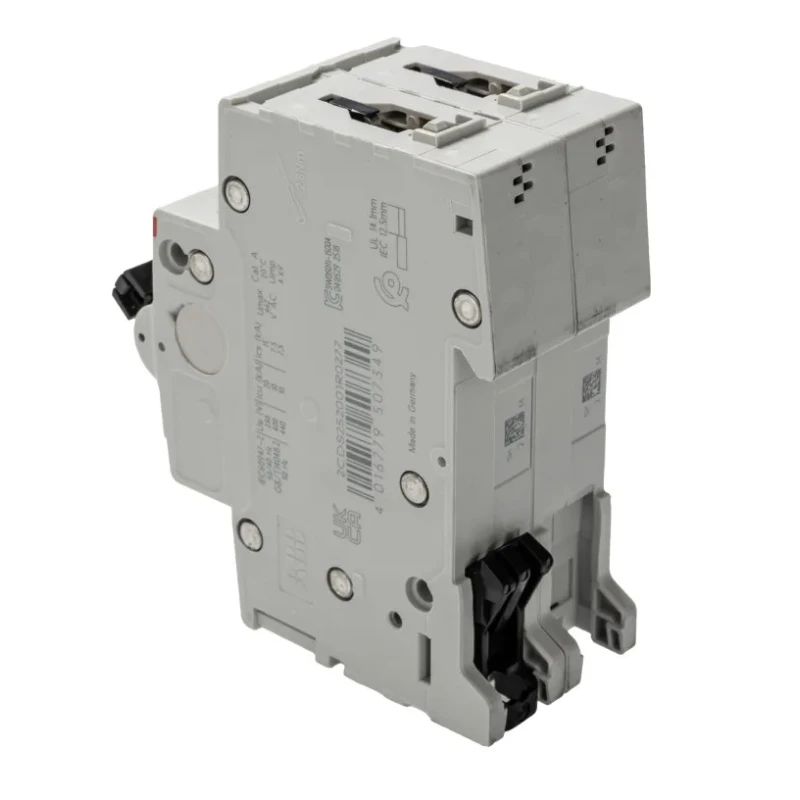

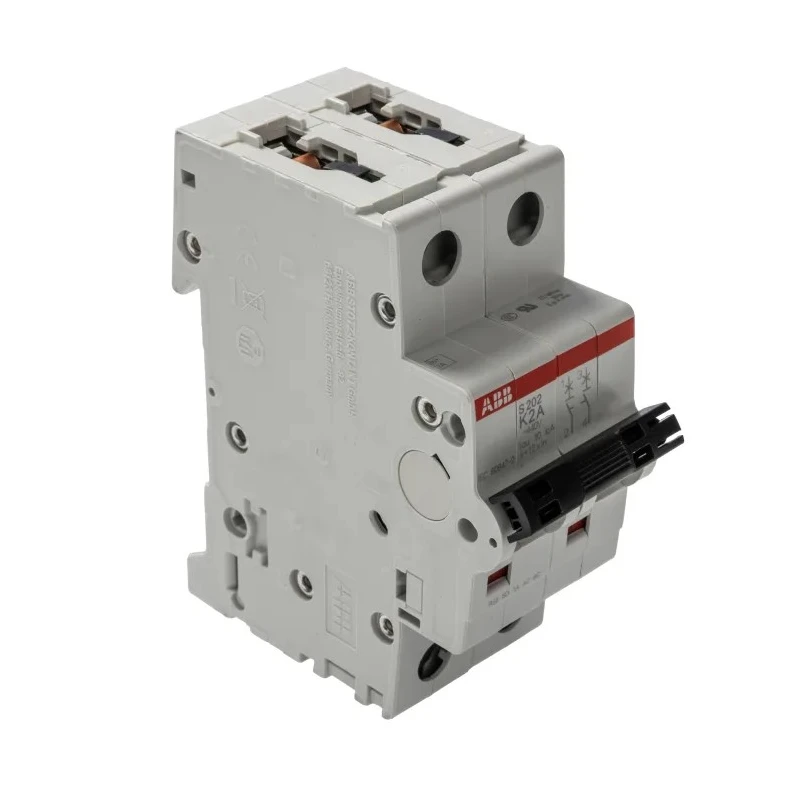

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 2A, Type K, 400V AC, 125V DC, 10kA 2CDS252001R0277 S202-K2

ABB 2CDS252001R0277 S202-K2 Miniature Circuit Breaker from the System Pro M Compact S200 series is engineered for reliable circuit protection in commercial and industrial electrical installations. Rated at 2A current and 2 poles, it supports both AC voltage of up to 400V and DC voltage up to 125V, making it adaptable for a wide range of circuit applications.

This breaker features a Type K tripping characteristic, which provides enhanced protection for circuits experiencing moderate inrush currents, common in industrial motors and transformers. The device incorporates both electromagnetic and thermomagnetic tripping mechanisms to ensure rapid and dependable disconnection during fault conditions.

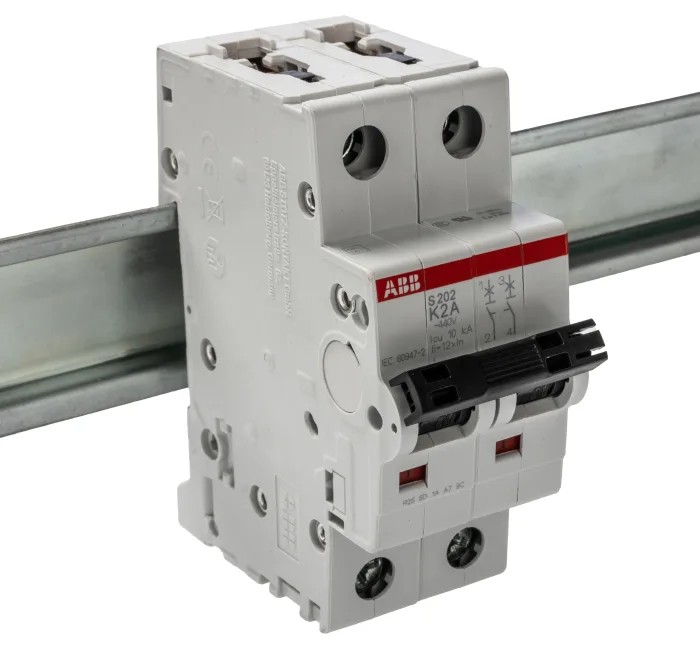

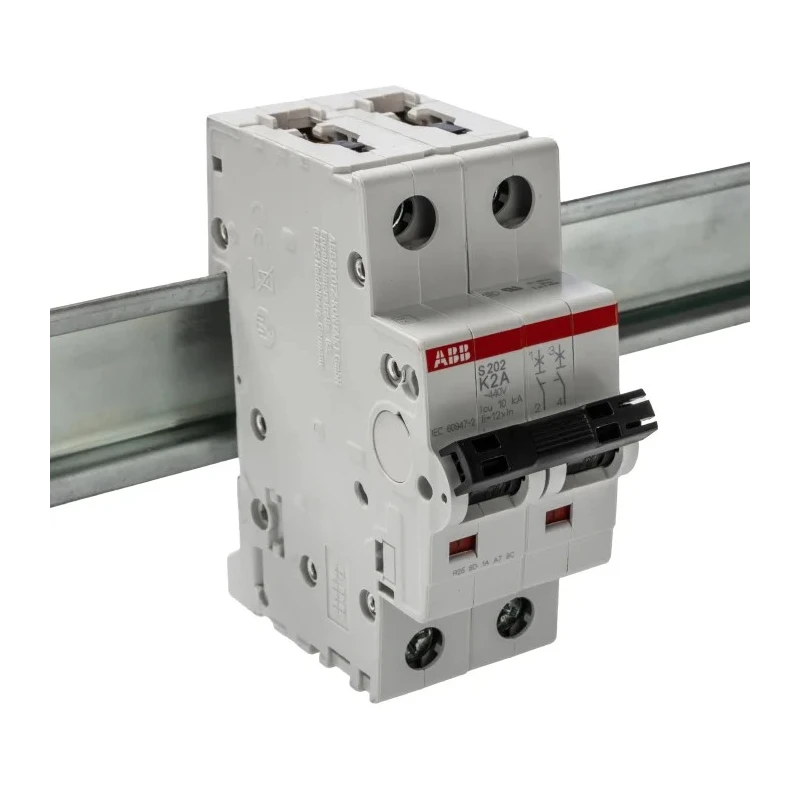

The product is designed for seamless DIN rail mounting, enabling straightforward integration into existing electrical panels and systems. Its compact size - 35mm wide, 69mm in height and depth - makes it space-efficient while maintaining easy access to its screw-type terminals, ensuring robust and secure electrical connections.

Safety and standards compliance are ensured through adherence to IEC/EN 60898-1 and IEC/EN 60947-2 certifications. With rated breaking capacity of 10kA, this miniature circuit breaker protects circuits from short circuits and overloads effectively, reducing risk to equipment and personnel.

The lever reset actuator facilitates easy manual resetting after fault clearance, minimizing downtime in critical industrial and commercial environments. Protected by IP40 and IP20 ingress ratings, the device offers reliable operation in typical industrial and commercial settings.

Manufactured in Germany, the ABB System Pro M Compact S200 Miniature Circuit Breaker exemplifies quality and durability suitable for electrical distribution, automation, and power management applications.

Rated for 400V AC and 125V DC applications providing versatile use. Type K tripping characteristics deliver balanced protection for circuits with inrush currents. Breaking capacity of 10kA ensures safe disconnection of electrical faults.

Designed for DIN rail mounting for easy installation and maintenance. Equipped with screw terminals for secure and reliable electrical connections. Features a lever reset actuator for convenient manual resetting after trips.

Compact dimensions: 35mm width, 69mm height, and 69mm depth. Conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards. IP40 and IP20 rated for protection in various environments. Manufactured in Germany ensuring high-quality engineering standards.

Choose ABB System Pro M Compact S200 Miniature Circuit Breakers for dependable and safe circuit protection across industrial, commercial, and automation systems. Explore more high-quality circuit protection devices from ABB and related product categories on EnvMart.
