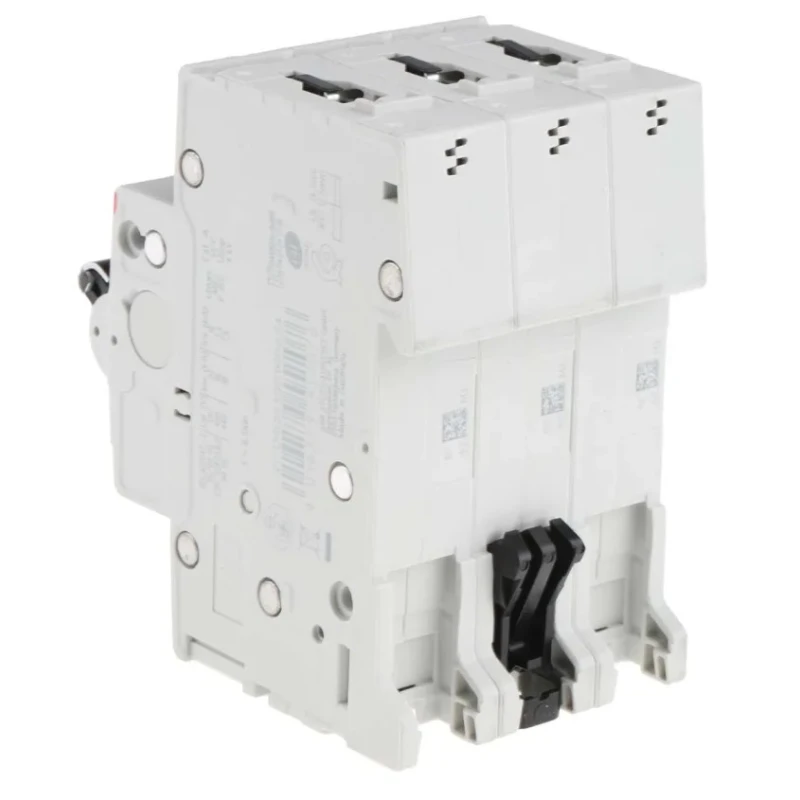

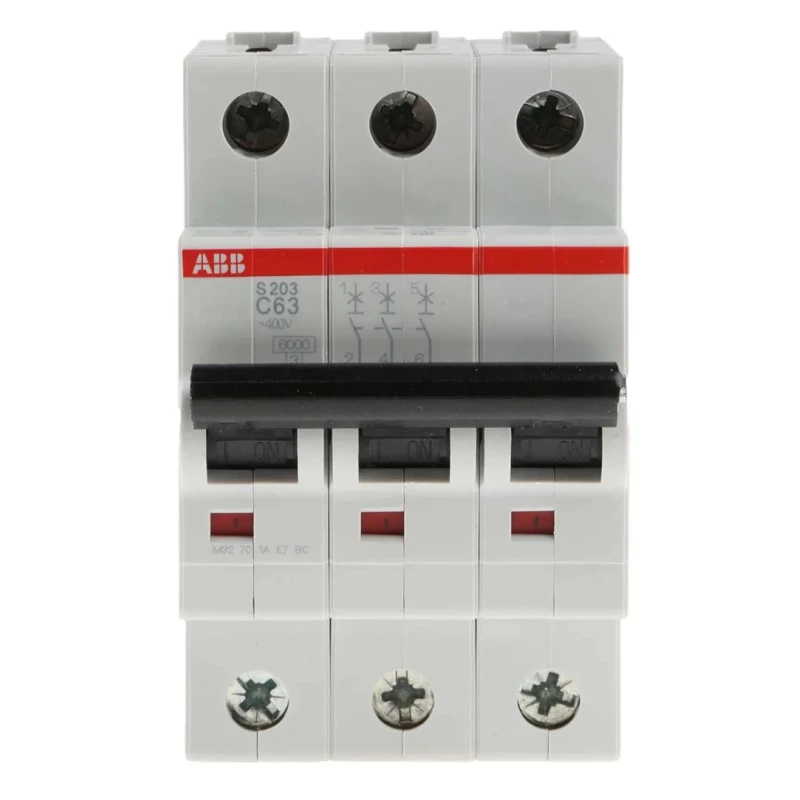

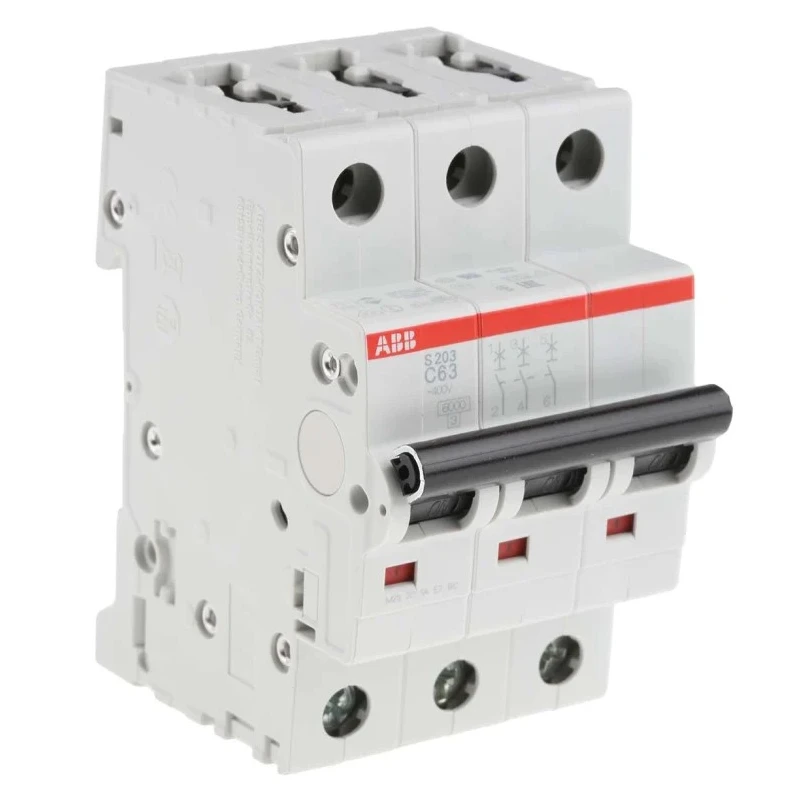

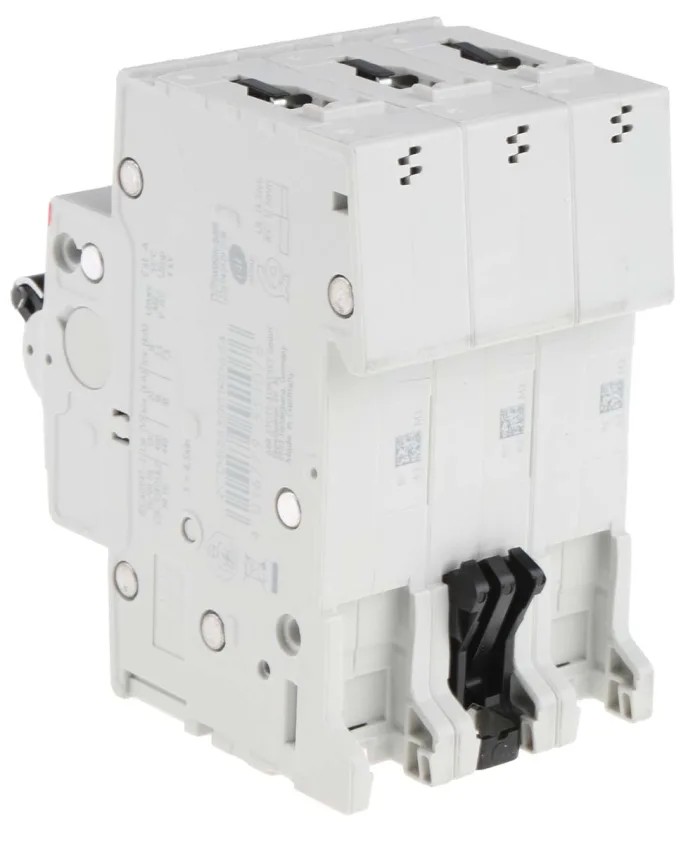

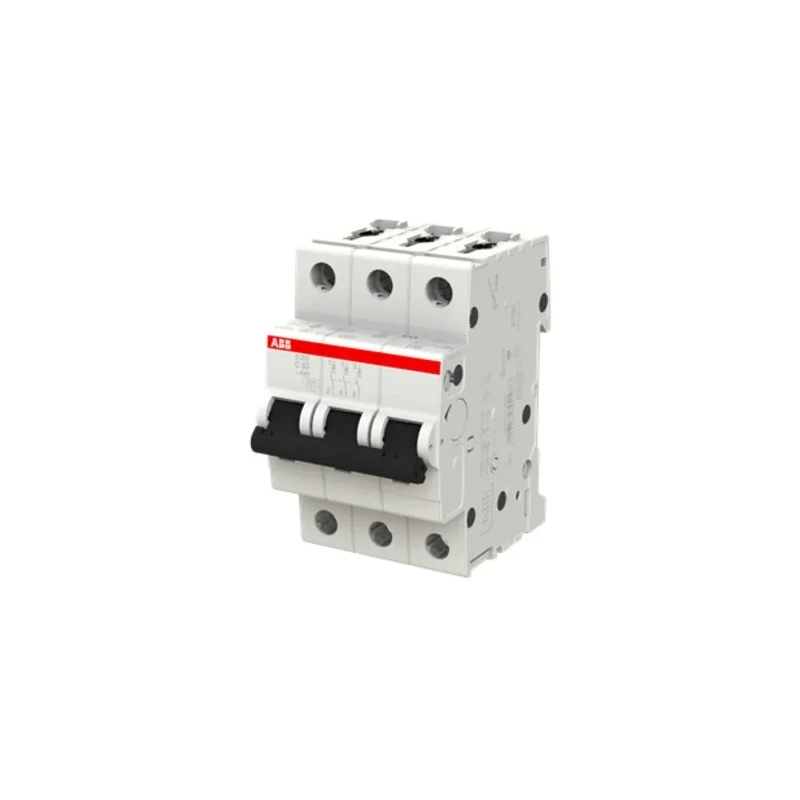

ABB System Pro M Compact S200 Miniature Circuit Breaker 3-Pole 63A Type C 400V AC 12V DC 6kA 2CDS253001R0634 S203-C63

ABB 2CDS253001R0634 S203-C63 System Pro M Compact S200 Miniature Circuit Breaker is a robust electrical protection device designed for low-voltage applications. It safely handles overloads and short circuits using an electromechanical thermal tripping mechanism. This 3-pole breaker supports a current rating of 63A, and features Type-C trip characteristics that trigger instant disconnection at load surges five to ten times the rated current.

The device operates efficiently over a wide temperature range of -25°C to +55°C, suitable for demanding industrial, commercial, and residential environments. The product is DIN rail mountable and secured by rear clip with screw terminal connections, providing installation flexibility. The red and green contact position indicators enable clear visual confirmation of circuit status.

With a breaking capacity of 6kA at 400V AC and a rated DC voltage of 12V, it offers reliable fault interruption conforming to IEC/EN 60898-1 and IEC/EN 60947-2 standards. Its robust design ensures a long service life, boasting an electrical lifespan of 10,000 AC cycles and mechanical endurance of 20,000 cycles. Furthermore, it includes fail-safe bi-directional cylinder-lift terminals that reduce wiring errors, improving operational safety and reliability.

Part of ABB's Better World initiative, this MCB is designed for disassembly, promoting sustainability and reducing environmental impact. It is widely used in supermarkets, offices, hospitality venues, and other industrial or commercial settings requiring dependable electrical safety.

Equipped with thermal tripping mechanism for dependable overload protection. Type-C characteristic ensures instant tripping for loads between five and ten times the rated current. DIN rail mounting with screw terminals for secure and flexible installation.

IP20 and IP40 rated for protection against solid objects and splashing water. Red and green contact position indicators for clear circuit status. Electrical lifespan of 10,000 AC cycles and mechanical durability of 20,000 cycles.

Wide operating temperature range of -25°C to +55°C for harsh environments. Designed for disassembly as part of ABB's Better World sustainability initiative. Compatible with bottom auxiliary contacts to save cabinet space.

Manufactured in Germany ensuring quality and compliance with IEC/EN standards. Explore ABB products and System Pro M Compact S200 series at EnvMart for reliable circuit protection solutions.
