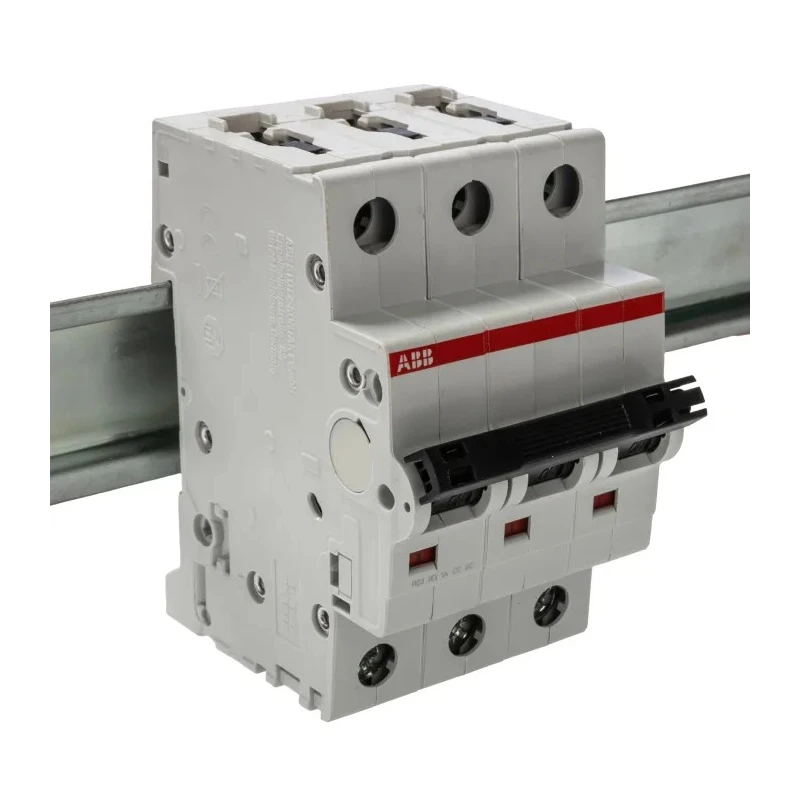

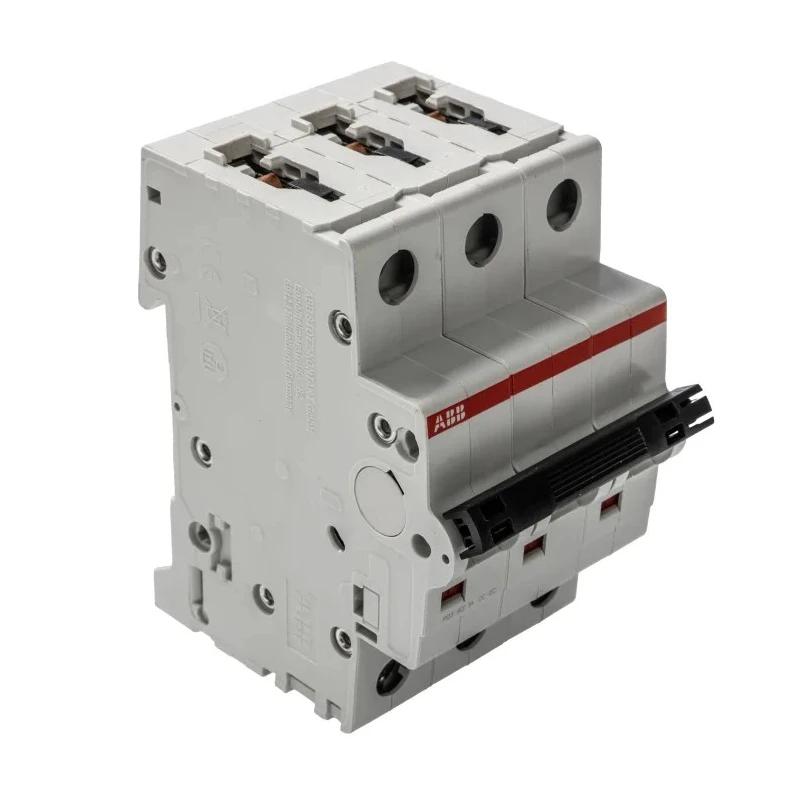

ABB System Pro M Compact S200 Miniature Circuit Breaker, 3-Pole, 50A, Type C, 400V AC, 10 kA 2CDS253001R0504 S203-C50

ABB 2CDS253001R0504 S203-C50 Miniature Circuit Breaker is a robust, 3-pole circuit protection solution designed for commercial and industrial electrical systems operating at 400V AC. With a 50A current rating and type C tripping characteristics, this device is engineered to handle high inrush currents typically found in various electrical equipment.

The breaker utilizes thermomagnetic and electromagnetic tripping mechanisms, enabling swift disconnection under overload or short-circuit conditions, thereby preventing damage and enhancing operational safety. Its DIN rail mounting design facilitates convenient integration into electrical panels and switchboards.

Secure screw terminal contacts ensure reliable electrical connectivity while maintaining ease of installation. The unit offers a breaking capacity of 10 kA, making it suitable for a wide range of industrial and commercial applications.

Compact in size with dimensions of 69mm height, 69mm depth, and 52.5mm width, it efficiently fits into panel boards without occupying excessive space. The device conforms to IEC/EN 60947-2 and IEC/EN 60898-1 standards, confirming its compliance with international safety and performance requirements.

Additional features include IP40 and IP20 protection ratings, providing defense against dust and solid objects. The reset actuator is lever-style, ensuring ease of use during circuit reset operations.

Manufactured in Germany, this ABB System Pro M Compact S200 series MCB combines quality, safety, and functionality, making it an ideal choice for protecting industrial machinery, automation systems, and commercial electrical distribution networks.

Equipped with thermomagnetic and electromagnetic tripping mechanisms for reliable circuit protection. Designed for DIN rail mounting to enable easy installation in electrical panels. Screw terminal contacts ensure secure and stable electrical connections.

Offers a breaking capacity of 10 kA for enhanced safety during short circuits. Complies with IEC/EN 60947-2 and IEC/EN 60898-1 standards for industrial and commercial applications. Compact dimensions with height and depth both at 69mm and width of 52.5mm, suitable for efficient space management.

IP40 and IP20 rated to provide adequate protection against dust and solid particles. Includes a lever-type reset actuator for quick and user-friendly operation. Manufactured in Germany ensuring high-quality craftsmanship.

This product is part of the industry-recognized ABB System Pro M Compact S200 series, trusted for circuit management and protection in diverse electrical installations. Explore related Miniature Circuit Breakers and electrical components for comprehensive panel configurations at EnvMart.
