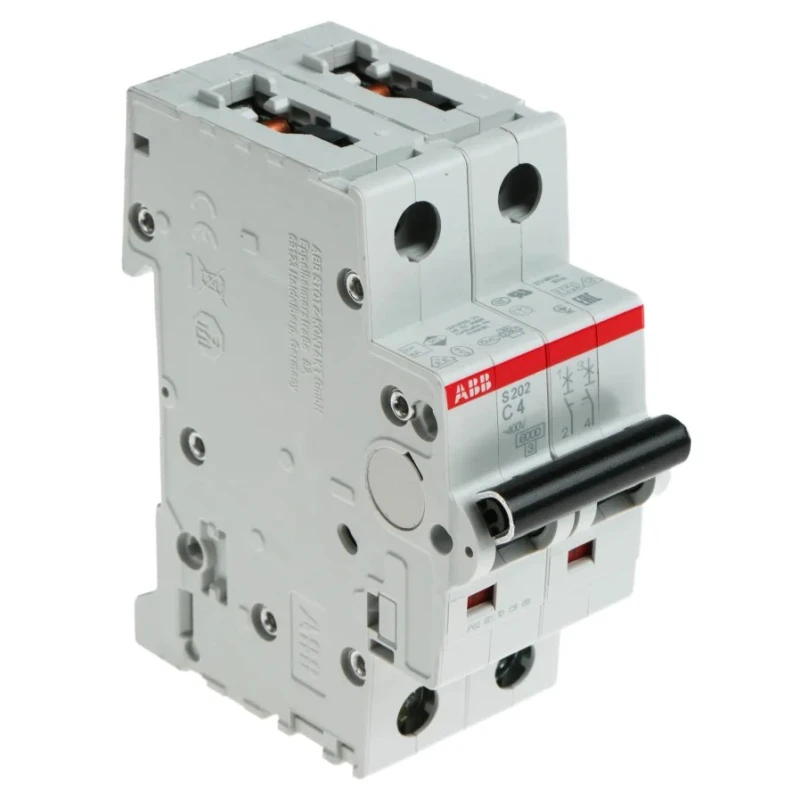

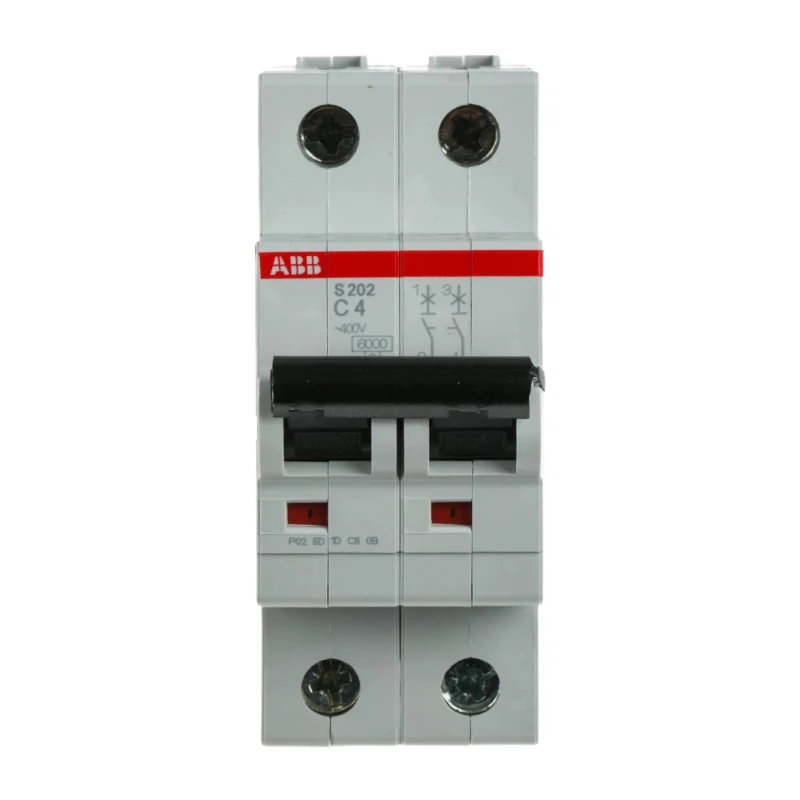

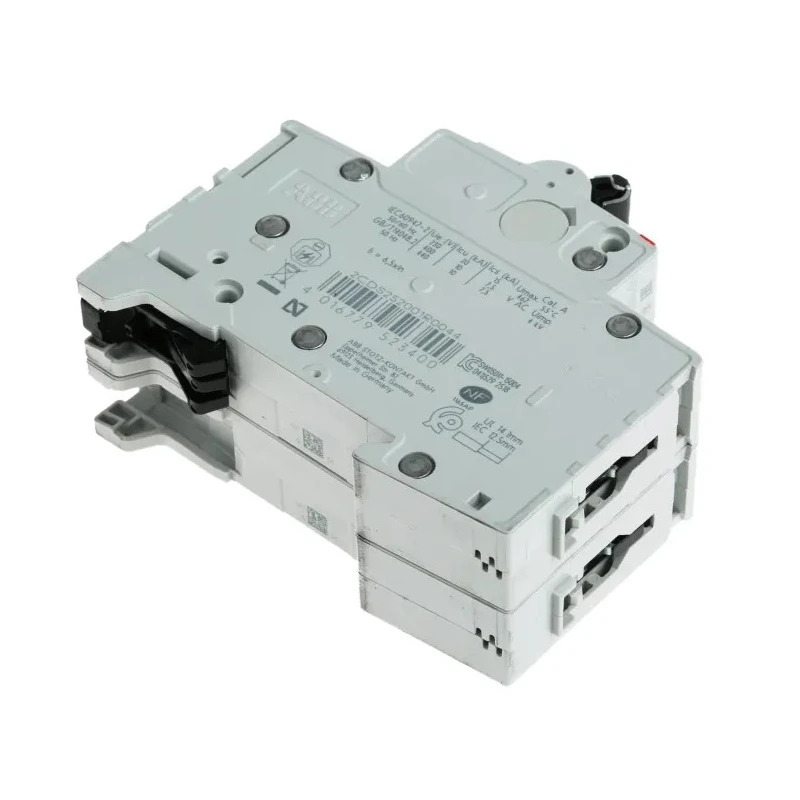

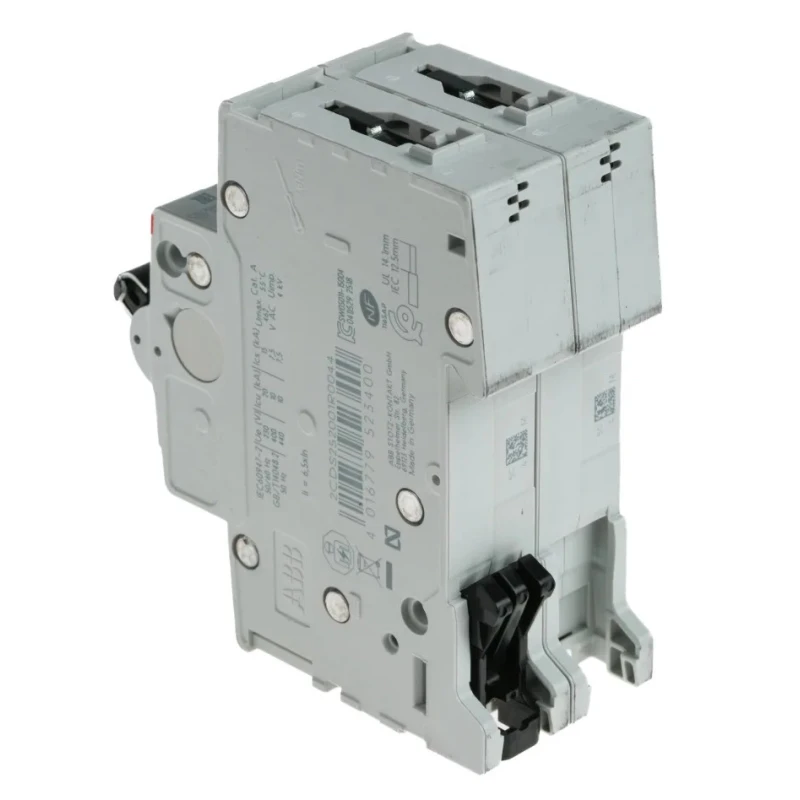

ABB Miniature Circuit Breaker 2-Pole 4A Type C 400V AC 6kA Breaking Capacity 2CDS252001R0044 S202-C4
Specifications
| Country of Origin | Germany |
|---|---|
| Range | System Pro M Compact |
| Brand | ABB |
| Height | 88mm |
| Model | 2CDS252001R0044 S202-C4 |
| Depth | 69mm |
| IP Rating | IP20, IP40 |
| Width | 35mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | S200 |
| Terminal type | Screw |
| Breaking Capacity | 6kA |
| Number of Poles | 2 |
| Standards/Approvals | IEC/EN 60898-1, IEC/EN 60947-2 |
| Rated AC Voltage | 400V ac |
| Tripping Characteristics | Type C |
| Better World Claim | Designed for Disassembly |
| Tripping Mechanism | Thermal |
Key Features
- Rated for 400V AC voltage and 6 kA breaking capacity.
- Includes thermal tripping mechanism for reliable safeguarding.
- Compact dimensions of 88mm height, 35mm width, and 69mm depth fit tight spaces.
- Suitable for DIN rail mounting for easy installation.
- Contact position indicators show operational status clearly.
- Designed for harsh conditions with operating temperature from -25°C to +55°C.
- Conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards.
- Ideal for industrial, commercial, and domestic electrical installations.
Product Description
ABB 2CDS252001R0044 S202-C4 Miniature Circuit Breaker is a robust 2-pole device rated at 4A with Type C tripping characteristic, designed to operate at 400V AC with a breaking capacity of 6 kA. Its thermal tripping mechanism ensures effective protection against overcurrent and short circuits while preventing unnecessary downtime. The compact form factor measuring 88mm high, 35mm wide, and 69mm deep allows it to fit into distribution boards and control panels where space may be limited.
This MCB features easy DIN rail mounting and screw-type terminals for secure and straightforward wiring. Contact indicators with green and red coloring clearly show on/off status, enhancing safety for operational personnel. The product is engineered to operate reliably in challenging environments, with an operating temperature range from -25°C to +55°C, and carries IP20 and IP40 ingress protection ratings assuring resilience against solids and some moisture.
Manufactured in Germany, the device meets international standards IEC/EN 60898-1 and IEC/EN 60947-2, providing quality assurance for industrial, commercial, and residential electrical installations. Its type-C tripping curve is suitable for applications with moderate inductive loads, tripping instantaneously between 5 and 10 times the rated current.
Applications for this MCB include food and beverage processing plants, industrial machinery protection, transport systems, and domestic electrical networks. The breaker’s compact and reliable design helps maintain electrical safety and operational continuity across these sectors.
Rated for 400V AC voltage and 6 kA breaking capacity. Includes thermal tripping mechanism for reliable protection. Compact size for space-efficient installation. DIN rail mounting with screw terminals. Clear contact position indicators enhance safety.
Operates in harsh conditions (-25°C to +55°C). Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards. IP20 and IP40 rated for ingress protection. Suitable for industrial, commercial, and domestic use. Explore more products in the Miniature Circuit Breaker category at EnvMart for reliable electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a breaking capacity of 6 kA, making it suitable for protecting electrical circuits from overcurrent and short circuits.
It is rated for 400V AC, allowing it to be used in various electrical installations.
The circuit breaker has a height of 88mm, a width of 35mm, and a depth of 69mm, allowing for compact installation in tight spaces.
This model is designed for DIN rail mounting, which facilitates easy installation in electrical distribution boards.
It operates effectively in temperatures ranging from -25°C to +55°C, making it suitable for harsh environmental conditions.
It features Type C tripping characteristics, which are suitable for applications with moderate inductive loads.
This model uses screw-type terminals for secure and straightforward wiring connections.
It conforms to IEC/EN 60898-1 and IEC/EN 60947-2 standards, ensuring quality and safety for electrical installations.
The current rating for this miniature circuit breaker is 4A, suitable for various applications in electrical systems.
It carries IP20 and IP40 ingress protection ratings, providing resilience against solids and some moisture.
This unit is part of the S200 series, which is known for its compact and reliable design in electrical protection.
It is manufactured in Germany, ensuring adherence to high manufacturing standards.
