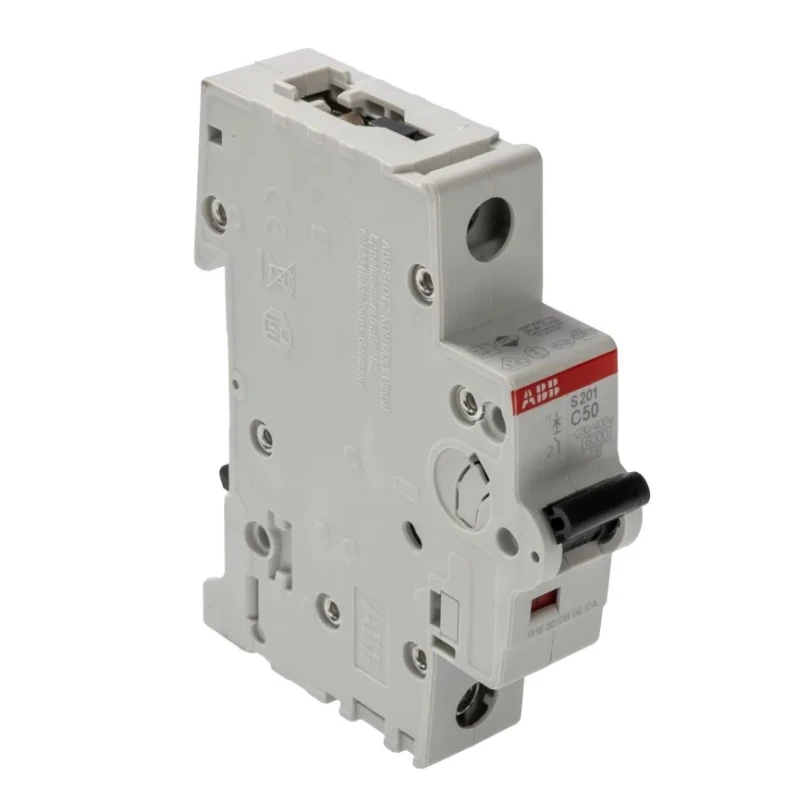

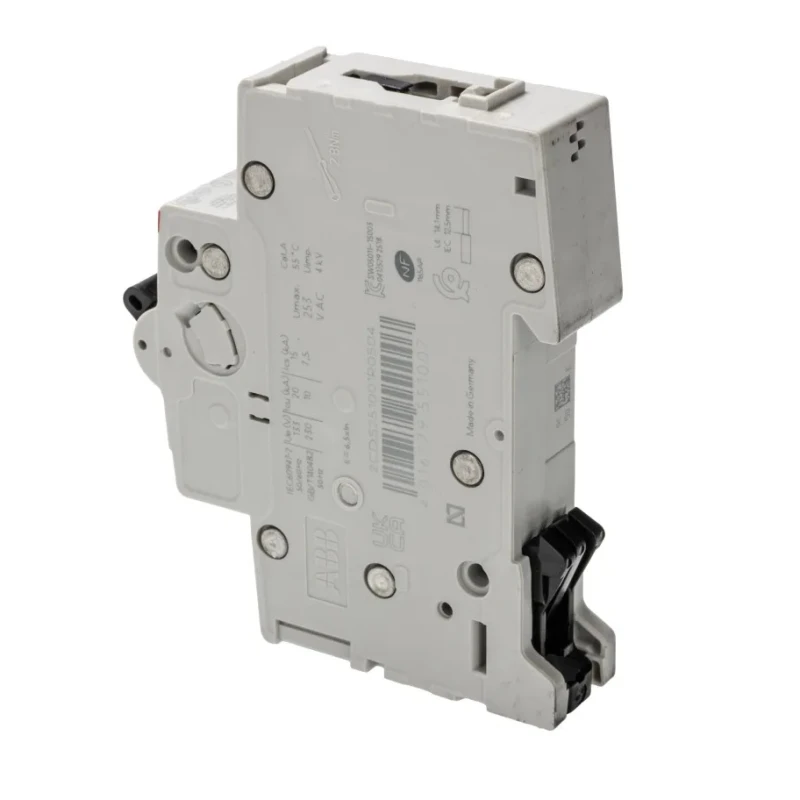

ABB System Pro M Compact S200 Miniature Circuit Breaker 1-Pole 50A Type C 230V AC 72V DC 10kA 2CDS251001R0504 S201-C50

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker 1-Pole 50A Type C 230V AC 72V DC 10kA 2CDS251001R0504 S201-C50



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	69mm
Model	2CDS251001R0504 S201-C50
Depth	69mm
IP Rating	IP20, IP40
Width	17.5mm
Mount Type	DIN Rail
Current Rating	50A
Series	S200
Terminal type	Screw
Breaking Capacity	10kA
Number of Poles	1
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	230V ac
Rated DC Voltage	72V dc
Tripping Characteristics	Type C
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromagnetic, Thermomagnetic
Reset Actuator Type	Lever

Key Features

Designed for DIN rail mounting to simplify installation in electrical panels.
Type C tripping characteristic suited for inductive loads and general applications.
Rated for 230V AC and 72V DC voltage operation ensuring versatile usage.
Breaking capacity of 10kA provides protection against high fault currents.
Features screw terminals to accommodate various wiring sizes securely.
Reset actuator type is a lever for easy operation and reset after trips.
Compact dimensions of 17.5mm width, 69mm height, and 69mm depth for efficient panel space utilization.

Product Description

ABB 2CDS251001R0504 S201-C50 System Pro M Compact S200 Miniature Circuit Breaker is a high-quality 1-pole device rated for 50 amps, designed to protect electrical circuits from overload and short circuits in industrial, commercial, and automation applications. Operating at a rated AC voltage of 230V and rated DC voltage of 72V, this MCB ensures robust fault protection with a breaking capacity of 10kA.

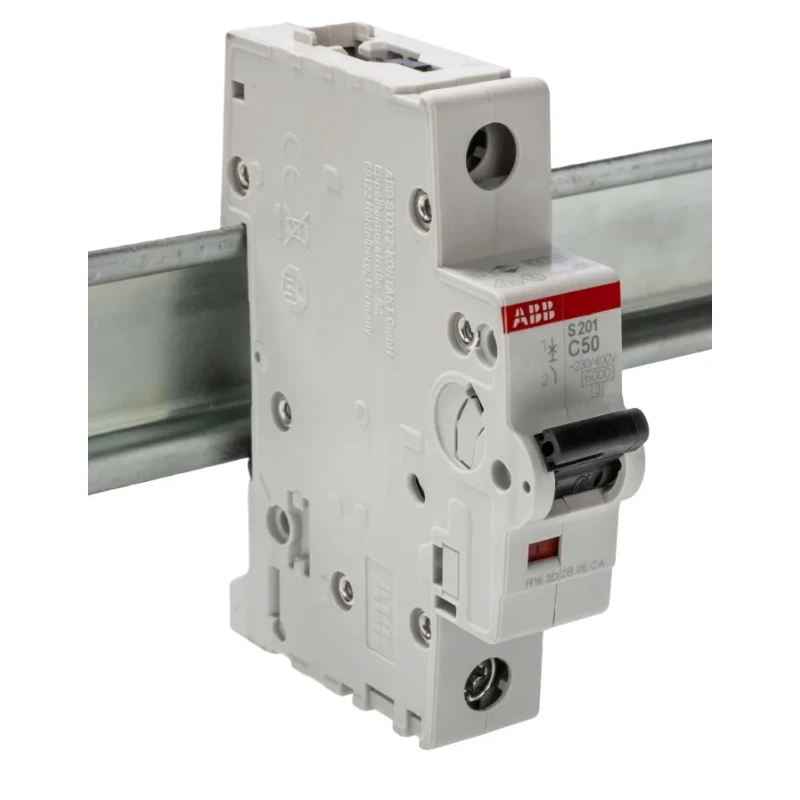

This compact circuit breaker supports DIN rail mounting, facilitating quick and secure installation in electrical distribution panels. Its type C tripping characteristic is engineered for inductive loads common in machinery and motor circuits, providing sensitive yet reliable operation.

The device features screw terminals for flexible wiring solutions accommodating different conductor sizes, enhancing adaptability in various electrical installations. The lever reset actuator allows straightforward manual resetting, reducing downtime during tripping events.

The compact dimensions of 17.5mm width, 69mm height, and 69mm depth ensure space-efficient arrangement in electrical enclosures. The MCB complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards, affirming international quality and safety benchmarks.

Designed in Germany, this miniature circuit breaker is built for durability and sustainability, featuring a 'Better World' claim for designed disassembly, underlining environmental responsibility.

DIN rail mounting optimizes installation and system integration. Type C tripping characteristic suitable for motor and inductive load protection. Breaking capacity of 10kA safeguards equipment against severe fault currents.

Screw terminal type ensures secure and versatile wiring connections. Lever reset actuator allows easy reset after fault clearance. Compact dimensions save panel space without compromising performance. Standards IEC/EN 60898-1, IEC/EN 60947-2 compliance guarantees quality and safety.

This Miniature Circuit Breaker is ideal for use in commercial buildings, industrial machinery protection, automation systems, and electrical distribution panels, ensuring operational safety and continuity. Browse EnvMart’s Electronics & Electricals category for additional circuit protection solutions and ABB products.
