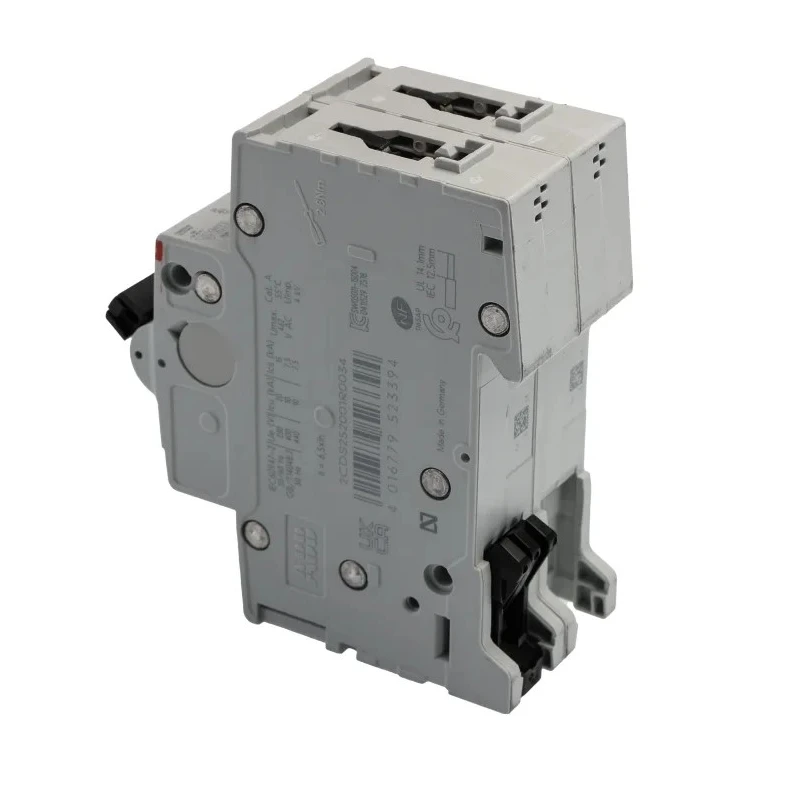

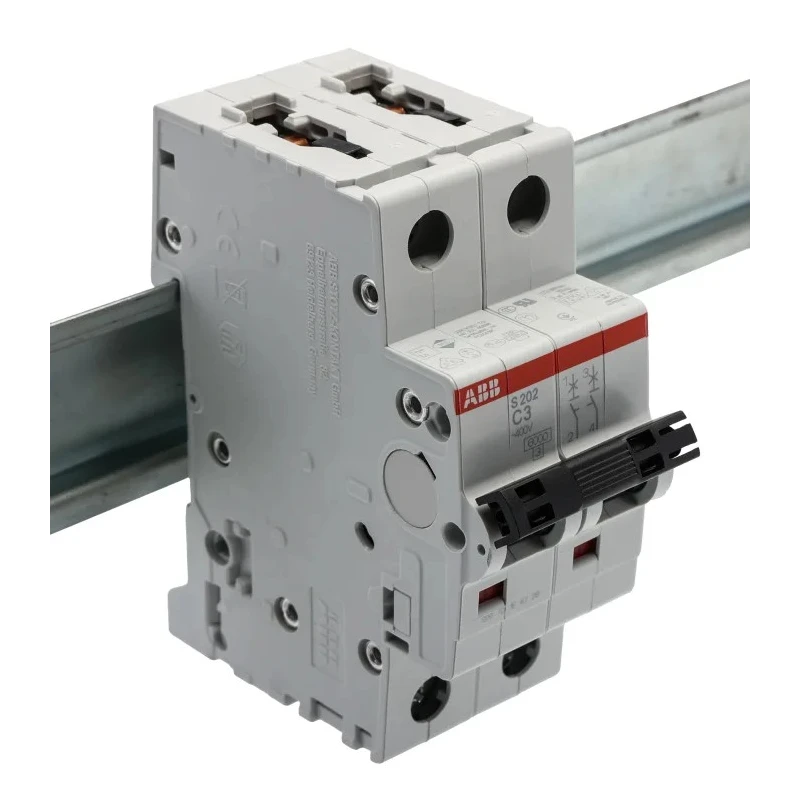

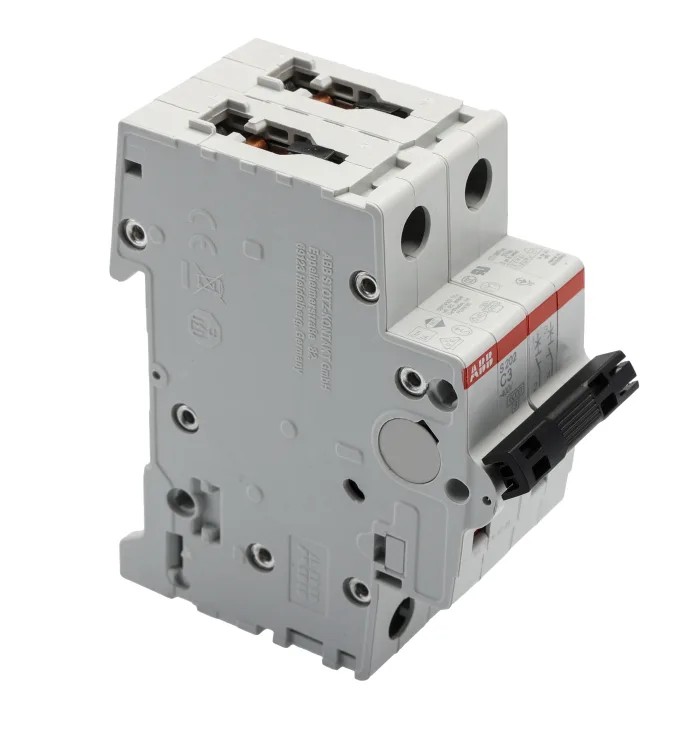

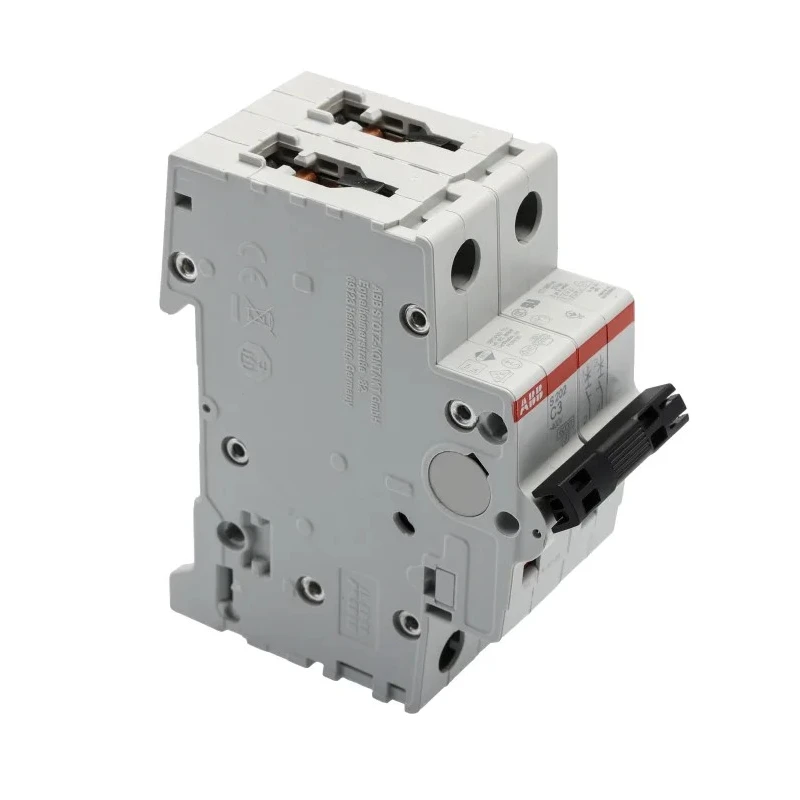

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 3A, Type C, 440V AC, 125V DC, 6 kA 2CDS252001R0034 S202-C3

Free Delivery in India | Lowest Global Shipping Charges

ABB System Pro M Compact S200 Miniature Circuit Breaker, 2-Pole, 3A, Type C, 440V AC, 125V DC, 6 kA 2CDS252001R0034 S202-C3



Category Miniature Circuit Breaker Brand ABB Condition New

Specifications

Country of Origin	Germany
Range	System Pro M Compact
Brand	ABB
Height	88mm
Model	2CDS252001R0034 S202-C3
Depth	69mm
IP Rating	IP40, IP20
Width	35mm
Mount Type	DIN Rail
Current Rating	3A
Series	S200
Terminal type	Screw
Breaking Capacity	6kA
Number of Poles	2
Standards/Approvals	IEC/EN 60898-1, IEC/EN 60947-2
Rated AC Voltage	440V ac
Rated DC Voltage	125V dc
Tripping Characteristics	Type C
Better World Claim	Designed for Disassembly
Tripping Mechanism	Electromechanic, Thermal

Key Features

Equipped with Type C tripping characteristic for moderate overload protection.
Rated for 440V AC and 125V DC supply voltages.
Offers a breaking capacity of 6 kA to safely interrupt fault currents.
Designed for DIN rail mounting with screw terminal connections.
Features electromechanical and thermal tripping mechanisms for dual protection.
Constructed with an IP40 and IP20 rated housing for protection against solid objects and touch.
Complies with IEC/EN 60898-1 and IEC/EN 60947-2 standards ensuring quality and safety.
Designed for durability with mechanical endurance up to 20,000 cycles.

Product Description

ABB 2CDS252001R0034 S202-C3 Miniature Circuit Breaker is a dual-pole protection device rated at 3 amperes with a Type C tripping characteristic, capable of operating safely under both AC and DC voltages - 440 volts AC and 125 volts DC respectively. This device is part of the System Pro M Compact S200 series, combining electromechanical and thermal tripping mechanisms to provide reliable overload and short-circuit protection in a wide array of industrial and commercial electrical installations.

With a breaking capacity of 6 kiloamperes, this MCB ensures effective interruption of fault currents, protecting wiring and connected equipment while minimizing downtime. Its compact design, measuring 69mm in depth, 35mm in width and 88mm in height, maximizes panel space efficiency, and it mounts easily on standard DIN rails using screw terminal connections for safe and secure wiring. The robust housing is rated with IP40 and IP20, offering protection against solid objects and accidental contact to enhance operator safety.

Engineered according to IEC/EN 60898-1 and IEC/EN 60947-2 standards, the device meets rigorous international safety and performance criteria. It also features a mechanical endurance of up to 20,000 cycles, ensuring long service life even in demanding operating conditions. Suitable for harsh industrial environments, it resists vibration and shock to maintain reliable operation.

This Miniature Circuit Breaker is ideal for applications in pharmaceutical manufacturing, automotive production, pulp and paper mills, and public infrastructure, delivering dependable electrical system protection across diverse industrial sectors. The environmentally conscious design utilizes recyclable thermoplastic materials free of halogens, supporting sustainability efforts within electrical installations.

Offers dual protection with electromechanical and thermal tripping mechanisms. Suitable for AC and DC voltage applications with high breaking capacity. Compact footprint and DIN rail mount for easy installation. Conforms to international IEC/EN standards for safety and quality.

Manufactured in Germany with durable and recyclable materials. Explore more MCB products and solutions at EnvMart for reliable circuit protection needs in industrial and commercial environments.
