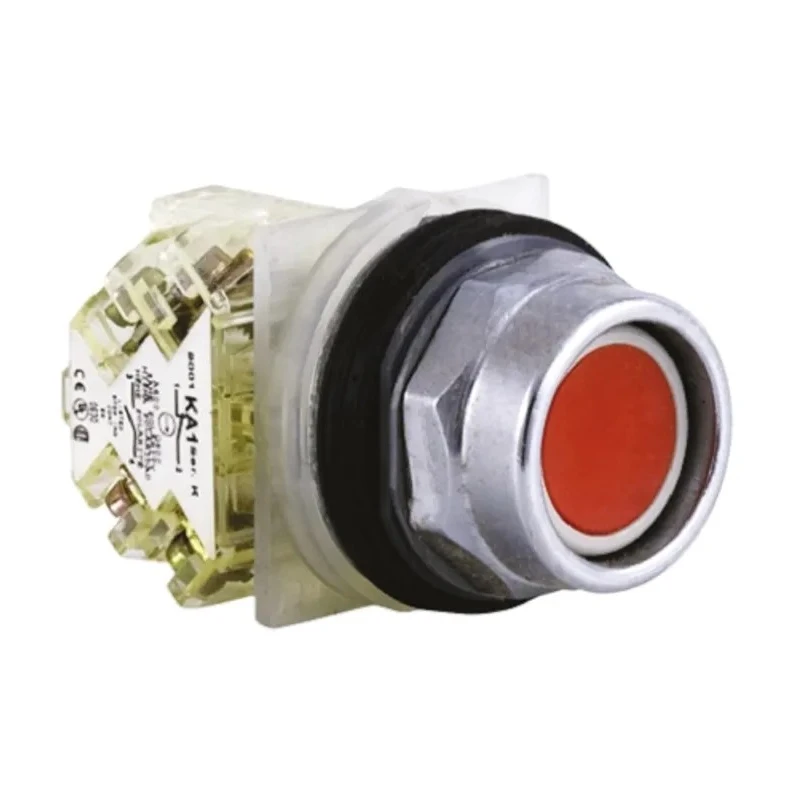

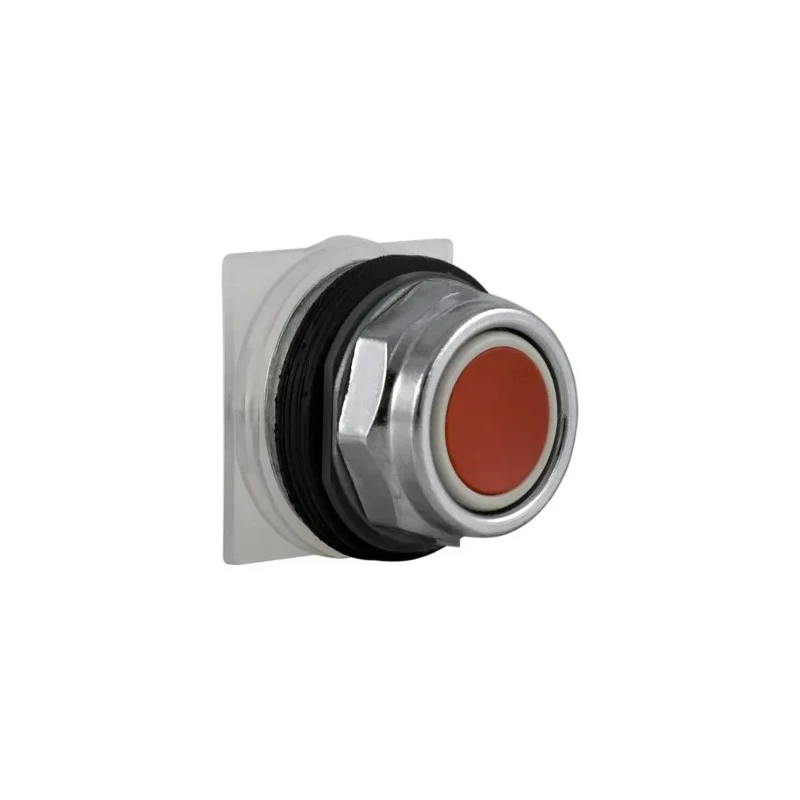

Schneider Electric Harmony 9001K Series Red Momentary Push Button Head 30mm Cutout IP66 9001KR1R
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Model | 9001KR1R |
| IP Rating | IP66 |
| Series | Harmony 9001K |
| Standards/Approvals | RoHS, REACH, WEEE, EU RoHS |
| Cutout Diameter | 30mm |
| Push Button Actuation | Momentary |
| Push Button Material | Metal |
| Push Button Colour | Red |
| Push Button Shape | Round |
| Push Button Marking | Unmarked |
Key Features
- Constructed with durable chromium-plated metal and zamak-based fixing collar.
- Flush profile design with interchangeable color profiles for function identification.
- Slow-break contact with easy adjustment via standard cross-slotted screw head.
- Rated for 5,000,000 mechanical durability cycles ensuring consistent performance.
- Operational temperature range from -25 to 70 degrees Celsius.
- Protection rating IP66 against dust and high-pressure water jets as per IEC 60529.
- Compliance with NEMA 1, 2, 3, 3R, 4, 12, and 13 standards for indoor and outdoor use.
- Mechanical and electrical standards conforming to EN/IEC 60947-5-1 and UL 508.
Product Description
Schneider Electric 9001KR1R Harmony 9001K Series red momentary push button head is designed for demanding industrial environments requiring reliable control and signaling solutions.
Featuring a robust chromium-plated metal construction with a zamak fixing collar, this push button is engineered for durability and ease of maintenance. Its flush profile style and interchangeable colored profiles allow clear functional identification and flexible integration.
This push button includes a slow-break contact operable from any position and easily adjustable with a standard cross-slotted screw head. It is rated for an exceptional 5 million mechanical cycles, ensuring long-lasting high performance. It operates reliably across temperatures from minus 25 °C up to 70 °C.
With an IP66 rating conforming to IEC 60529, this unit provides complete protection against dust ingress and resistance to high-pressure water jets from any direction, making it suitable for harsh indoor and outdoor environments. It complies with multiple NEMA protection classes (1, 2, 3, 3R, 4, 12, 13) for versatile use cases.
Electrical and mechanical compliance includes standards EN/IEC 60947-5-1 and UL 508, with a 10 A cartridge fuse short circuit protection. Shock resistance is rated at 50 gn and vibration resistance at 7 gn, meeting IEC 60068-2-27 and IEC 60068-2-6 requirements respectively.
Durable chromium-plated metal construction with zamak collar. Flush profile design with color-coded interchangeable heads. Slow-break contact adjustable via cross-slotted screw. Five million mechanical durability cycles rated.
Wide operating temperature range of -25 to 70 °C. IP66 dust and water resistance protection. Conforms to multiple NEMA protection standards. Electrical compliance with EN/IEC 60947-5-1 and UL 508. Shock and vibration resistance compliant with IEC standards.
This push button is widely used in industrial control stations, automotive manufacturing lines, factory automation, and commercial warehouses, particularly in emergency stop and signaling applications.
Explore the Schneider Electric Harmony 9001K series range on EnvMart for high-quality push button solutions.
Explore more products in our Push Button Heads category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates reliably within a temperature range of -25 to 70 degrees Celsius.
It has an IP66 rating, providing protection against dust ingress and high-pressure water jets, as per IEC 60529.
It is rated for 5,000,000 mechanical durability cycles, ensuring consistent performance over time.
The push button head is constructed from durable chromium-plated metal with a zamak-based fixing collar.
It complies with RoHS, REACH, WEEE, EU RoHS standards, as well as EN/IEC 60947-5-1 and UL 508 for electrical and mechanical safety.
This unit features momentary push button actuation, which allows it to return to its original position after being pressed.
The required cutout diameter for this push button head is 30mm.
It has a shock resistance rating of 50 gn, compliant with IEC 60068-2-27 standards.
The push button is red and has a round shape, designed for clear identification and functional use.
It is widely used in industrial control stations, automotive manufacturing lines, factory automation, and emergency stop applications.
The vibration resistance is rated at 7 gn, meeting IEC 60068-2-6 requirements.
This model is unmarked, allowing for customizable labeling based on specific applications or functions.
