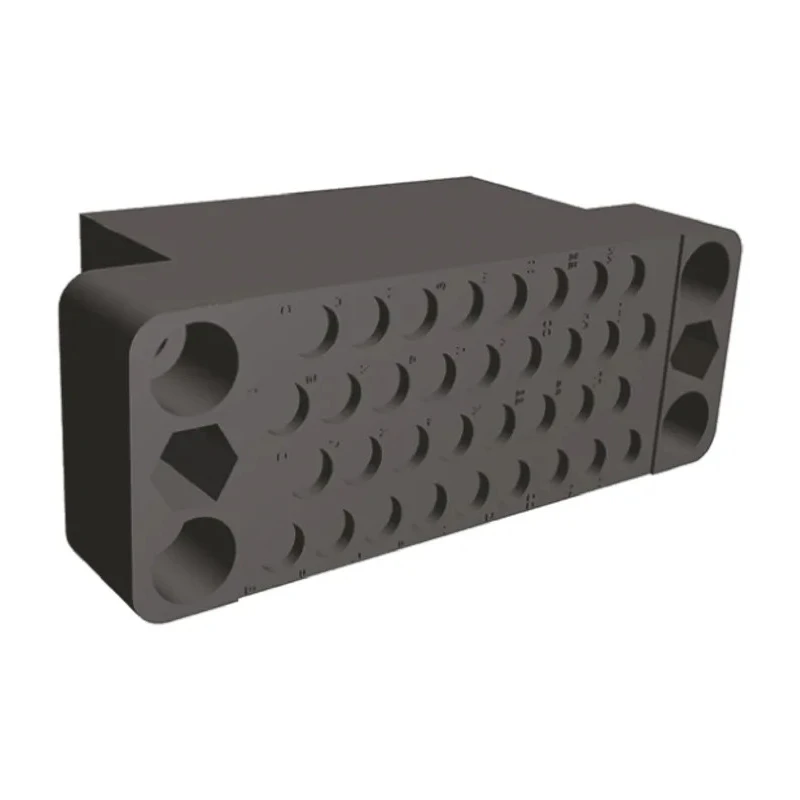

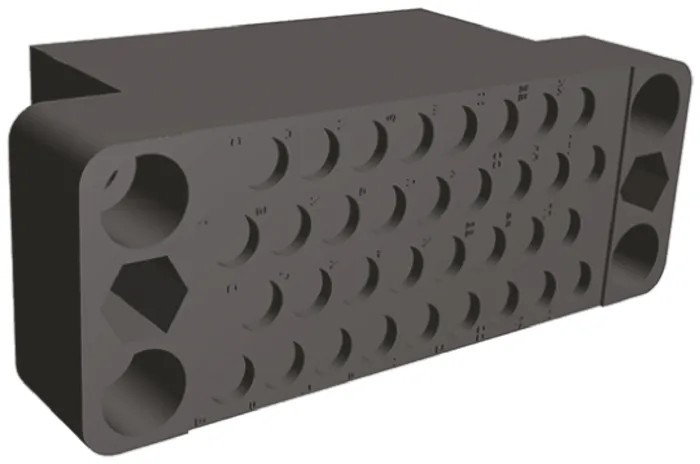

TE Connectivity M Series Straight Panel Housing 34-Contact 4 Row 3.81 mm Pitch Solder 1-201357-1

TE Connectivity 1-201357-1 M Series Straight Panel Housing is a high-quality electronic connector housing designed for PCB sockets. It features 34 contacts arranged in 4 rows with a precise 3.81 mm pitch, facilitating robust wire-to-board connections. The housing is manufactured from phenolic glass fiber, ensuring durability and mechanical strength.

This panel mount housing supports solder termination and is constructed to handle electrical currents up to 13A and voltages up to 12V, making it suitable for demanding electronic applications. It employs female contacts made of tin and plated with tin to ensure excellent conductivity and corrosion resistance.

The housing operates reliably across a wide temperature range from -55°C to 105°C, making it adaptable for various industrial, laboratory, and manufacturing conditions. It is compatible with Multimate Type II, Type III+, and Subminiature COAXICON crimp-type contacts, including solder-type and posted contacts, allowing flexible assembly options. All contacts are interchangeable within the same cavity to facilitate maintenance and custom configurations.

This straight panel housing from the M Series supports seamless mating with corresponding connectors and posted connectors of similar sizes. It is ideal for electronics manufacturing, test and measurement equipment, commercial electronic devices, and industrial controls. The connector improves assembly efficiency and ensures dependable electrical connectivity in critical systems.

The housing’s phenolic construction provides mechanical strength and thermal stability. Its solder termination type enables secure and stable electrical connections. 34-contact capacity arranged in 4 rows allows intricate circuit designs.

3.81 mm pitch spacing meets established industrial standards for PCB connectors. Wide operating temperature range ensures reliability in harsh environments. Compatible with a range of Multimate contact types for design flexibility.

Connector system supports wire-to-board interface for streamlined PCB assembly. Panel mount housing orientation simplifies mounting and integration into equipment. Explore more TE Connectivity products and Connector Housings at EnvMart for your electronic component needs.
