RS PRO Illuminated Momentary Push Button Switch Panel Mount 16 mm Cutout IP65 250 V ac 745-2467
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Model | 745-2467 |
| IP Rating | IP65 |
| Mount Type | Panel |
| Maximum Operating Temperature | 55°C |
| Panel Cutout Size | 16 mm |
| Terminal type | Tab |
| Standards/Approvals | CE, cUL, UL, VDE |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Style | High |
| Switch Contact Current | 5A |
| Contact AC Voltage | 250V ac |
Key Features
- Constructed for quick and easy assembly with waterproof sealing to IP65.
- High actuator style in black color enhances usability and visibility.
- Operates momentarily with illuminated feature for clear indication.
- Suitable for panels of thickness between 0.5 and 5 mm.
- Max operating temperature up to 55°C ensuring robustness in varied environments.
- Contact rating of 5A at 250 V ac supports industrial electrical applications.
- Silver contacts with insulation resistance greater than 50MΩ for reliable performance.
- Certified with standards CE, cUL, UL, and VDE ensuring compliance and safety.
Product Description

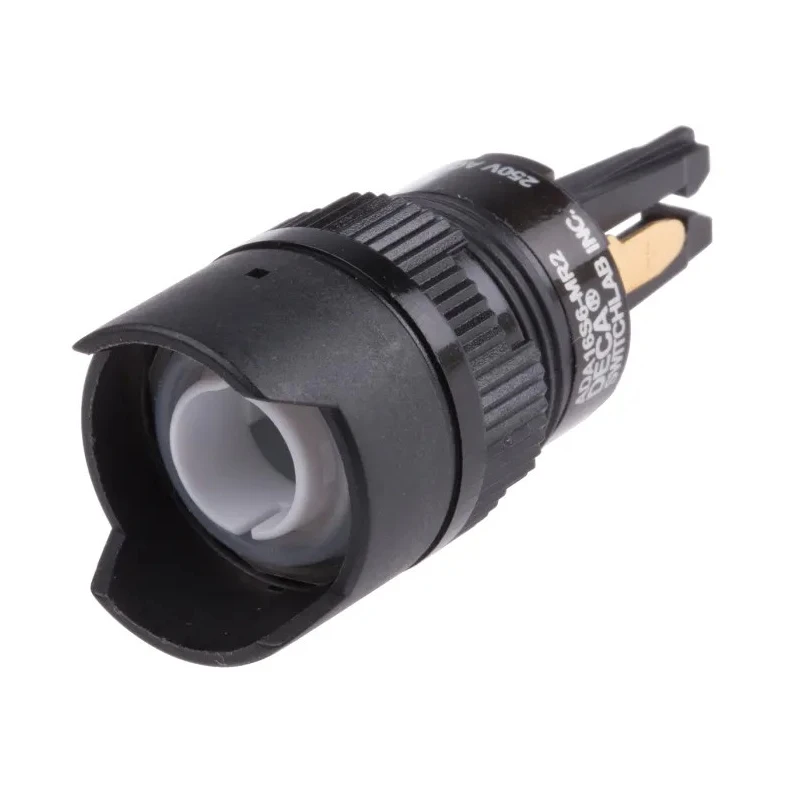

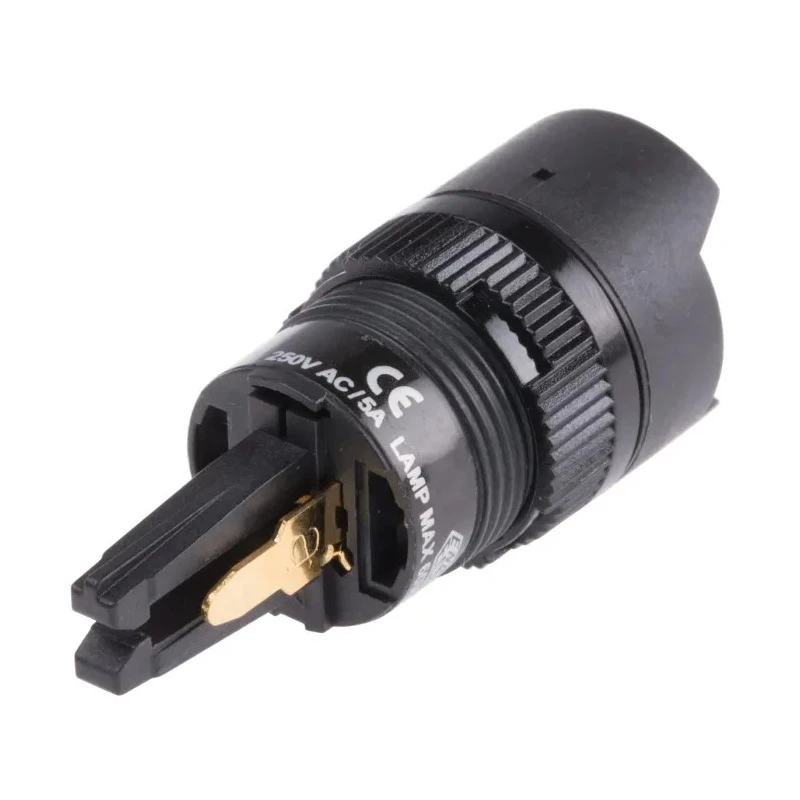

RS PRO 745-2467 Illuminated Push Button Switch is a momentary type switch designed for panel mounting applications requiring a robust and reliable control interface.
The switch features a 16 mm cutout size suitable for panels with thickness ranging from 0.5 to 5 mm and provides a waterproof sealing rating of IP65, protecting it from dust and water ingress.
The actuator is black with a high style profile offering excellent tactile feedback and visibility, making it suitable for use in industrial control panels, automation systems, and electrical equipment.
Operating at 250 V ac with a contact current rating of 5A, it incorporates silver contacts and achieves an insulation resistance greater than 50MΩ, ensuring durable electrical performance in demanding environments.
The product is certified to CE, cUL, UL, and VDE standards, aligning with international safety and quality requirements. It is manufactured in Taiwan, Province Of China, reflecting a high standard of quality assurance.
The illuminated feature allows clear status indication and improved user interaction. This switch supports installation in various industrial, commercial, and automation settings where momentary switch functionality is needed.
Constructed for quick and easy assembly with waterproof sealing to IP65. High actuator style in black color enhances usability and visibility. Operates momentarily with illuminated feature for clear indication. Suitable for panels of thickness between 0.5 and 5 mm.
Max operating temperature up to 55°C ensuring robustness in varied environments. Contact rating of 5A at 250 V ac supports industrial electrical applications. Silver contacts with insulation resistance greater than 50MΩ for reliable performance.
Certified with standards CE, cUL, UL, and VDE ensuring compliance and safety. Made in Taiwan, Province Of China with high-quality manufacturing standards. Discover more control switch solutions and electrical components in EnvMart's extensive catalog for industrial and automation applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cutout size for this momentary push button switch is 16 mm, making it suitable for panel mounting applications.
This switch can operate at a maximum temperature of 55°C, ensuring functionality in various environments.
The contact rating of this switch is 5A at 250 V ac, supporting a range of industrial electrical applications.
The switch has an IP65 rating, providing waterproof sealing against dust and water ingress.
This model is certified to CE, cUL, UL, and VDE standards, ensuring compliance with international safety and quality requirements.
The switch features a high-style actuator in black color, which enhances usability and visibility.
It is suitable for panels with a thickness ranging from 0.5 mm to 5 mm, allowing for versatile installation options.
The switch utilizes tab type terminals for easy connection during installation.
The insulation resistance of this switch is greater than 50MΩ, ensuring reliable electrical performance.
This illuminated momentary push button switch is suitable for use in industrial control panels, automation systems, and electrical equipment.
The illuminated feature provides clear status indication, improving user interaction and visibility during operation.
This model is manufactured in Taiwan, Province Of China, reflecting a high standard of quality assurance.
