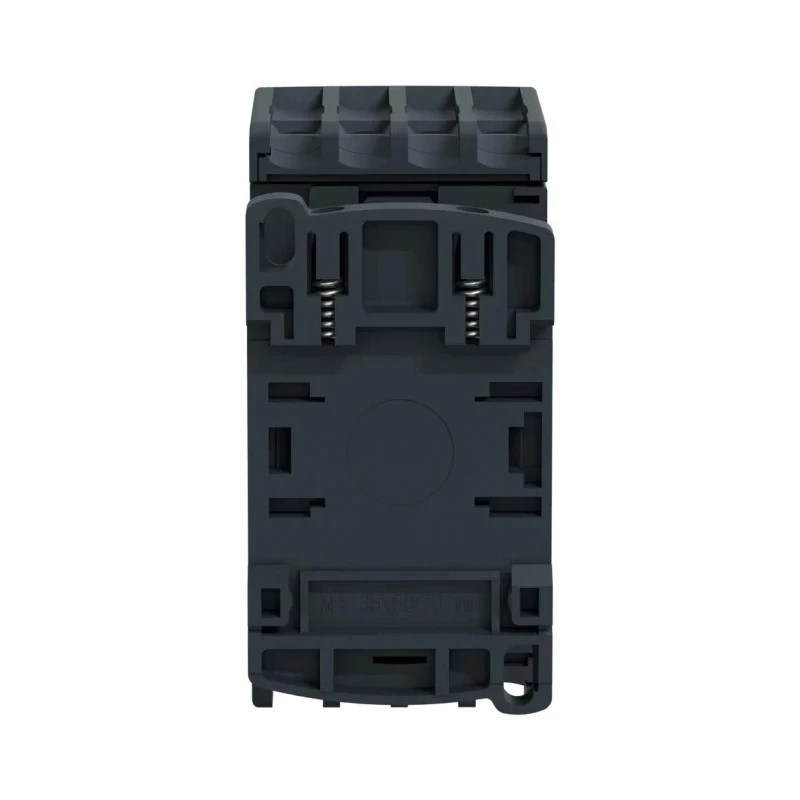

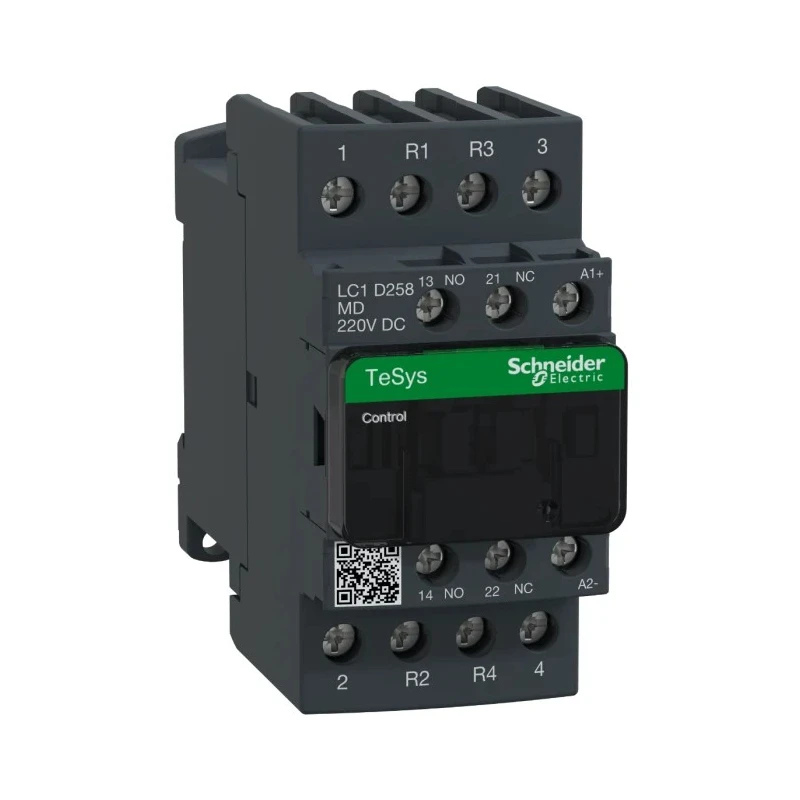

Schneider Electric LC1D Contactor 4-Pole, 230V DC Coil, 40A 220V, 2 NO/2 NC, 690V AC/DC LC1D258MD
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 91mm |
| Model | LC1D258MD |
| Depth | 107mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | CSA, UL |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 230V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 40A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 220V |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Operates with a coil voltage of 230V DC for reliable switching performance.
- Features 4 poles with 2 normally open and 2 normally closed contacts for versatile control.
- Supports contact current of 40A at 220V and contact voltage up to 690V AC/DC.
- Mounts easily on DIN rails with screw clamp terminals ensuring secure electrical connections.
- Operational temperature range from -5°C to 60°C suitable for diverse industrial environments.
- Compact design with 45mm width, 91mm length, and 107mm depth for efficient space utilization.
- Includes 1 normally open and 1 normally closed auxiliary contacts for additional circuit control.
- Certified by CSA, UL and compliant with IEC, CCC, EAC, Marine standards for global reliability.
Product Description
Schneider Electric LC1D258MD contactor is a high-quality, 4-pole TeSys D series device engineered for industrial motor control and resistive load applications. It features a 230V DC coil providing efficient operation with transient suppressor modulation. This contactor is ideal for diverse electrical installations requiring 40A contact current capability at voltages up to 690V AC/DC.
The device incorporates 2 normally open and 2 normally closed contacts allowing flexible circuit configurations and enhanced control options. Auxiliary contacts include 1 NO and 1 NC for expanded control and signalling usage. The screw clamp terminals ensure secure connections with IP20 finger-safe protection suited to maintain safety in demanding industrial settings.
Compact form factor (45mm wide, 91mm long, 107mm deep) allows mounting in space-restricted panels using DIN rail or screw fixing options. Operational temperature span from -5°C to 60°C allows use in harsh industrial environments. Designed and certified to multiple international standards including CSA, UL, IEC, CCC, EAC, and Marine certifications, it assures reliability and compliance in worldwide applications.
This contactor supports up to 3600 operational cycles per hour, promising long mechanical and electrical life. It meets environmental and sustainability commitments being Green Premium certified under RoHS and REACh. The robust design combined with easy installation and wide application range makes it suitable for manufacturing, HVAC, industrial automation, and general electrical control circuits.
Operates on 230V DC coil voltage. Four poles with 2 NO and 2 NC contacts for versatile control functionality. Auxiliary contacts include 1 NO and 1 NC certified for additional switching tasks. Mounting on DIN rail or screw fixing supports easy panel integration.
IP20 finger-safe terminals with clear international markings enhance operator safety and installation accuracy. Compact size and robust construction suitable for industrial automation and motor starter assemblies. Certified for global standards ensuring compliance and dependability.
Green Premium compliance reflects its sustainable manufacturing and disposal practices.
Schneider Electric offers reliable Contactors like the LC1D258MD for improved energy management and motor control solutions across industrial and commercial environments. For additional components and gear, explore more products in the Automation & Control Gear category available on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC1D258MD contactor operates with a coil voltage of 230V DC.
It supports a contact current of 40A at 220V.
The maximum contact voltage for this model is 690V AC/DC.
This contactor features 4 poles, with 2 normally open and 2 normally closed contacts.
The dimensions are 91mm in length, 45mm in width, and 107mm in depth.
It operates within a temperature range of -5°C to 60°C.
The LC1D258MD can be mounted on DIN rails or secured using screw fixing.
It includes 1 normally open and 1 normally closed auxiliary contact for additional circuit control.
This contactor is certified by CSA and UL, and complies with IEC, CCC, EAC, and Marine standards.
It is designed for motor control and resistive load applications.
It has IP20 finger-safe terminals with both North American and International terminal markings.
The LC1D258MD can support up to 3600 operational cycles per hour.
