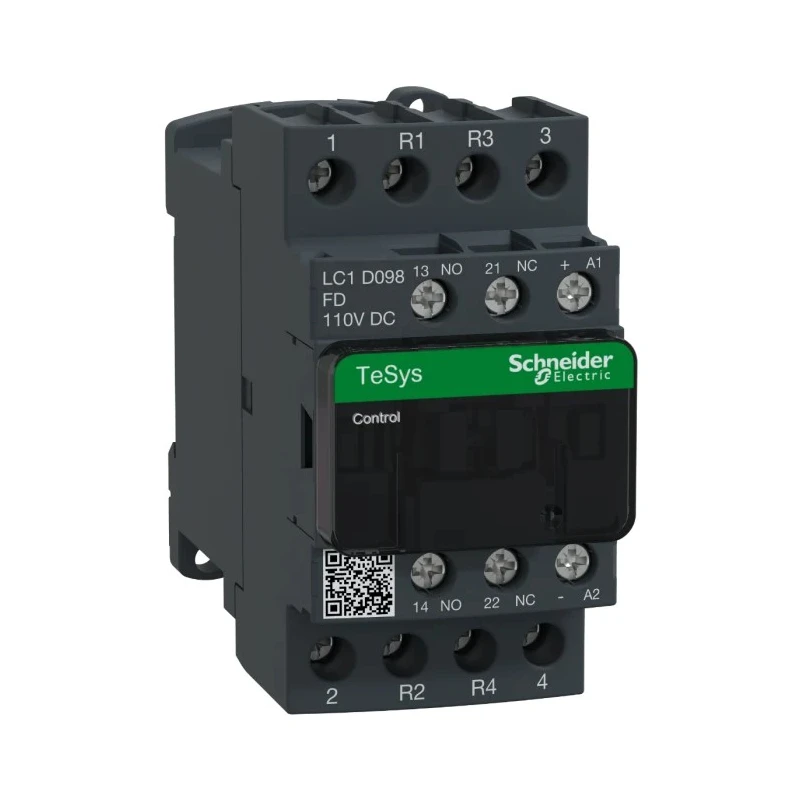

Schneider Electric LC1D Contactor, 110V dc Coil, 4-Pole, 9 A Contact Current, 2 NO/2 NC Contacts, 690V ac/dc LC1D098FD
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Schneider Electric |
| Function | Resistive Load |
| Length | 85mm |
| Model | LC1D098FD |
| Depth | 99mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | LC1D |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 4 |
| Standards/Approvals | IEC 61095 |
| Contact Voltage | 690V ac/dc |
| Coil Voltage | 110V dc |
| Normal State Configuration | 2 NO/2 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 20A |
| Control Circuit Voltage Uc | 110V dc |
| Contactor Application | Resistive Load |
| Pole and Throw Configuration | 4 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Designed for reliable resistive load and motor control applications.
- 4 poles and 2 NO/2 NC contact configuration.
- Mounts easily on DIN rails with screw terminal connections.
- Operates between -5°C and 50°C with robust IEC 61095 compliance.
- Includes auxiliary contacts with 1 NO/1 NC configuration.
- Features IP20 finger-safe terminals suitable for international standards.
- Bidirectional peak limiting diode suppressor protects the coil.
- Designed for easy integration in control systems and motor starters.
Product Description
Schneider Electric LC1D098FD Contactor is engineered for industrial automation with a 110V dc coil and a 4-pole, 9 A contact current configuration, supporting 690V ac/dc operation. It is ideal for resistive load applications and motor controls, offering fast setup and reliable performance compliant with IEC 61095 standards.
This contactor mounts on DIN rails and features screw connections with IP20 finger-safe terminals, marked for both North American and International use. It includes 2 auxiliary contacts configured as 1 NO/1 NC, supporting versatile circuit control with a flexible control circuit voltage of 110V dc.
The device supports operating temperatures ranging from -5°C to 50°C, ensuring stable performance in varied environments. The 2 NO/2 NC normal contact configuration allows for effective control and switching operations typical in industrial automation, HVAC, and manufacturing lines.
Durability is enhanced with a design resistant to shock and vibration. The coil has a bidirectional peak limiting diode suppressor to protect against voltage spikes, increasing coil longevity. Applications include resistive loads and squirrel cage motor controls, suitable for elevators, conveyors, pumps, compressors, mixers, and air conditioning units.
Accessories for this contactor, such as auxiliary contact blocks, pneumatic time delay blocks, and transient voltage surge suppressors, are available to expand functionality. The TeSys D range utilizes a linear translation mechanism providing double breaking pole operation for higher reliability in control circuits.
Designed for reliable resistive load and motor control applications. Easy DIN rail mounting with screw terminal IP20 finger-safe connections. Operating temperature range from -5°C to 50°C for versatile use. Includes 2 auxiliary contacts with 1 NO/1 NC configuration.
Resistant to shock and vibration enhancing operational reliability. Bidirectional diode suppressor protects coil circuits from voltage spikes. Compliant with IEC 61095 international standards. Ideal for industrial automation, HVAC, manufacturing, and water treatment.
Product origin is Indonesia, reflecting global quality manufacturing. Discover reliable and efficient Contactors from Schneider Electric on EnvMart for professional electrical automation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Schneider Electric LC1D098FD Contactor has a contact current rating of 9 A.
This contactor operates with a coil voltage of 110V dc.
The maximum operating temperature for the LC1D098FD is 50°C.
The LC1D098FD features a 4-pole configuration.
It has a normal state configuration of 2 normally open (NO) and 2 normally closed (NC) contacts.
The dimensions of the LC1D098FD are 85mm in length, 45mm in width, and 99mm in depth.
It uses IP20 finger-safe screw terminals suitable for both North American and International standards.
This model is designed for resistive load applications and motor control, suitable for uses such as elevators, conveyors, and pumps.
The LC1D098FD complies with IEC 61095 standards.
It includes 2 auxiliary contacts configured as 1 normally open (NO) and 1 normally closed (NC).
The operational current rating for this model is 20 A.
This unit is designed for DIN rail mounting.
