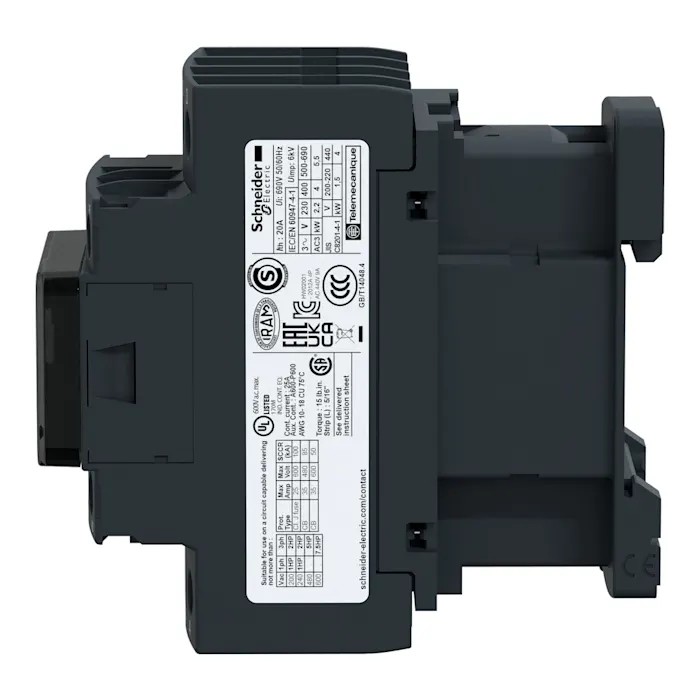

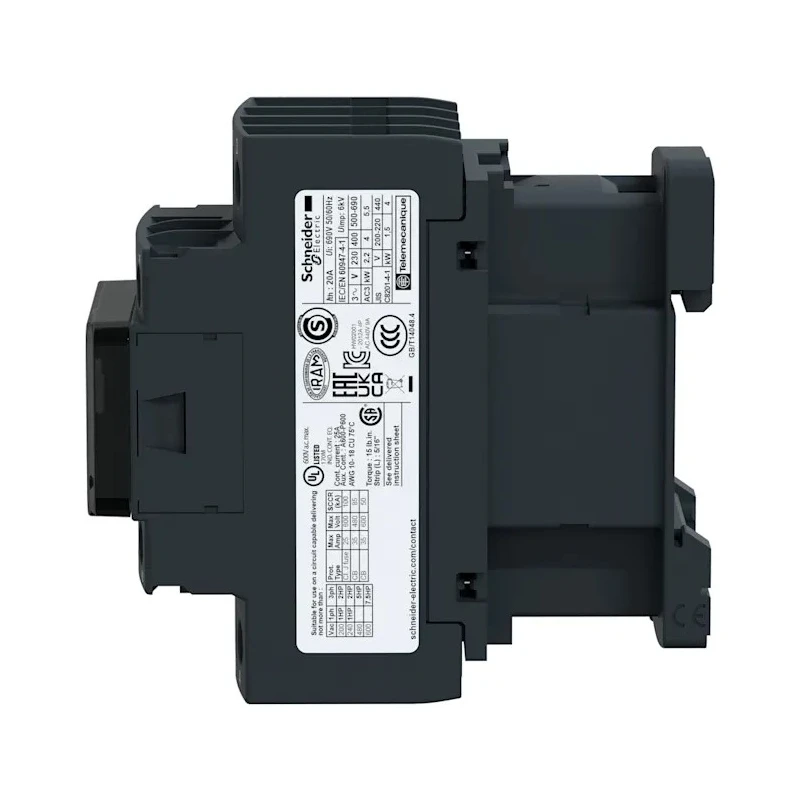

Schneider Electric LC1D Contactor, 24V DC Coil, 4-Pole, 20A Resistive Load, 2 NO/2 NC, 690V AC/DC LC1D098BD

Schneider Electric LC1D098BD is a high-quality TeSys D series contactor equipped with a 24V DC coil and four poles, suitable for resistive load applications up to 20A and rated for 690V AC/DC contact voltage. This compact contactor measures 85mm in length, 45mm in width, and 99mm in depth, making it ideal for space-efficient DIN rail mounting and screw fixing.

Designed for industrial, commercial, and automation environments, the LC1D098BD contactor combines mechanical and electrical reliability with excellent durability under demanding conditions. It supports control circuit voltages of 24V DC, and the coil consumption is optimized for energy efficiency without sacrificing performance.

The contactor includes two normally open (NO) and two normally closed (NC) contacts (2 NO/2 NC), allowing for flexible switching configurations. Its screw clamp terminals offer safe, secure wiring compliant with IP20 finger safety standards. The auxiliary contacts feature 1 NO and 1 NC contact, with the NC contact mirror certified for increased safety.

Operational temperature ranges from -5°C to 50°C, supporting durability in a variety of industrial climates. The device is rated for operational currents up to 60A and can operate up to 3600 cycles per hour, suitable for frequent switching tasks in motor starters and other machinery. It is ideal for applications involving resistive loads, motor control, HVAC systems, manufacturing equipment, and other electrical automation systems.

Schneider Electric’s TeSys D series Contactors comply with international standards such as IEC 61095 and are certified by UL, CSA, CCC, EAC, and Marine authorities. The product also meets RoHS and REACh regulations, underscoring its commitment to environmental sustainability as a Green Premium product designed for disassembly.

An extensive range of compatible accessories is available, facilitating customization for diverse industrial automation requirements. The LC1D098BD contactor’s reliability, compact form factor, and compliance features make it a trusted choice for engineers and maintenance professionals seeking durable control solutions.

Features 2 normally open and 2 normally closed contacts for versatile control. Operates at 690V AC/DC contact voltage for high power applications. Compact 45mm width designed for DIN rail mounting and screw fixing. Supports control circuit voltage of 24V DC ensuring reliable coil operation.

Screw clamp terminals provide secure and finger-safe IP20 connections. Built to withstand operating temperatures from -5°C to 50°C. Suitable for motor starters, resistive loads, and wide industrial uses. Compliant with IEC 61095 and other international standards ensuring safety and durability.

Green Premium product designed for disassembly and sustainability. Auxiliary contacts include 1 NO and 1 NC, with the NC contact mirror certified. This product is catalogued under Automation & Control Gear at EnvMart, providing professionals with trusted industrial control components from Schneider Electric.
