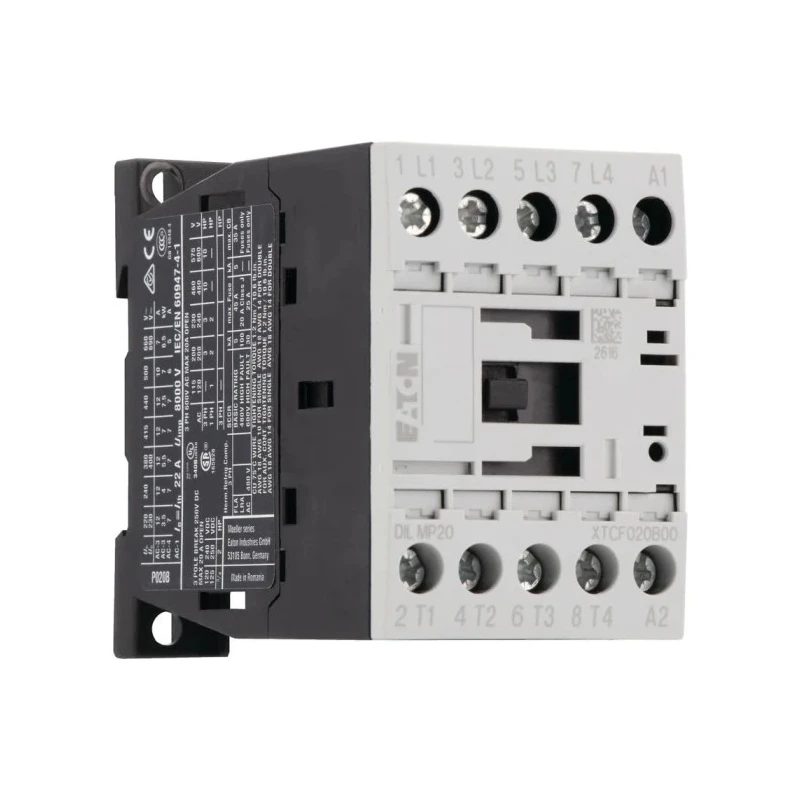

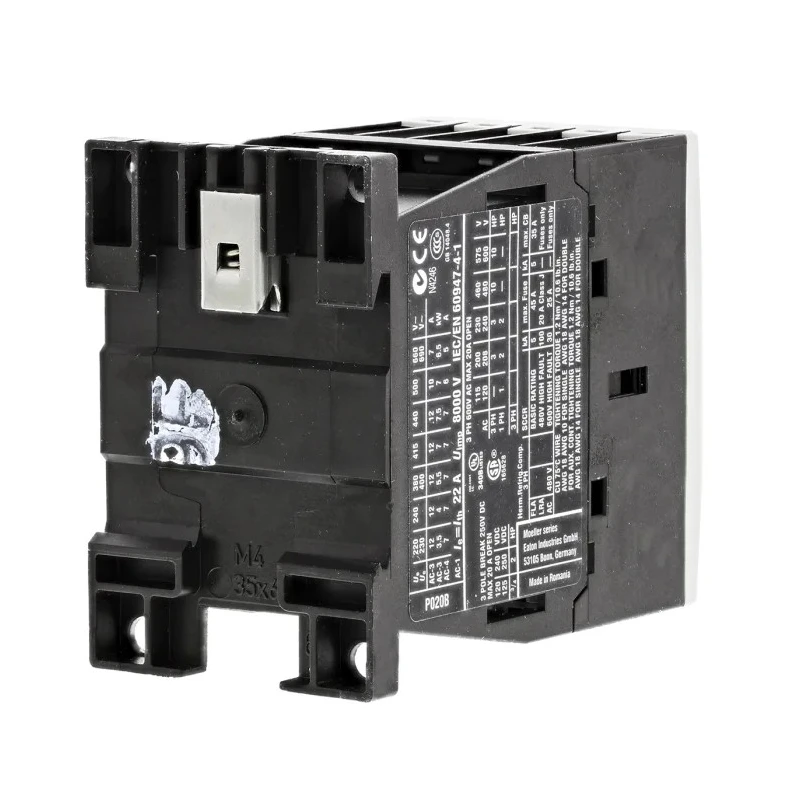

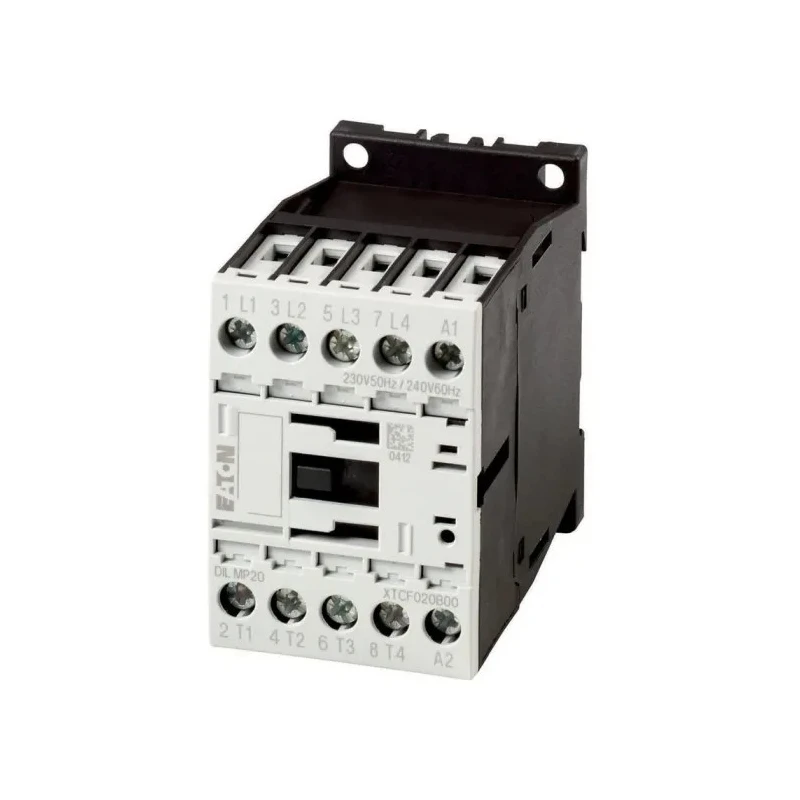

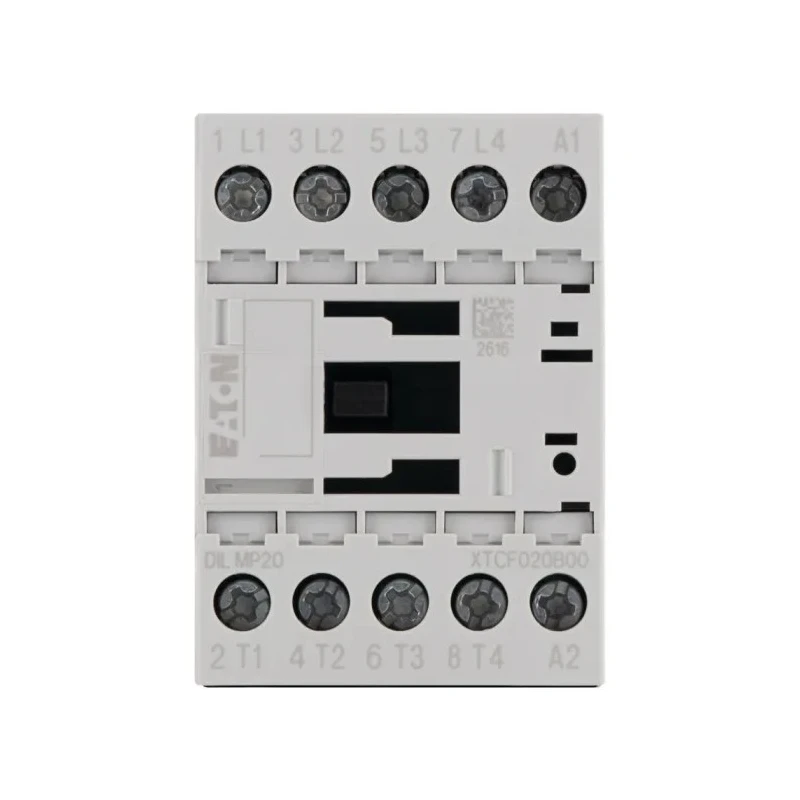

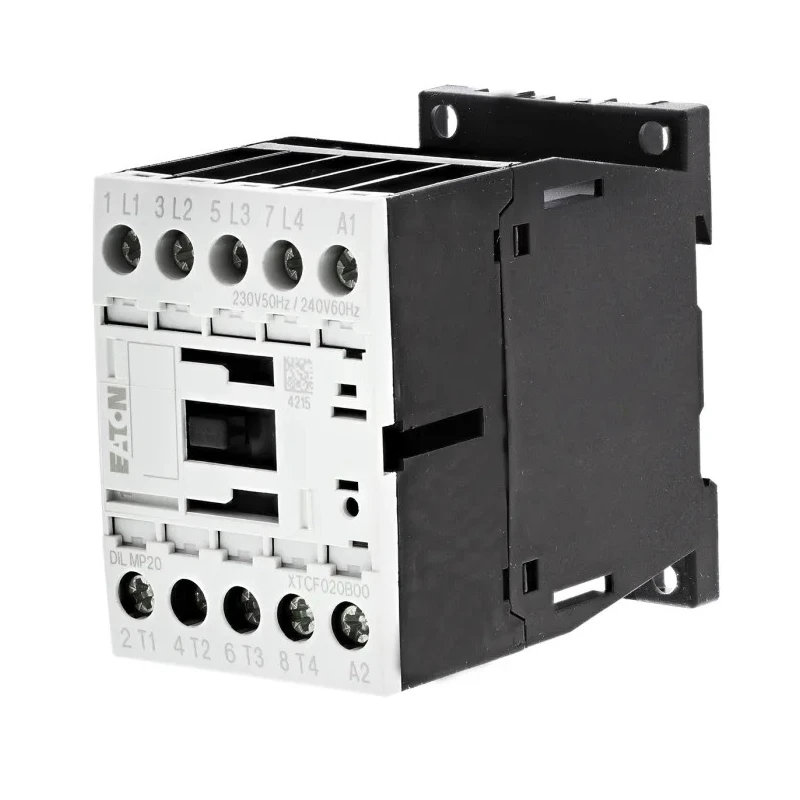

Eaton DILM Contactor 4-Pole 20 A 5.5 kW 230V AC Coil, 4 NO, 400V AC 276970 DILMP20(230V50HZ,240V60HZ)

Eaton 276970 DILMP20(230V50HZ,240V60HZ) DILM series contactor with a 230V AC coil is engineered for efficient motor control and resistive load switching applications. This 4-pole contactor supports a maximum contact current of 20 A and power rating of 5.5 kW at 230V AC, making it suitable for demanding industrial circuits.

Its design includes four normally open (4 NO) contacts and one normally closed (1 NC) auxiliary contact, allowing for flexible circuit configurations. Mount type is DIN rail with adjustable mounting position up to 180°, enabling flexible and space-saving installations in electrical panels.

Built to endure rigorous industrial use, it withstands up to 5000 operations per hour with mechanical shock resistance up to 10g, ensuring reliable performance even in harsh environments. The contactor features screw clamp terminals for solid conductor connection, reducing the risk of loose wires due to vibration.

Operating temperature ranges from -25°C to 60°C, accommodating diverse environmental conditions. Its compact form factor with dimensions 45mm (width), 117mm (depth), and 68mm (length) makes it ideal for use in dense control setups.

This Eaton contactor conforms to EN 60947 standards, ensuring compliance with industrial safety and performance requirements. Commonly applied in motor controls, factory automation, renewable energy installations such as solar panels and wind turbines, it offers dependable switching for electrical power circuits.

The coil voltage of 230V AC supports standard industrial control wiring. Four main contacts with 20A rating handle substantial loads safely. Auxiliary contacts provide additional control circuit options. Durable DIN rail mount with adjustable positioning eases panel assembly.

High tolerance to mechanical operations extends operational lifespan. Screw clamp terminals ensure reliable wiring under vibration conditions. Comprehensive temperature range suitable for diverse industrial environments.

Compact size helps optimize space in control cabinets and panels. Meets EN 60947 for quality and safety in contactor functionality.

Choose this Eaton DILM contactor for efficient and robust power switching solutions in industrial automation and motor control applications. Explore more components and control gear in the Electronics & Electricals Automation & Control Gear category at EnvMart.
