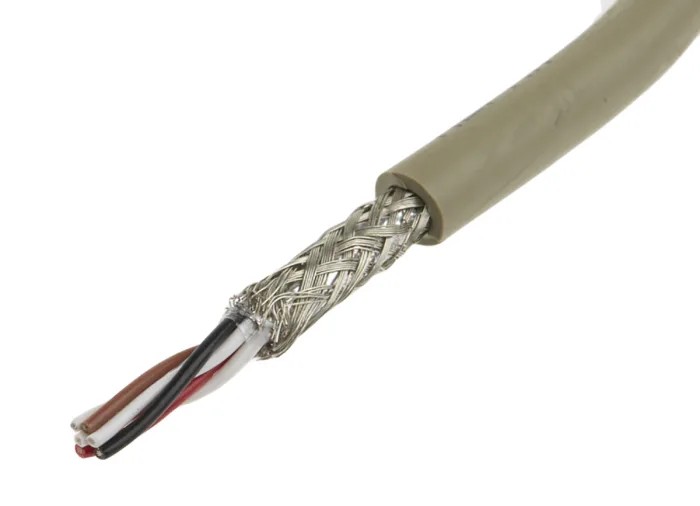

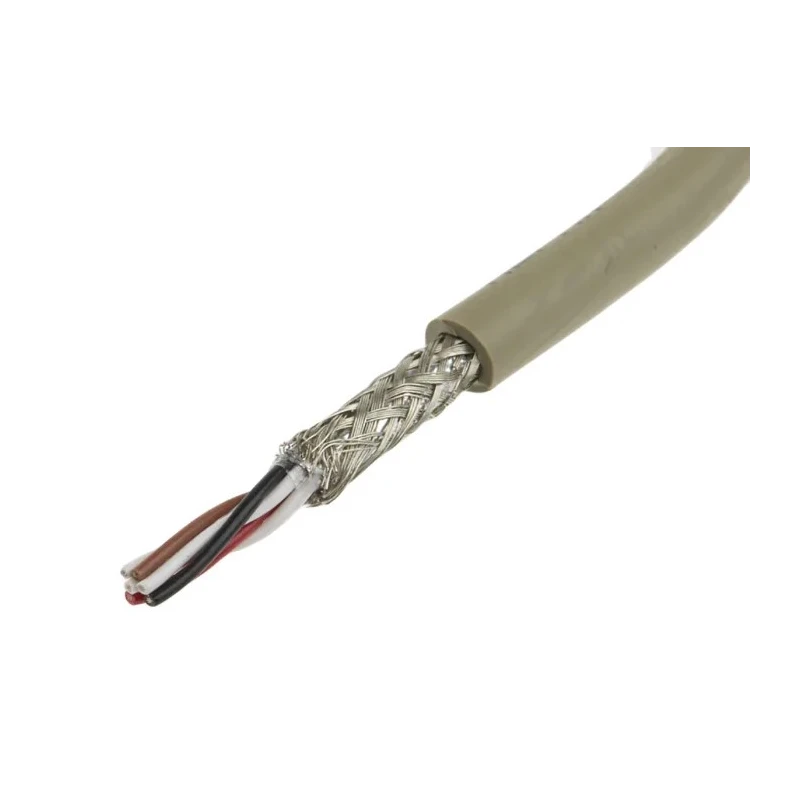

Alpha Wire Pro-Tekt Series Data Cable 3 Pairs 6 Cores 0.14 mm² 50 m Grey Sheath Polyvinyl Chloride B962034 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.14 mm² |
| Model | B962034 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 5.92mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 6 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.219 inch (5.56 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Number of Strands | 7 |
| Core Strands | 7 x 34AWG |
| Size of Strands | 34AWG |
| Number of Pairs | 3 |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/34 |
| Pairs | 3, White + Black, White + Brown, White + Red |
Key Features
- Constructed with tin copper wire conductors for reliable signal transmission.
- Flame retardant PVC jacket withstands operating temperatures from -30°C to 105°C.
- Complies with CE, CSA, and UL standards for safety and performance.
- Features stranded 7 x 34AWG cores for increased flexibility and durability.
- Designed with a nominal diameter of 5.56 mm and an overall outside diameter of 5.92 mm.
- Suitable for industrial automation, medical devices, aerospace, and petrochemical applications.
- Offers excellent electromagnetic resistance with foil and braid shielding options available.
Product Description
Alpha Wire B962034 GE321 Pro-Tekt Series Data Cable is a high-performance multipair data cable designed with 3 pairs and 6 cores of 0.14 mm² tin copper wire conductors, encased in a grey polyvinyl chloride (PVC) sheath that ensures durability and flame retardance. The cable length is 50 meters, ideal for various industrial and electronic applications requiring reliable data transmission and flexibility.
The Pro-Tekt cable series is flexible and perfectly rounded for easy installation in compact spaces. It features stranded conductors with 7 strands of 34AWG for enhanced flexibility. The nominal diameter of the cable is 5.56 mm (0.219 inch) with an overall outside diameter of 5.92 mm and a jacket thickness of 0.81 mm (0.032 inch).
The cable is rated for continuous operation between -30°C and 105°C and features a flame retardant PVC jacket, making it suitable for demanding environments. The jacket and insulation are resistant to UV exposure and oils, ensuring longevity in harsh conditions. Colour-coded pairs include White + Black, White + Brown, and White + Red pairs to facilitate easy wiring and identification.
Certified to meet CE, CSA, and UL standards, the cable complies with IEC EN 60332 and UL AWM 2464 VW-1 fire safety norms, ensuring its safe use in industrial, automation, medical, aerospace, petrochemical, and commercial electronics applications.
The Pro-Tekt cable supports electromagnetic resistance via several shielding options including foil, braid, and the premium Supra-Shield combination for superior noise reduction across frequencies. The tin copper wire conductors facilitate easy connection to switches, plugs, and connectors, making it a versatile cable for combining data and power within a single system.
Constructed with tin copper wire conductors for reliable signal transmission. Flame retardant PVC jacket withstands operating temperatures from -30°C to 105°C. Complies with CE, CSA, and UL standards for safety and performance.
Features stranded 7 x 34AWG cores for increased flexibility and durability. Designed with a nominal diameter of 5.56 mm and an overall outside diameter of 5.92 mm. Includes colour-coded pairs: White + Black, White + Brown, White + Red for easy identification.
Suitable for industrial automation, medical devices, aerospace, and petrochemical applications. Offers excellent electromagnetic resistance with foil and braid shielding options available. Explore more cables and wires within the Data Cable category for your industrial and electrical requirements at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this data cable is 105°C.
The nominal diameter of this data cable is 5.56 mm (0.219 inch).
This model has 6 cores.
The cable is constructed with tin copper wire conductors.
The color-coded pairs included are White + Black, White + Brown, and White + Red.
The cable length is 50 meters.
This cable complies with CE, CSA, and UL standards.
The minimum operating temperature for this cable is -30°C.
The overall outside diameter of this data cable is 5.92 mm.
This data cable is suitable for industrial automation, medical devices, aerospace, and petrochemical applications.
The insulation thickness of this cable is 0.010 inch (0.25 mm).
The PVC jacket is flame retardant, ensuring safety in various applications.
