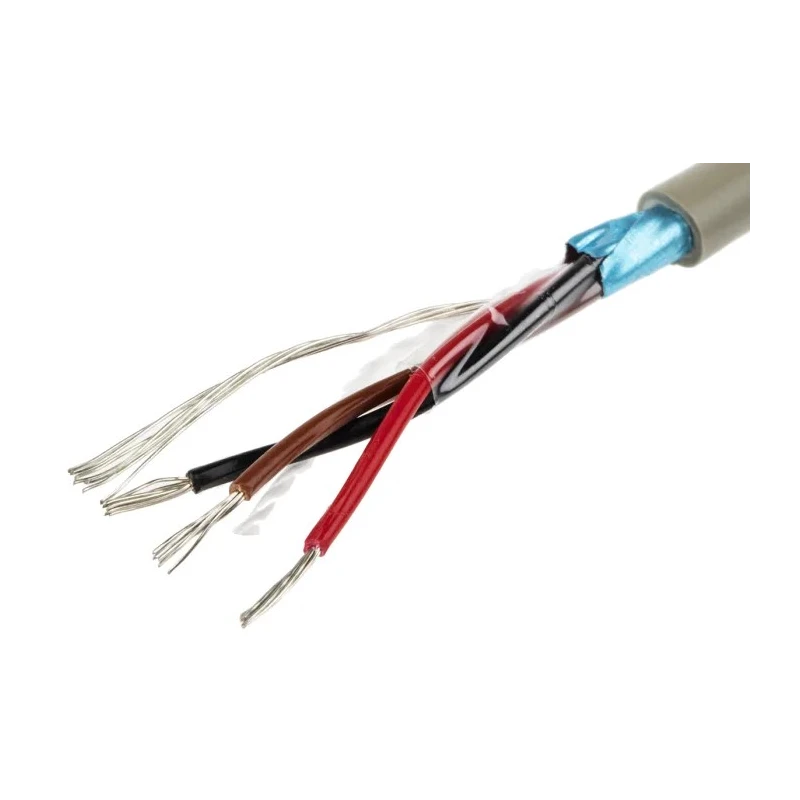

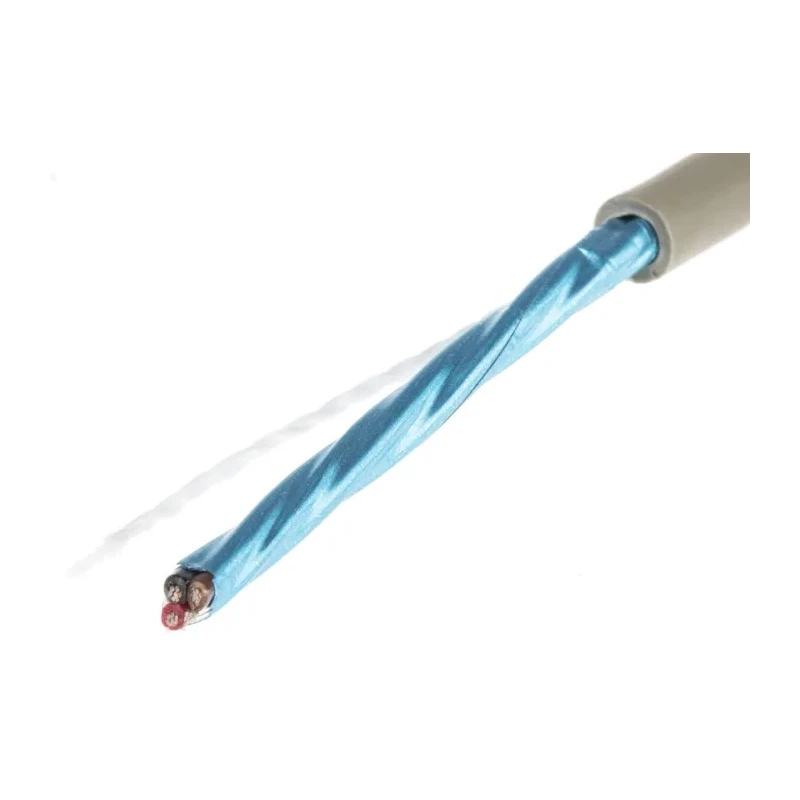

Alpha Wire Pro-Tekt Series Data Cable 3 Cores 0.56 mm² 50 m Grey Sheath Polyvinyl Chloride B955032 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.56mm² |
| Model | B955032 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 5.64mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.016 (0.41 mm) |
| Nominal Diameter | 0.222 inch (5.64 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Conductors | 3, Black, Red, White |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/28 |
Key Features
- Constructed with stranded tin copper wire conductors for enhanced flexibility.
- Rated for operation from -30°C to +105°C for versatile environmental use.
- Features a durable, flame-retardant polyvinyl chloride jacket and insulation.
- Includes foil shielded, multiconductor design with color-coded black, red, and white conductors.
- Nominal outside diameter of 5.64 mm allowing easy installation in tight spaces.
- Complies with CE, CSA, and UL standards ensuring safety and reliability.
- Has a voltage rating of 300 V suitable for industrial data and power transmission.
- Jacket thickness of 0.032 inch (0.81 mm) and insulation thickness of 0.016 inch (0.41 mm).
Product Description
Alpha Wire B955032 GE321 Pro-Tekt Series Data Cable is a high-performance, foil shielded multiconductor cable designed for industrial, commercial, and automation applications. With three stranded tin copper wire conductors, this cable offers excellent flexibility and mechanical strength. The grey polyvinyl chloride sheath is flame retardant, UV and oil resistant, and rated for operation between -30°C and +105°C, making it ideal for demanding environments.
The cable features a nominal outside diameter of 5.64 mm, allowing it to be easily routed in confined spaces. The foil shield provides effective electromagnetic interference resistance, ensuring signal integrity in noisy industrial settings. The conductors are color coded black, red, and white for easy identification during installation.
Alpha Wire Pro-Tekt cables are certified to multiple international standards including CE, CSA, and UL, emphasizing their compliance with safety and performance requirements. Rated at 300 V, they are suitable for combining data, power, coaxial, and AV signals in a single flexible cable solution.
This cable is commonly used in industrial automation, medical device manufacturing, aerospace systems, petrochemical plants, and commercial electronics, where reliable connectivity and durability are paramount. The robust PVC jacket and insulation provide abrasion resistance, while the stranded construction enhances cable flexibility.
Constructed with stranded tin copper wire conductors for enhanced flexibility. Rated for operation from -30°C to +105°C for versatile environmental use. Features a durable, flame-retardant polyvinyl chloride jacket and insulation.
Includes foil shielded, multiconductor design with color-coded black, red, and white conductors. Nominal outside diameter of 5.64 mm allowing easy installation in tight spaces. Complies with CE, CSA, and UL standards ensuring safety and reliability.
Has a voltage rating of 300 V suitable for industrial data and power transmission. Jacket thickness of 0.032 inch (0.81 mm) and insulation thickness of 0.016 inch (0.41 mm). Stranding configuration of 7 strands with 0.32 mm diameter strands enhances mechanical strength.
Suitable for industrial automation, medical, aerospace, petrochemical, and commercial electronics applications. Explore more high-quality Data Cables for industrial and commercial needs on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a voltage rating of 300 V, making it suitable for industrial data and power transmission applications.
It is rated for operation at a maximum temperature of 105°C, allowing use in a variety of environments.
This model features three cores, which are color-coded black, red, and white for easy identification during installation.
The nominal outside diameter is 5.64 mm, facilitating installation in tight spaces.
The jacket is made from flame-retardant polyvinyl chloride (PVC), providing durability and resistance to various environmental factors.
It uses stranded tin copper wire conductors, which enhance flexibility and mechanical strength.
The cable complies with CE, CSA, and UL standards, ensuring it meets safety and performance requirements.
The jacket thickness is 0.032 inch (0.81 mm) and the insulation thickness is 0.016 inch (0.41 mm).
The minimum operating temperature is -30°C, allowing it to function in colder environments.
This model has a length of 50 meters, suitable for various installation needs.
It is commonly used in industrial automation, medical device manufacturing, aerospace systems, petrochemical plants, and commercial electronics.
Each core consists of 7 strands with a diameter of 0.32 mm, enhancing flexibility and strength.
