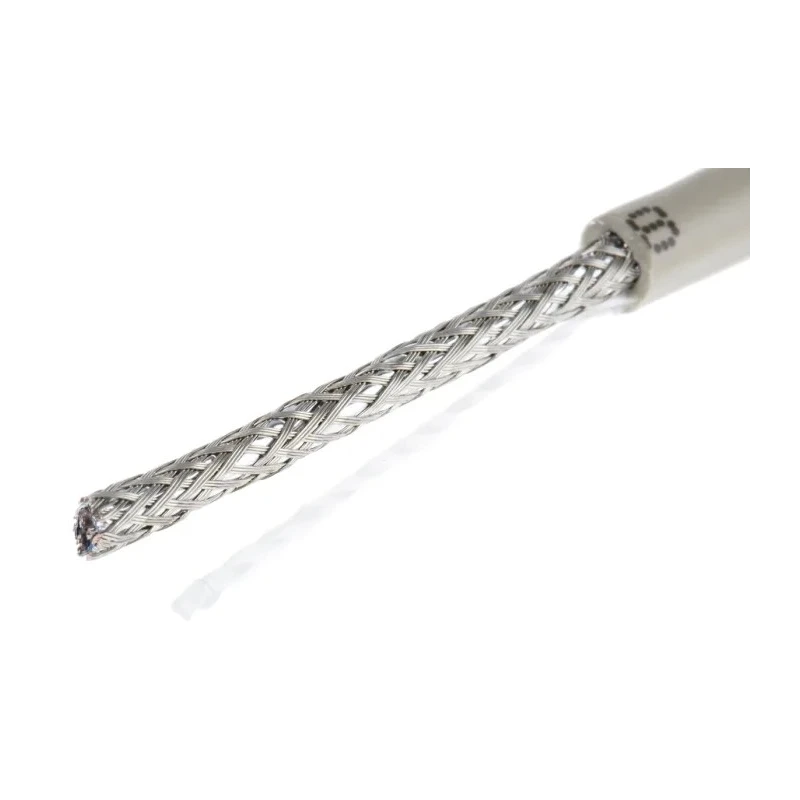

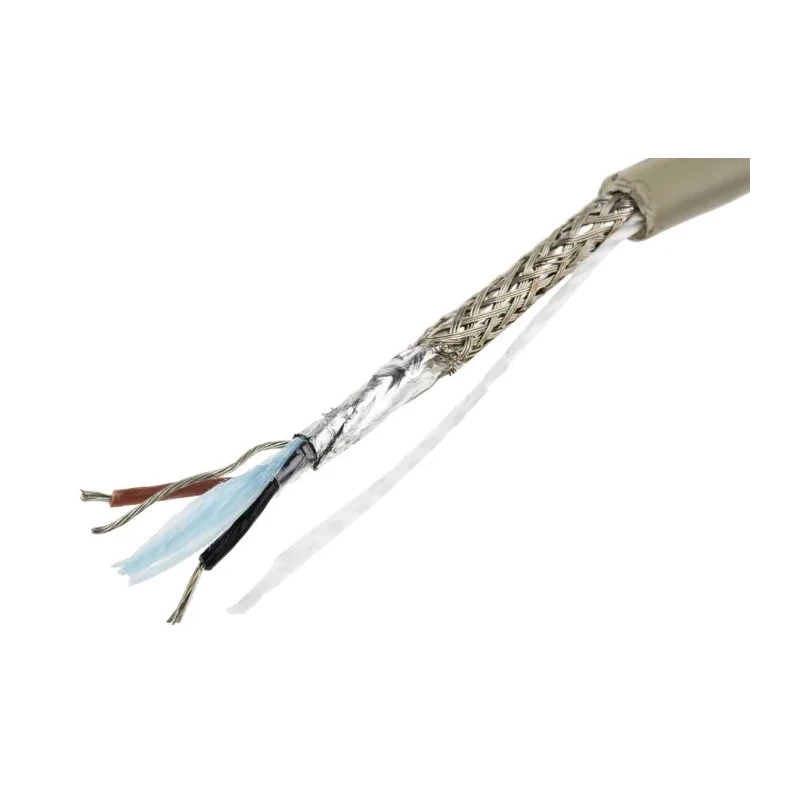

Alpha Wire Pro-Tekt Series Data Cable 2 Cores 0.81 mm² 50 m Grey Sheath Polyvinyl Chloride B956024 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.81mm² |
| Model | B956024 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 6.43mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 2 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.016 (0.41 mm) |
| Nominal Diameter | 0.253 inch (6.43 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.32mm |
| Size of Strands | 0.32mm |
| Conductors | 2, Black, Red |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 16/30 |
Key Features
- The cable features stranded tin copper conductors for enhanced flexibility and conductivity.
- It has a durable polyvinyl chloride jacket that is UV and oil resistant.
- Operating temperature range is from -30°C to +105°C suitable for harsh environments.
- The cable is flame retardant and complies with CE, CSA, and UL standards.
- Its nominal diameter is 6.43 mm with 7 strands per core, each strand measuring 0.32 mm.
- Suitable for power equipment, industrial automation, aerospace, medical devices, and petrochemical industries.
- Comes with color-coded conductors (black and red), ideal for easy identification in wiring installations.
- The cable’s design supports 300V voltage rating ensuring safety in power transmission.
Product Description
Alpha Wire B956024 GE321 Pro-Tekt Series Data Cable is a high-performance industrial cable featuring 2 stranded tin copper conductors with a cross-sectional area of 0.81 mm² each and a cable length of 50 meters. The cable comes with a grey polyvinyl chloride (PVC) sheath that provides excellent UV and oil resistance, making it ideal for demanding industrial environments.
This data cable operates within a temperature range of -30°C to +105°C and is constructed to comply with stringent CE, CSA, and UL certifications. Its flame-retardant properties enhance safety in industrial and commercial settings.
The cable’s nominal outside diameter is 6.43 mm, with each core comprising 7 strands of 0.32 mm diameter wire, stranded for optimal flexibility and durability. The black and red color-coded conductors simplify installation and maintenance tasks.
Engineered for applications such as industrial automation, medical devices, aerospace, petrochemical, and commercial electronic industries, the Pro-Tekt series combines flexibility, mechanical strength, and resistance to electromagnetic interference to ensure reliable data and power transmission.
Stranded tin copper conductors for increased flexibility and conductivity. Durable polyvinyl chloride sheath offering UV and oil resistance. Wide operating temperature range from -30°C to 105°C. Flame retardant construction complying with CE, CSA, and UL standards.
Nominal diameter 6.43 mm with 7x0.32 mm strand configuration. Color-coded black and red conductors for easy identification. Designed for robust industrial, medical, aerospace, and petrochemical applications. Voltage rating of 300V ensuring safe power transmission.
The Alpha Wire Pro-Tekt Series is known for its high-quality European cable system design, featuring a perfectly rounded profile to facilitate installation in constrained spaces. This cable is suited for combining data, power, coaxial, and AV cores in single cable solutions where reliability and compliance with strict industrial standards are critical.
Explore more Data Cable solutions and related cables in the Electronics & Electricals category at EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable has a voltage rating of 300V, ensuring safety in power transmission.
This data cable can operate at a maximum temperature of 105°C.
The nominal diameter of the cable is 6.43 mm.
This model features 2 cores.
The conductors are made of stranded tin copper wire, which enhances flexibility and conductivity.
The cable has a length of 50 meters.
It features a polyvinyl chloride (PVC) jacket that provides UV and oil resistance.
The cable complies with CE, CSA, and UL standards, ensuring it meets stringent safety and performance requirements.
The minimum operating temperature is -30°C, making it suitable for harsh environments.
Each core comprises 7 strands, with each strand measuring 0.32 mm in diameter.
This cable is suitable for applications in industrial automation, medical devices, aerospace, and petrochemical industries.
The cable is flame retardant, enhancing safety in industrial and commercial settings.
