| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.6mm |
| Length | 1.2mm |
| Model | RB521SM-60T2R |
| Width | 0.8mm |
| Mount Type | Surface |
| Series | RB521SM-60 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-523 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | JEITA: SC-79, JEDEC: SOD-523 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 100μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 600mV |
| Standards/ApprovalsJEITA | SC-79, JEDEC: SOD-523 |
| JEITA | SC-79, JEDEC: SOD-523 |

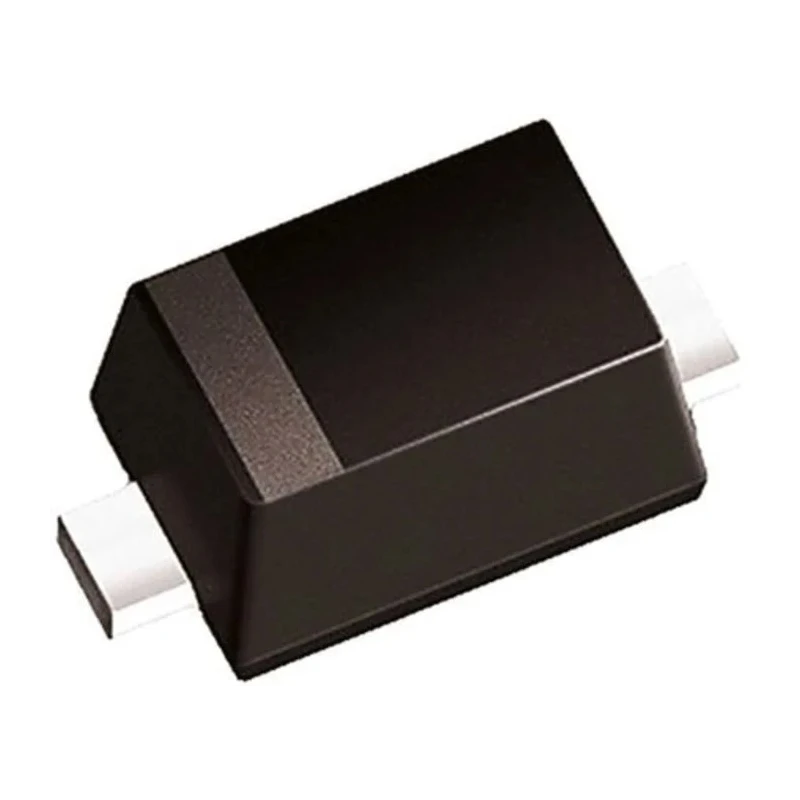

ROHM RB521SM-60T2R Schottky Barrier Diode is a surface mount semiconductor device designed for efficient rectification and switching in electronic circuits. It supports a maximum continuous forward current of 200 mA and can withstand a peak reverse repetitive voltage of 60 V. Packaged in a compact SOD-523 2-pin form factor, it offers a highly reliable solution for space-constrained applications.
Featuring a maximum forward voltage drop of 600 mV, this diode minimizes power dissipation, enhancing circuit efficiency. It can tolerate peak non-repetitive forward surge current up to 1 A, providing robustness against transient events.
The device is rated for operation within a wide temperature range from -55°C to 125°C, making it suitable for industrial and commercial electronic applications requiring high temperature endurance.
Compliant with JEITA SC-79 and JEDEC SOD-523 surface mount standards, it ensures compatibility with automated assembly processes and industry quality benchmarks. Applications include power supply circuits, switching regulators, and high-frequency rectification in communications equipment, industrial machines, and consumer electronics.
This diode features a 600 mV maximum forward voltage drop for efficient power usage. Peak non-repetitive forward surge current is rated at 1 A for transient tolerance. Designed with a compact SOD-523 package measuring 1.2 mm by 0.8 mm by 0.6 mm.
Operating temperature ranges from -55°C to 125°C ensuring reliability in harsh environments. Complies with JEITA SC-79 and JEDEC SOD-523 standards for surface mount devices. Single diode configuration suitable for rectification and switching applications.
Low peak reverse current of 100 μA reduces leakage at high voltages. Ideal for industrial, electronic components, and power supply applications. Explore more semiconductor components by ROHM and access essential industrial electronic solutions at EnvMart.
