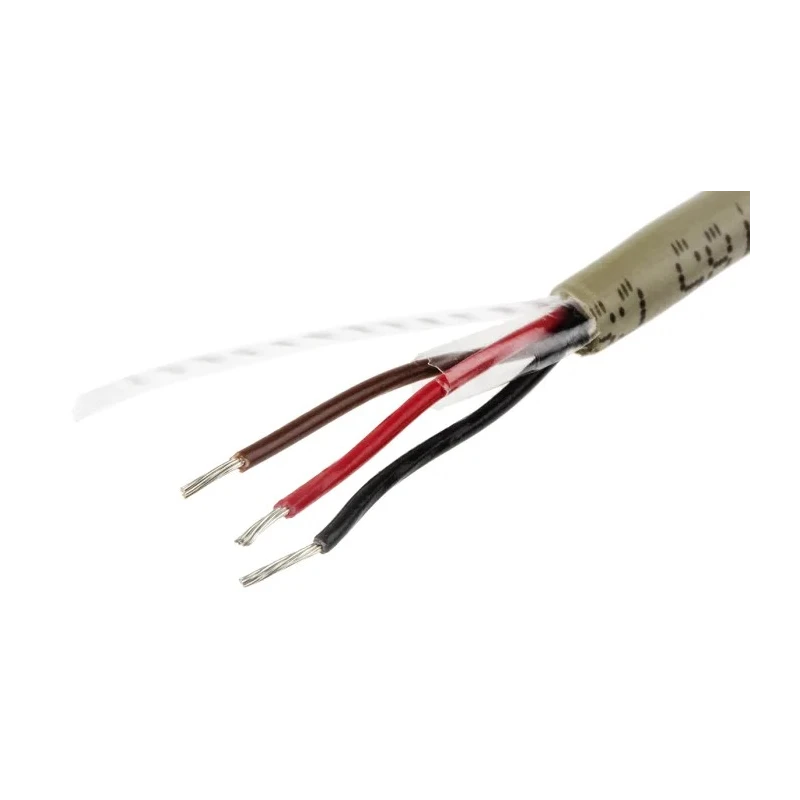

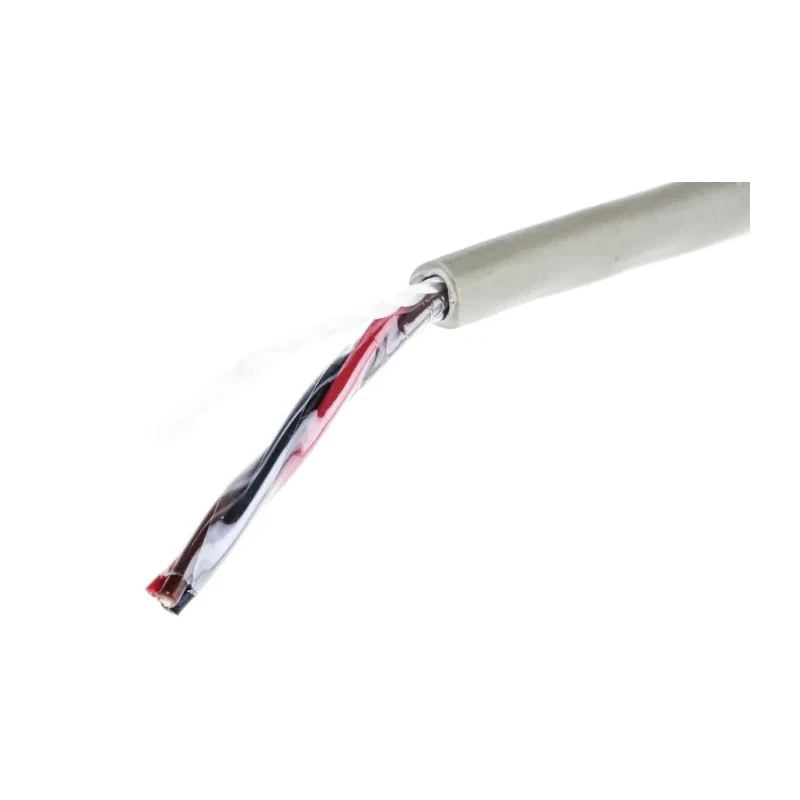

Alpha Wire Pro-Tekt Series Data Cable 3 Cores 0.09 mm² 50 m 300V Grey Polyvinyl Chloride B951031 GE321
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.09mm² |
| Model | B951031 GE321 |
| Cable Length | 50m |
| Series | Pro-Tekt |
| Outside diameter | 3.63mm |
| Maximum Operating Temperature | 105°C |
| Number Of Cores | 3 |
| Conductor Material | Tin Copper Wire |
| Insulation Thickness | 0.010 (0.25 mm) |
| Nominal Diameter | 0.143 inch (3.63 mm) |
| Minimum Operating Temperature | -30°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, CSA Certified, UL |
| Jacket Colour | Grey |
| Fire Behaviour | Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 0.127mm |
| Size of Strands | 0.127mm |
| Conductors | 3, Black, Brown, Red |
| Jacket Thickness | 0.032 inch (0.81 mm) |
| Stranding | 7/36 |
Key Features
- Constructed with stranded tin copper wire for enhanced flexibility.
- Features a grey polyvinyl chloride (PVC) jacket with flame retardant properties.
- Rated for 300V with operating temperature from -30°C up to 105°C.
- Nominal outside diameter of 3.63 mm enables easy installation in compact spaces.
- Cable series Pro-Tekt ensures robustness in industrial automation and commercial electronics.
- Complies with CE, CSA Certified, and UL standards for safety and performance.
- Offers resistance to UV, oil, and abrasion, extending cable durability.
- Suitable for use in aerospace, medical devices, petrochemical, and power equipment industries.
Product Description
Alpha Wire B951031 GE321 Pro-Tekt Series Data Cable is a high-performance industrial data cable featuring 3 cores with a cross-sectional area of 0.09 mm² and a durable grey polyvinyl chloride (PVC) sheath. Designed for demanding applications, this cable combines flexibility, durability, and safety, making it ideal for automotive, aerospace, medical, petrochemical, and commercial electronic uses.
The cable features stranded tin copper conductors with 7 strands of 0.127 mm each, facilitating increased flexibility and reliable connectivity. Its nominal diameter of 3.63 mm and jacket thickness of 0.81 mm allow it to fit easily in tight spaces, while the insulation thickness of 0.25 mm ensures excellent electrical isolation.
Rated for 300 volts and with an operating temperature range from -30°C to +105°C, the Pro-Tekt cable is both flame retardant and resistant to UV radiation, oil, and abrasion. Its grey PVC sheath also adds mechanical protection for robust industrial usage.
This cable is constructed to meet various international standards including CE, CSA Certified, and UL certifications, ensuring compliance with safety and quality benchmarks. It is suitable for environments requiring unshielded, multiconductor cables with low electromagnetic interference in controlled settings.
Constructed with stranded tin copper wire for enhanced flexibility. Features a grey polyvinyl chloride (PVC) jacket with flame retardant properties. Rated for 300V with operating temperature from -30°C up to 105°C. Designed with 3 color-coded conductors: black, brown, and red.
Nominal outside diameter of 3.63 mm enables easy installation in compact spaces. Cable series Pro-Tekt ensures robustness in industrial automation and commercial electronics. Complies with CE, CSA Certified, and UL standards for safety and performance.
Offers resistance to UV, oil, and abrasion, extending cable durability. Suitable for use in aerospace, medical devices, petrochemical, and power equipment industries.
The Alpha Wire Pro-Tekt Series Data Cable is an excellent choice for applications that demand flexible, durable, and reliable data transmission in industrial, laboratory, aerospace, and manufacturing environments. Explore the comprehensive range of cables in the EnvMart electronics catalog for similar high-quality products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Alpha Wire Pro-Tekt Series Data Cable is rated for 300 volts.
This cable operates within a temperature range of -30°C to +105°C.
The cable has 3 cores, which are color-coded as black, brown, and red.
The nominal outside diameter of this cable is 3.63 mm.
The conductors are made from stranded tin copper wire, consisting of 7 strands of 0.127 mm each.
It features an insulation thickness of 0.25 mm, providing excellent electrical isolation.
The jacket is made of grey polyvinyl chloride (PVC) and has flame retardant properties.
This cable complies with CE, CSA Certified, and UL standards for safety and performance.
The cable length is 50 meters.
It is suitable for use in aerospace, medical devices, petrochemical, and power equipment industries.
The cable is flame retardant, enhancing its safety in various applications.
The jacket thickness is 0.81 mm.
