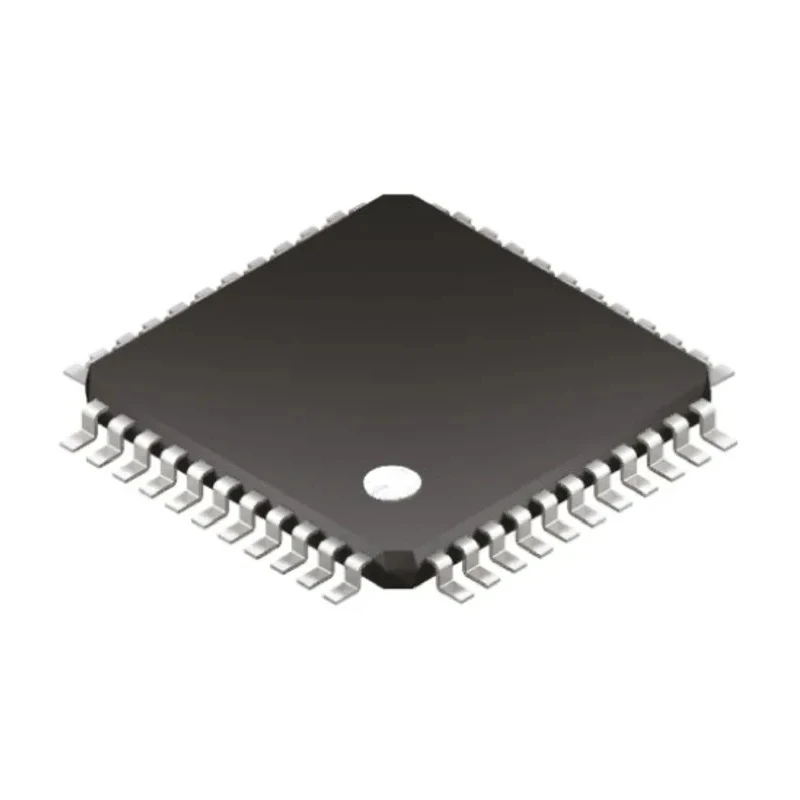

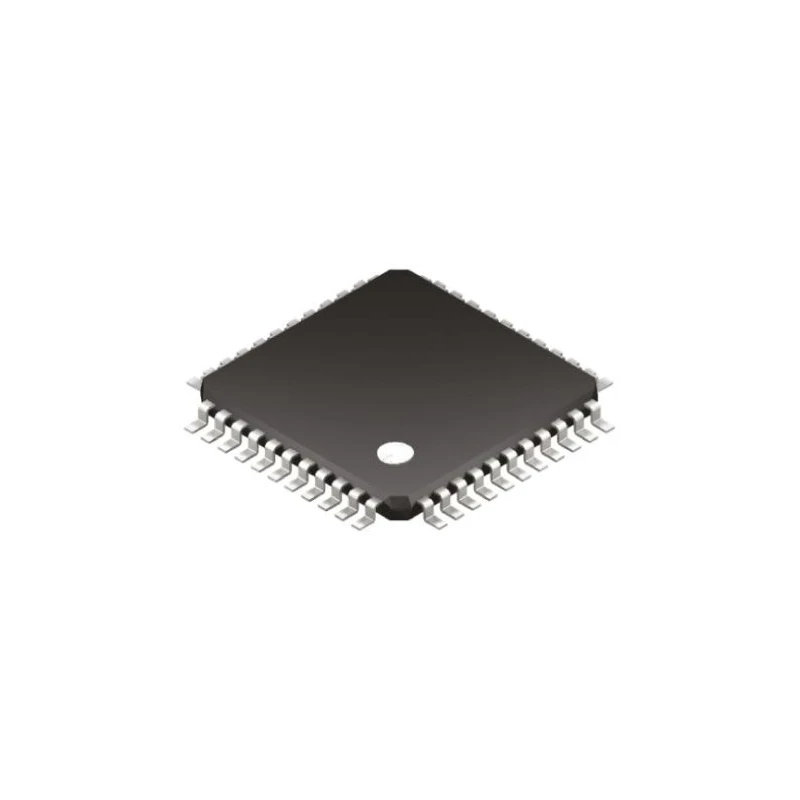

Microchip 8-Bit PIC Microcontroller 20 MHz 14kB FLASH 44-Pin TQFP PIC16F1517-I/PT
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | PIC16F1517-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC16F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 512bit |
| Standards/Approvals | RoHS |
| Pin Count | 44 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 800mW |
| Minimum Supply Voltage | 2.5V |
| Device Core | PIC |
| Program Memory Size | 14kB |
| Maximum Clock Frequency | 20MHz |
| Number of Programmable I/Os | 36 |
| Number of Timers | 2 |
| Instruction Set Architecture | RISC |
| ADCs | 28 x 10 Bit |
| Program Memory Type | FLASH |
Key Features
- Operates at a maximum voltage of 5.5V and a minimum of 2.5V.
- Contains 36 programmable input/output pins for versatile interfacing.
- Features 512-bit RAM and 14 kB of FLASH memory for program storage.
- Includes 28 channels of 10-bit ADC for analog signal processing.
- Supports enhanced mid-range PIC architecture with 49 instructions and 16-level hardware stack.
- Power dissipation is rated at a maximum of 800 mW for efficient operation.
- Operating temperature range from -40°C to 85°C for industrial applications.
- Package size measures 10 mm by 10 mm with a height of 1.05 mm.
Product Description
Microchip PIC16F1517-I/PT is an 8-bit PIC microcontroller featuring a 20 MHz maximum CPU speed and 14 kB of FLASH program memory housed in a 44-pin TQFP surface-mount package. Designed with Microchip's enhanced mid-range RISC architecture, it incorporates 49 instructions and a 16-level hardware stack, providing robust performance for a variety of embedded applications.
This device supports a voltage range from 2.5V to 5.5V and dissipates a maximum power of 800 mW, making it suitable for low power industrial and commercial electronics. It offers 36 programmable I/O pins, 512-bit RAM, and 28 channels of 10-bit ADC inputs, enabling precise analog-to-digital conversions critical for sensor interfacing and control systems.
The microcontroller is equipped with multiple timers, capture/compare/PWM modules, voltage reference modules, and communication peripherals including SPI, I2C via the Master Synchronous Serial Port (MSSP), and Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART). It supports power-on reset, power-up timer, programmable low power brown-out reset, and an extended watchdog timer to enhance system reliability.
Operates over an extended industrial temperature range from -40°C to 85°C. Compact package dimensions of 10 mm length x 10 mm width x 1.05 mm height. Compliant with RoHS standards for environmental safety. Ideal for use in industrial, consumer electronics, automotive, and communication systems.
Supports in-circuit serial programming and debugging for ease of development. Utilizes FLASH program memory with extended endurance and data retention. Country of origin: Thailand.
This Microcontroller is part of a versatile PIC16F series offering multiple pin and package options, providing flexibility to meet design requirements across various embedded system applications. Browse EnvMart's Microchip portfolio for compatible programmable controllers and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of the PIC16F1517-I/PT microcontroller is 20 MHz.
This microcontroller operates within a voltage range of 2.5V to 5.5V.
It features 36 programmable input/output pins for versatile interfacing.
The FLASH program memory size is 14 kB.
The operating temperature range is from -40°C to 85°C, suitable for industrial applications.
It includes 28 channels of 10-bit ADC for analog signal processing.
The PIC16F1517-I/PT is housed in a 44-pin TQFP surface-mount package.
It has a RAM size of 512 bits.
The maximum power dissipation is rated at 800 mW.
It supports SPI, I2C via the Master Synchronous Serial Port (MSSP), and Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART).
It is compliant with RoHS standards for environmental safety.
The height of the PIC16F1517-I/PT is 1.05 mm.
