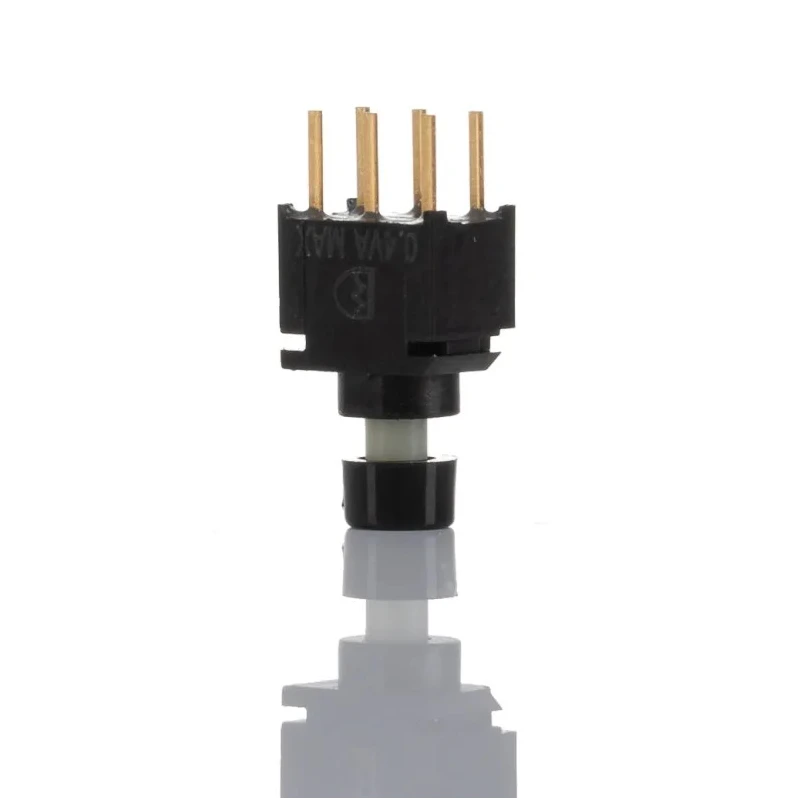

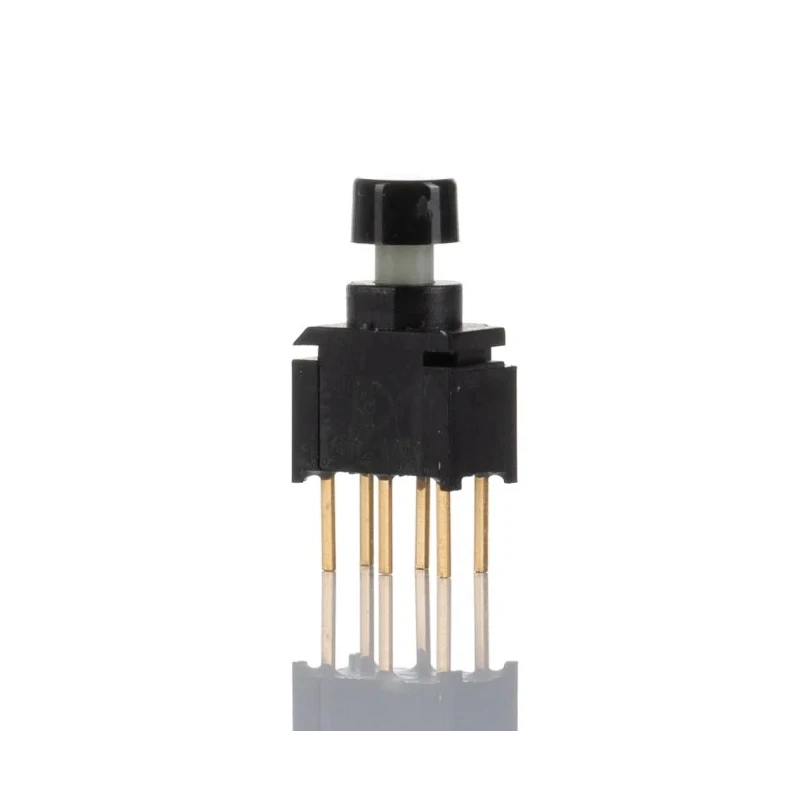

RS PRO Miniature Push Button Switch Momentary PCB DPDT Black LED IP67 20 V 7346763P

RS PRO 7346763P Miniature Push Button Switch is a high-quality momentary DPDT switch designed for PCB mounting and demanding environmental conditions. It features a robust glass filled nylon flame retardant case and cap manufactured to UL94V-0 standards, ensuring flame resistance and mechanical durability suitable for industrial and commercial electronics applications.

The switch employs gold plated copper contacts and terminals that prevent contact oxidation and maintain excellent electrical conductivity over its mechanical life of 40,000 cycles. It supports a 0.4VA contact rating at 20 V AC or DC, making it optimal for low power circuit switching in various devices.

The IP67 ingress protection rating ensures reliable dust and water resistance, allowing the switch to be used in harsh environments such as automotive, networking equipment, instrumentation, and control interfaces. Its operational temperature range from -30°C to 85°C further broadens its usability in diverse industrial, laboratory, and commercial setups.

Key electrical characteristics include a contact resistance typically below 100mΩ initially, insulation resistance of at least 500 MΩ, and dielectric strength up to 500 Vrms minimum, guaranteeing safety and consistent performance under operational stresses.

The push button actuator style is a momentary ON-(ON) type with a black cap that provides tactile feedback. This configuration allows for temporary switching functions commonly needed in control panels and small electronic devices.

Constructed from flame retardant glass filled nylon for case and actuator. Gold plated contacts and terminals for corrosion resistance and conductivity. IP67 rated for protection against dust and water ingress. Reliable mechanical life of 40,000 cycles for long-term use.

Low power contact rating at 0.4VA and 20 V AC/DC. Wide operating temperature from -30°C to 85°C for versatile use. Ideal for automotive, networking, instrumentation, and control applications. Momentary ON-(ON) push button actuator with black cap style.

High insulation resistance and dielectric strength for electrical safety. PCB mount through-hole terminal type for easy installation.

This RS PRO miniature Push Button Switch is engineered for use in industrial automation, electronic instrumentation, electrical controls, and similar sectors where a compact, reliable switching component is required. It meets RoHS compliance standards and is designed for professional quality and assured performance.
