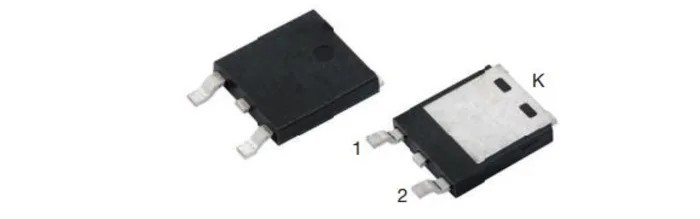

Vishay 45 V 20 A Rectifier & Schottky Diode Surface Mount TO-252 Package V20PW45CHM3/I
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.3mm |
| Length | 9.4mm |
| Model | V20PW45CHM3/I |
| Width | 6.32mm |
| Mount Type | Surface |
| Series | TMBS |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS and AEC-Q101, JESD 201 Class 2 whisker test |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 0.6V |
Key Features
- Surface mount package type optimized for ease of board assembly and low profile.
- Low forward voltage drop of 0.6 V enables high efficiency operation.
- Peak reverse repetitive voltage of 45 V supports robust transient operation.
- High surge current capability with 150 A peak non-repetitive forward surge current rating.
- Automotive AEC-Q101 qualified for reliability in demanding environments.
- Wide operating temperature range from -40°C to 150°C for versatile applications.
- Compact dimensions suitable for space-constrained electronic designs.
- Complies with RoHS and JESD 201 Class 2 whisker test standards.
Product Description
The Vishay V20PW45CHM3/I is a high current density rectifier and Schottky diode designed for surface mount applications with a TO-252 package.
This device features Trench MOS Schottky technology providing a low forward voltage drop of approximately 0.6 V which reduces power losses and improves efficiency in electronic circuits.
It supports a maximum continuous forward current of 20 A and a peak reverse repetitive voltage of 45 V. With a peak non-repetitive forward surge current rating of 150 A, it is engineered for robust transient handling capability.
The diode configuration includes 2x common cathode pairs, making it suitable for DC/DC converters, freewheeling diodes, and polarity protection applications.
This Vishay diode is automotive qualified under the AEC-Q101 standard, ensuring reliable performance in automotive and industrial environments, and meets RoHS compliance as well as the JESD 201 Class 2 whisker test.
Operating temperature ranges from -40°C minimum to 150°C maximum allows for use in harsh and high-temperature environments. Low forward voltage drop that enhances device efficiency. Compact dimensions: 9.4mm length, 6.32mm width, and 1.3mm height.
Surface mount TO-252 package suitable for automated placement processes. High surge current capacity for transient loads. Reliable for industrial, automotive, power supply, and telecommunications applications. The device is ideal for use in low voltage, high frequency DC/DC converters, freewheeling diodes, and polarity protection circuits.
Explore EnvMart’s extensive range of Schottky Diodes and rectifiers to find complementary components for your next electronic design project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this model is 20 A.
This diode has a peak reverse repetitive voltage rating of 45 V.
The forward voltage drop is approximately 0.6 V, which enhances efficiency in electronic circuits.
The dimensions of this model are 9.4 mm in length, 6.32 mm in width, and 1.3 mm in height.
It has a peak non-repetitive forward surge current rating of 150 A.
The operating temperature range is from -40°C to 150°C.
This diode is packaged in a TO-252 surface mount package, which is optimized for automated placement.
Yes, it is automotive qualified under the AEC-Q101 standard, ensuring reliability in demanding environments.
It features a diode configuration of 2x common cathode pairs, suitable for various applications.
This device complies with RoHS and is qualified under the JESD 201 Class 2 whisker test standards.
It is suitable for applications such as DC/DC converters, freewheeling diodes, and polarity protection circuits.
The country of origin for this diode is India.
