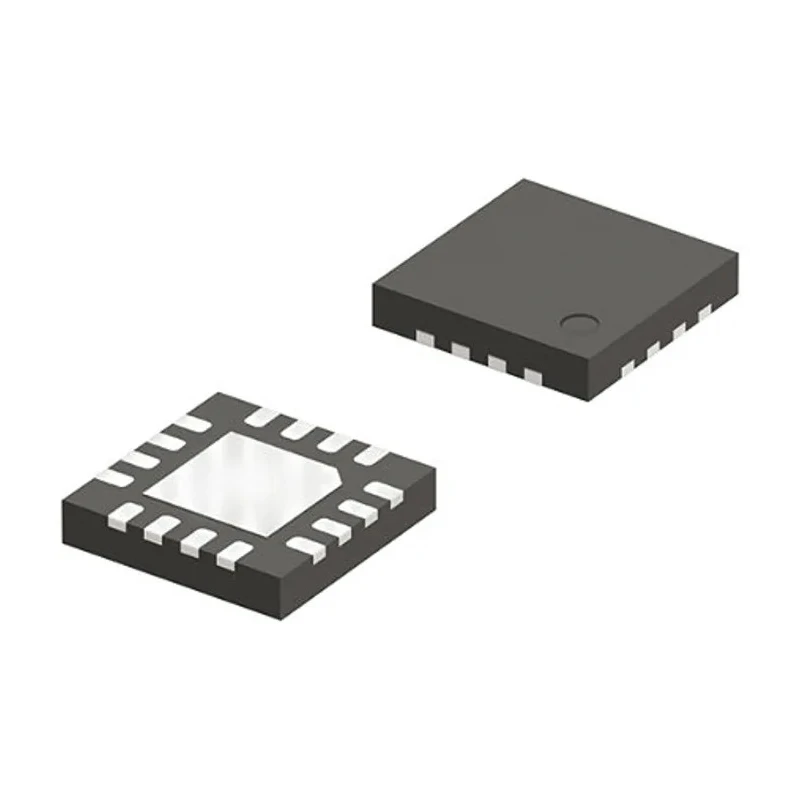

Vishay Multiplexer 1 CMOS Single 8:1, 16-Pin QFN DG9408EDN-T1-GE4

Vishay DG9408EDN-T1-GE4 is a 1 CMOS single 8-to-1 analogue multiplexer featuring 16 pins in a compact quad-flat no-leads (QFN) package. It provides flexible routing of one of eight input signals to a single output, optimized for mixed-signal environments requiring low power and minimal signal degradation.

The multiplexer supports a broad supply voltage range from -3V to 16V, accommodating a variety of system voltage levels. It exhibits a maximum on-state resistance of 26.5 ohms, ensuring minimal signal loss and high fidelity during switching. The small 4mm x 4mm footprint and 900μm height of the QFN package make it suitable for space-constrained PCB layouts while aiding thermal dissipation.

Designed for industrial, laboratory, and commercial electronics applications, this device allows signal routing in measurement instruments, data acquisition modules, and portable devices. It operates reliably within -40°C to 85°C, providing consistent performance across varied environmental conditions.

Featuring CMOS logic family control inputs, it interfaces easily with modern digital controllers and offers low static current consumption. The device is surface mountable, supporting standard reflow soldering processes for efficient manufacturing. Additional benefits include TTL-level compatible output drivers, making it suitable for mixed-logic-level systems.

Low on resistance 26.5Ω reduces signal loss for accurate analog switching. CMOS logic family enables efficient low-power signal control. Single 8:1 configuration simplifies multi-channel input selection. Wide supply voltage range (-3V to 16V) supports diverse system voltages.

Operates from -40°C to 85°C for enhanced environmental tolerance. Compact 16-pin QFN package saves PCB space and improves heat dissipation. Compatible with CMOS and TTL logic output levels for flexible interfacing. Suitable for industrial controllers, portable instrumentation, and data acquisition.

This multiplexer is ideal for use in industrial control systems, measurement and testing instruments, HVAC controls, and other electronics applications requiring compact and reliable signal multiplexing. Explore other Vishay semiconductors and multiplexers in the EnvMart catalog for your application needs.
