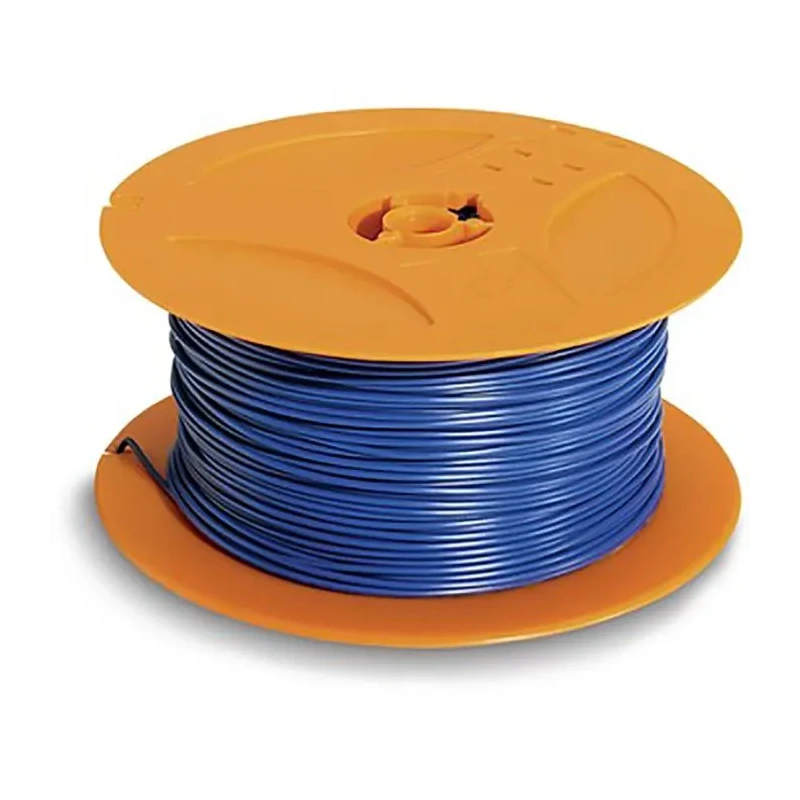

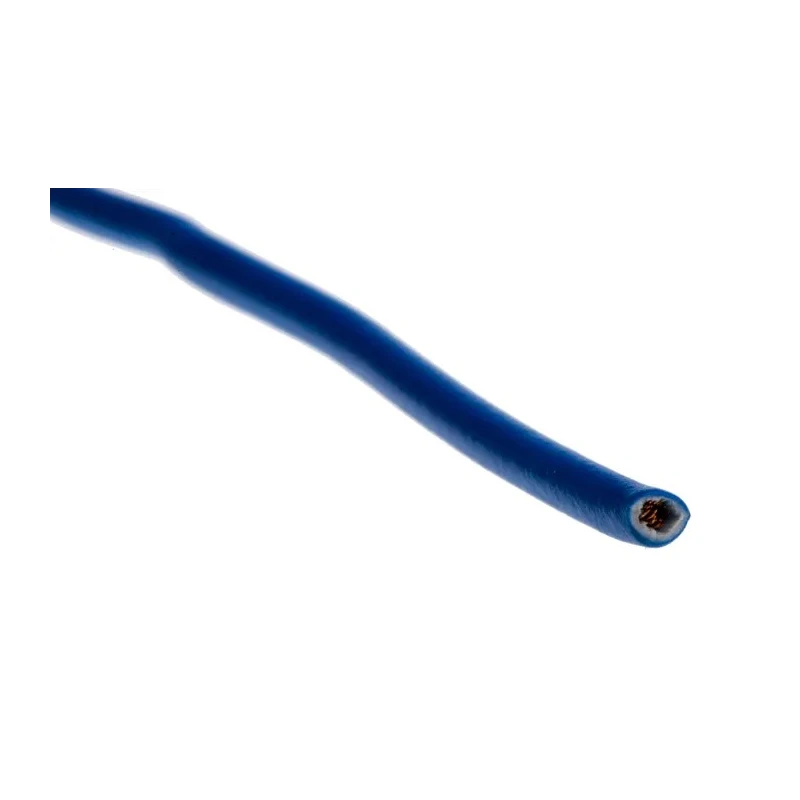

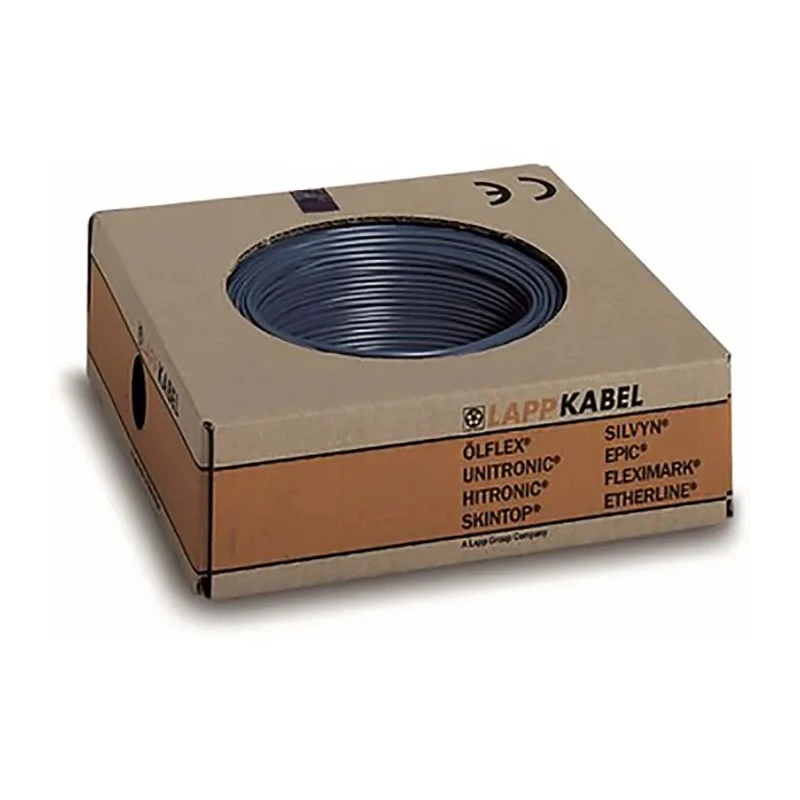

Lapp H05V-K Series Blue 0.75 mm² 24x32mm Strand Hook Up Wire 300/500V Polyvinyl Chloride 4510022

Free Delivery in India | Lowest Global Shipping Charges

Lapp H05V-K Series Blue 0.75 mm² 24x32mm Strand Hook Up Wire 300/500V Polyvinyl Chloride 4510022

Name: Lapp H05V-K Series Blue 0.75 mm² 24x32mm Strand Hook Up Wire 300/500V Polyvinyl Chloride 4510022
Brand: Lapp
SKU: 221606
Price: 65.7 USD
Availability: InStock



Category Hook Up Wire Brand Lapp Condition New

Specifications

Country of Origin	Germany
Voltage	300, 500V
Brand	Lapp
CROSS SECTIONAL AREA	0.75mm²
Model	4510022
Cable Length	100m
Series	H05V-K
Outside diameter	2.4mm
Maximum Operating Temperature	70°C
Conductor Material	Bare Copper
Sub Type	Single Core
Minimum Operating Temperature	-40°C
Jacket Material	Polyvinyl Chloride
Standards/Approvals	CE marked, HAR acc. to EN 50525-2-31
Jacket Colour	Blue
Number of Strands	24
Core Strands	24 x 32mm
Size of Strands	32mm

Key Features

Stranded bare copper conductor provides high conductivity and flexibility.
Polyvinyl chloride jacket offers flame retardancy and resistance to liquids, acids, and oils.
Suitable for fixed installations with a temperature range from -40°C to 70°C.
Minimum bend radius of four times the 2.4 mm diameter ensures ease of installation.
CE marked and compliant with HAR according to EN 50525-2-31 standards.
Flame retardant behavior certified to IEC 60332-1-2 and EN 60332-1-2.
Designed for electrical cabinets, power management, and fixed lighting installations.

Product Description

Lapp 4510022 Hook Up Wire is a premium quality single-core cable designed for demanding electrical applications requiring high reliability and safety. Featuring a stranded bare copper conductor with a cross-sectional area of 0.75 mm² and 24 strands of 32mm diameter, this wire combines excellent conductivity with flexibility to withstand frequent flexing and mechanical stress. The bright blue polyvinyl chloride jacket is flame retardant and resistant to liquids, acids, and oils, protecting the conductor in harsh environments.

This cable is rated for nominal voltages of 300 and 500 volts, making it ideal for low-power fixed installations such as wiring inside electrical cabinets and power management systems. Its operating temperature range from -40°C to 70°C supports use in varied ambient conditions, while the minimum bend radius of four times the 2.4 mm outside diameter facilitates installation in confined or complex areas.

This product complies with European CE marking requirements and HAR standards according to EN 50525-2-31, and features flame retardant properties certified to IEC 60332-1-2 and EN 60332-1-2, ensuring safety in case of fire. Manufactured in Germany, it represents high quality and durability in the hook up wire category.

Stranded bare copper conductor for excellent electrical performance and flexibility. Durable polyvinyl chloride insulation ensures resistance against acids, oils, and liquids. Wide operating temperature range suitable for demanding fixed installations.

Flame retardant jacket enhances fire safety compliance. Complies with CE marking and EN 50525-2-31 standards for assured quality. Ideal for wiring in electrical cabinets, power distribution, and fixed lighting. Manufactured in Germany ensuring high quality and reliability.

Choose Lapp H05V-K Series Hook Up Wire for applications requiring dependable electrical performance, flame retardant safety, and easy installation in industrial, commercial, and residential settings. Explore more products in our Wires & Cables category at EnvMart.
