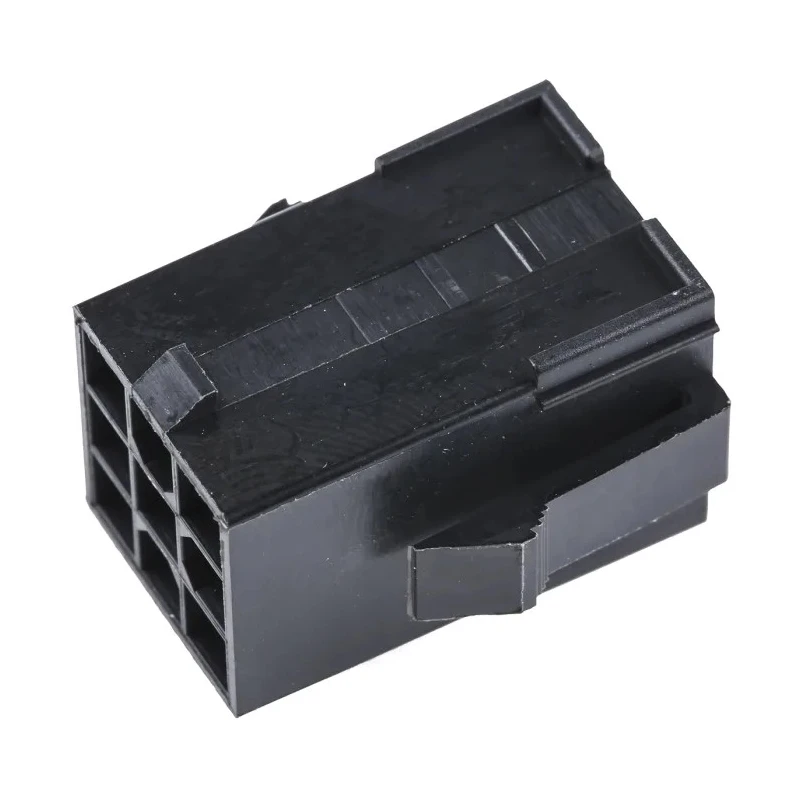

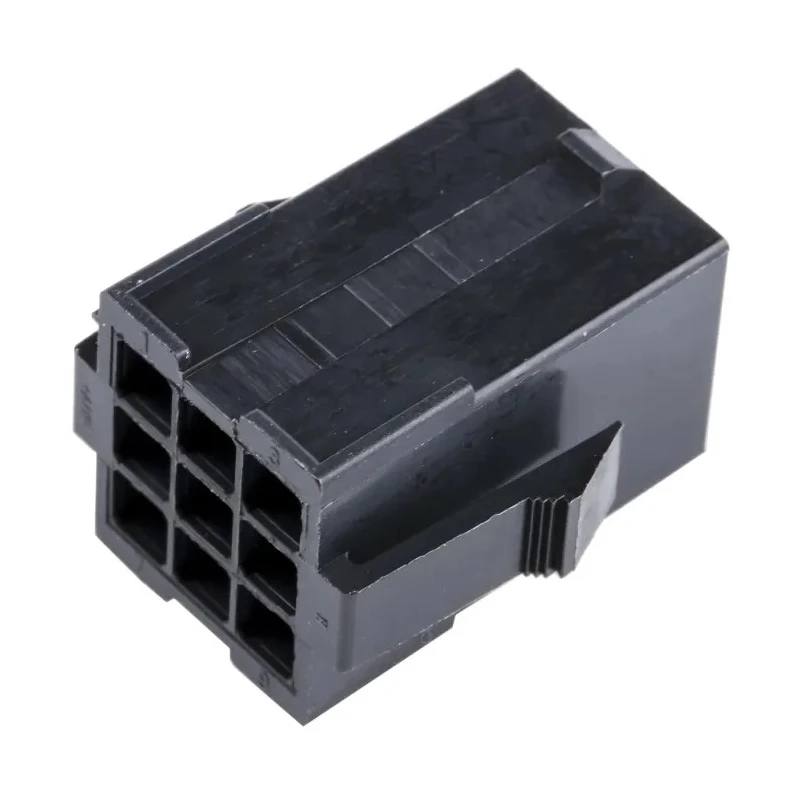

TE Connectivity Mini-Universal MATE-N-LOK Female Connector Housing 4.2 mm Pitch 9 Way 3 Row Straight 1-172161-9
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 22mm |
| Width | 16mm |
| Mount Type | Panel |
| Housing Material | Nylon |
| Series | Mini-Universal MATE-N-LOK |
| Number of Rows | 3 |
| Pitch | 4.2mm |
| For Use With | Centerline Connector |
| Number of Contacts | 9 |
| Connector Gender | Female |
Key Features
- Constructed from robust Nylon 66 material for durability and temperature resistance.
- Designed with full polarization to ensure proper mating and prevent incorrect connections.
- Supports current ratings up to 9.5 A max per line for reliable electrical performance.
- Suitable for wire to wire and wire to board applications using the Mini-Universal MATE-N-LOK system.
- Compact size with length 22 mm and width 16 mm for space-efficient installations.
- Accepts male or female contacts for versatile wiring configurations.
- Mount type is panel mount ensuring stable fixture in assemblies.
- 3-row, 9-way contact layout offers multiple connection paths in one housing.
Product Description
TE Connectivity 1-172161-9 Mini-Universal MATE-N-LOK Female Connector Housing is engineered for high reliability and excellent electrical performance in demanding industrial and electronic environments. It features a 4.2 mm pitch with 9 contacts arranged across 3 rows in a straight orientation suitable for panel mounting applications.
The housing is molded from sturdy Nylon 66, providing strength and resistance to thermal and mechanical stress, which supports continuous operation between -20°C and +105°C. The fully polarized design guarantees correct connector mating, preventing reverse connections and ensuring system integrity.
This connector housing is part of the Mini-Universal MATE-N-LOK family, widely used for wire-to-wire and wire-to-board connections in industrial, manufacturing, construction, and electronic equipment sectors.
Key mechanical dimensions include a length of 22 mm and width of 16 mm, making it ideal for compact installation spaces. It supports current ratings up to 9.5 A max per contact, ensuring dependable power transmission in medium load applications.
The panel mount design simplifies integration into equipment housings or control panels, and it can accommodate both male and female contacts, offering flexibility in wiring and assembly configurations. This 9-way, 3-row connector housing enables multiple circuit connections within a single compact unit.
Robust Nylon 66 material construction for durability. Polarised to prevent incorrect mating. Supports up to 9.5 A per line current rating. 4.2 mm pitch with 9 contacts in 3 rows. Panel mount for secure installation. Length 22 mm and width 16 mm compact size.
Accepts both male and female contacts. Wide operating temperature range (-20°C to +105°C). Ideal for industrial, manufacturing, electronic and construction use.
This product is an essential component for electrical and electronic assembly requiring reliable and compact Connector Housings. Browse the Connectors category at EnvMart for more TE Connectivity solutions and compatible accessories to enhance your system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports current ratings up to 9.5 A max per contact, ensuring reliable electrical performance in medium load applications.
The pitch size is 4.2 mm, which is standard for this connector type.
This model features 9 contacts arranged in a 3-row layout.
The connector housing has a length of 22 mm and a width of 16 mm, making it compact for installations.
It is constructed from robust Nylon 66, providing durability and resistance to thermal and mechanical stress.
Yes, it features a fully polarized design to ensure proper mating and prevent incorrect connections.
It is designed for panel mounting, ensuring stable fixture in assemblies.
It can operate continuously between -20°C and +105°C, suitable for various environments.
Yes, it accepts both male and female contacts, offering flexibility in wiring configurations.
It is suitable for wire-to-wire and wire-to-board applications in industrial, manufacturing, and electronic sectors.
The orientation is straight, which is typical for panel mount applications.
The country of origin for this connector housing is India.
