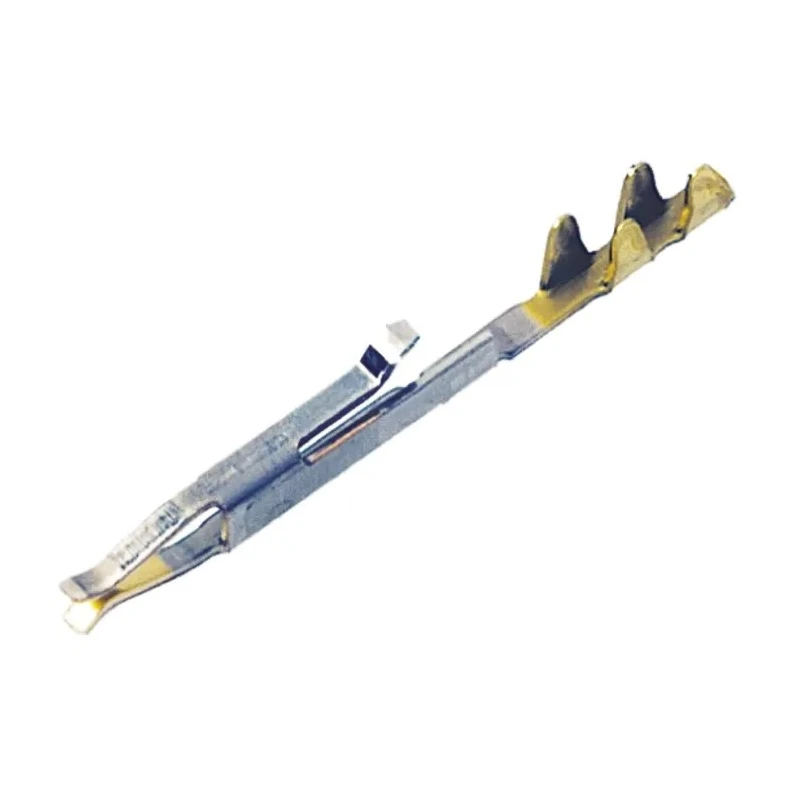

TE Connectivity FFC Series Female Crimp Terminal Gold Plated Phosphor Bronze 1.5A Current 12.01mm Length 1-487547-1

TE Connectivity 1-487547-1 FFC Series Female Crimp Terminal is a finely engineered connector designed for reliable and high-performance electrical connections in electronic systems. It supports wire sizes ranging from 26 AWG minimum to 22 AWG maximum, accommodating flexible flat cables with copper conductors sized 0.66 mm wide by 0.08 mm thick.

The contact is made from phosphor bronze, which provides excellent durability and electrical conductivity. The contact area is plated with 0.76 μm (30 μinch) of gold offering superior corrosion resistance and low contact resistance of a maximum 25 mΩ. The crimp area is tin plated, ensuring robust mechanical connection after termination.

This female crimp terminal is intended for use with the FCC connector housing as part of the AMPMODU System 50 interconnection system, which features a compact and high-density design with 1.27 x 2.54 mm contact spacing. This system is well suited for high-density PCB applications in industrial, electronic, communications, automotive, and other commercial equipment.

The terminal operates reliably over a temperature range of -55°C to 105°C, making it suitable for harsh environments and demanding thermal conditions. Its length of 12.01 mm ensures a compact footprint allowing efficient use of PCB real estate.

Gold plating on contact areas for corrosion resistance and reliable signal integrity. Phosphor bronze contact material ensures high conductivity and mechanical strength. Crimp termination type designed for secure and durable cable connections.

Supports wire sizes from 26 AWG to 22 AWG, compatible with commonly used FFC cables. Part of AMPMODU System 50 - a space-saving electronic interconnection system. Suitable for electronics, industrial automation, automotive, and communication applications.

Designed for reliable operation at temperatures from -55°C to 105°C. Low maximum contact resistance of 25 mΩ ensures minimal signal loss.

TE Connectivity’s 1-487547-1 terminal is supplied on reels for efficient assembly workflows, improving production speed and consistency. It is an essential component for engineers and manufacturers designing compact, high-density PCB connections requiring reliable crimp terminals. Explore EnvMart's extensive selection of connectors and Crimp Contacts for your next industrial or commercial electronics project.
