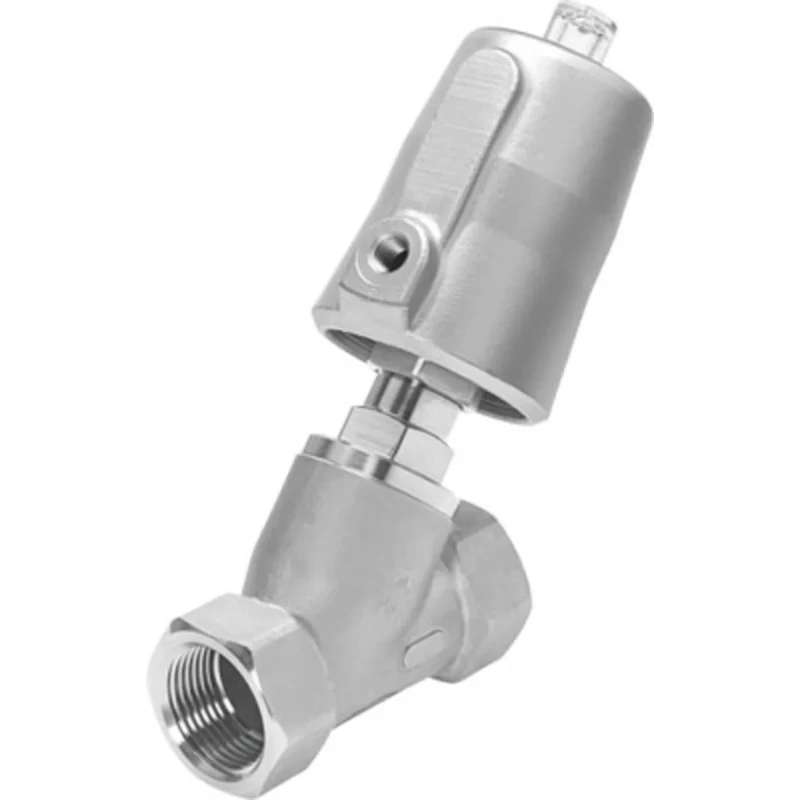

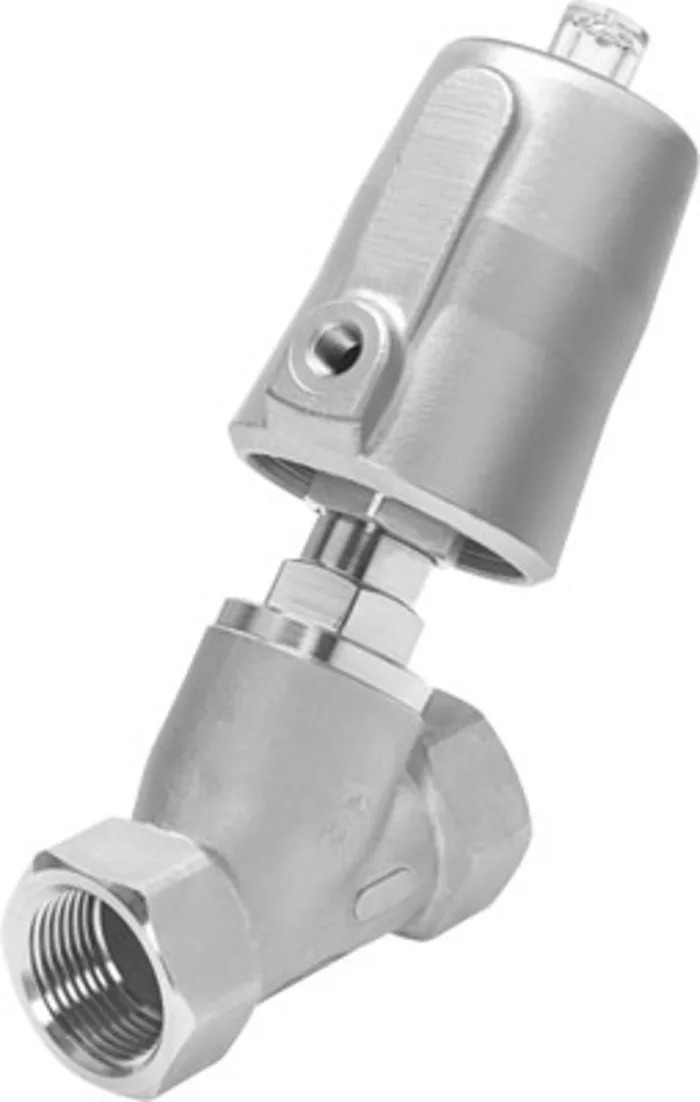

Festo Pneumatic Actuated Valve Angle Seat 1.25 in 40 bar Threaded VZXF-L-M22C-M-B-G114-290-M1-H3B1T-50-7
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Maximum Operating Pressure | 40 bar |
| Inlet Connection Type | Threaded |
| Model | VZXF-L-M22C-M-B-G114-290-M1-H3B1T-50-7 |
| Valve Type | Angle Seat |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Valve Material | Gunmetal (Red Brass) |
| Inlet Port Size | 1.25 in |
| Default Valve Position | NC |
| Outlet Thread Standard | G |
| Return Type | Spring |
Key Features
- Constructed with gunmetal (red brass) valve material for durability.
- Operates at temperatures from -10°C to 60°C.
- Valve position is normally closed with spring return mechanism.
- Threaded connections conform to G standard for reliable sealing.
- Suitable for controlling liquids, gases, and easily contaminated media.
- Sturdy stainless steel and brass actuator components ensure long service life.
- Flow direction is freely selectable to adapt to system needs.
- Easy-to-clean valve design enhances maintenance efficiency.
Product Description
Festo VZXF-L-M22C-M-B-G114-290-M1-H3B1T-50-7 pneumatic actuated valve is an angle seat type valve designed for industrial fluid control applications. It features threaded connections with 1.25 inch inlet and outlet ports, allowing easy integration into piping systems.
The valve body is made from gunmetal (red brass), combining corrosion resistance with mechanical strength. The actuator housing is constructed from stainless steel and brass, providing durability under demanding operating conditions. This valve operates safely up to a maximum pressure of 40 bar, with a temperature range from -10°C to 60°C, suitable for various industrial fluids including liquids, gases, and other easily contaminated media.
The valve's normally closed (NC) safety position and spring return type ensure reliable shut-off and control in pneumatic systems. Thread standards conform to G thread type for consistent connectivity. Flow direction can be freely selected, enhancing installation flexibility.
This valve's easy-to-clean design reduces downtime during maintenance, making it suitable for industries such as manufacturing, chemical processing, water treatment, and HVAC systems. The robust construction and materials used guarantee long operational life and safety compliance for heavy-duty industrial applications.
Gunmetal valve body with stainless steel and brass actuators. Designed for operating pressures up to 40 bar safely. Suitable for liquids, gases, and contaminated media. Spring-return actuator ensures normally closed valve position.
Threaded inlet and outlet connections (1.25 in, G standard). Temperature operation range from -10°C to 60°C. Selectable flow direction for installation flexibility. Manufactured in Germany to high industrial standards. Easy to clean and maintain valve assembly.
Explore the extensive selection of pneumatic actuated Valves on EnvMart to find compatible components for your industrial fluid control systems.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic actuated valve is 40 bar.
This model operates within a temperature range of -10°C to 60°C.
The valve body is made from gunmetal (red brass), while the actuator components are constructed from stainless steel and brass.
This model is an angle seat valve designed for industrial fluid control applications.
The default valve position is normally closed (NC) with a spring return mechanism.
The inlet port size is 1.25 inches, featuring threaded connections that conform to G standards.
Yes, the flow direction can be freely selected to adapt to system needs.
This valve is manufactured in Germany to high industrial standards.
It is suitable for controlling liquids, gases, and easily contaminated media.
The valve features an easy-to-clean design that enhances maintenance efficiency and reduces downtime.
The outlet connection conforms to G thread standards for reliable sealing.
This valve is suitable for industries such as manufacturing, chemical processing, water treatment, and HVAC systems.
