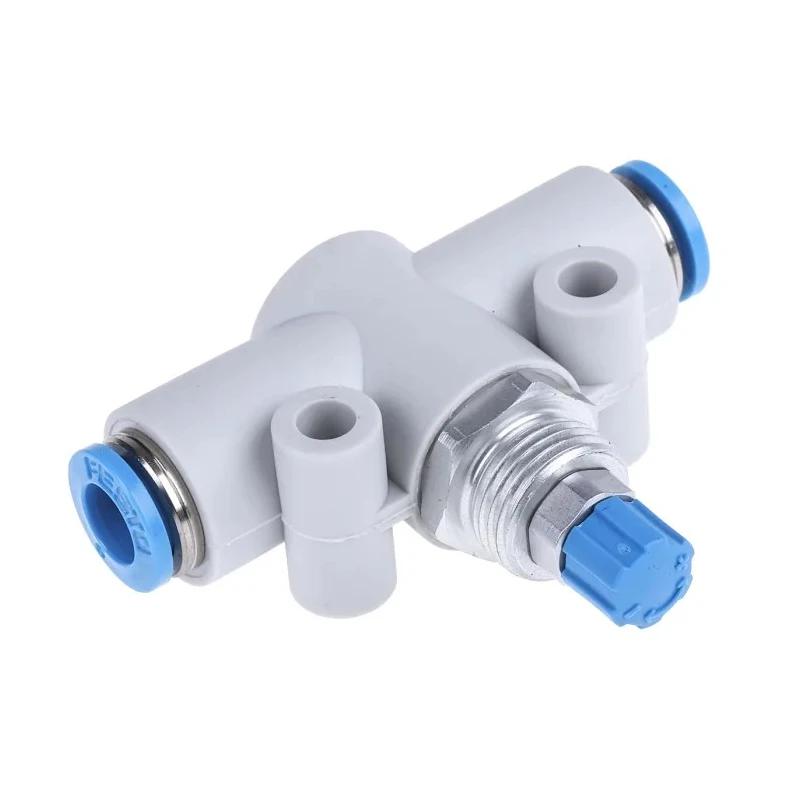

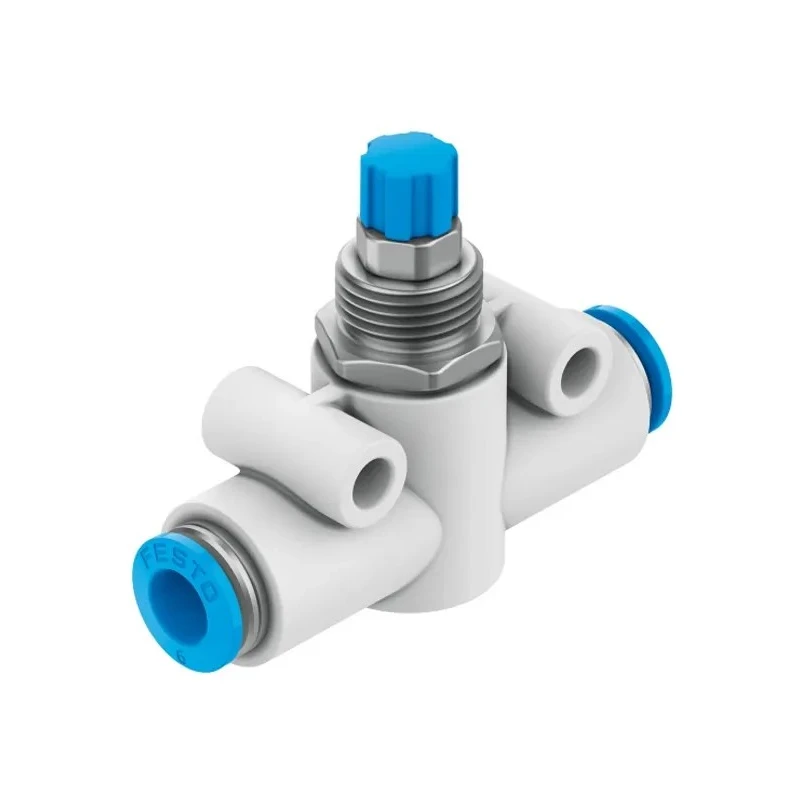

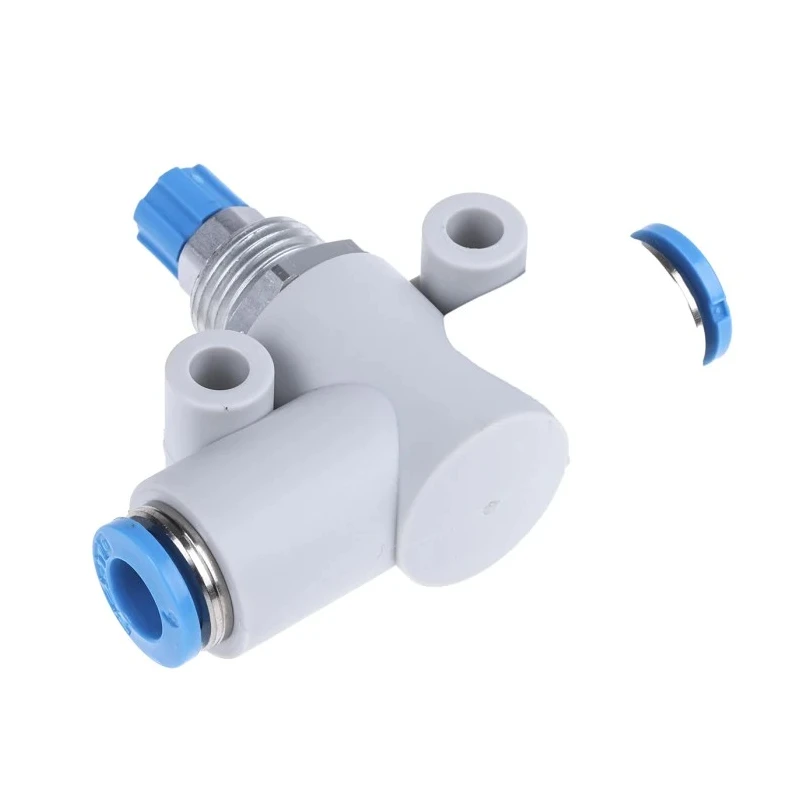

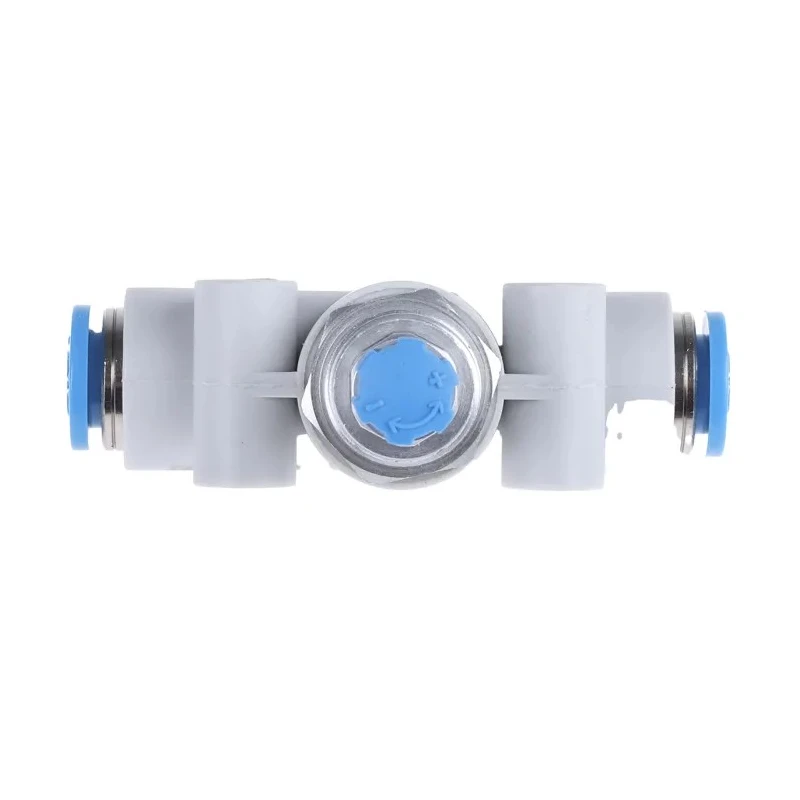

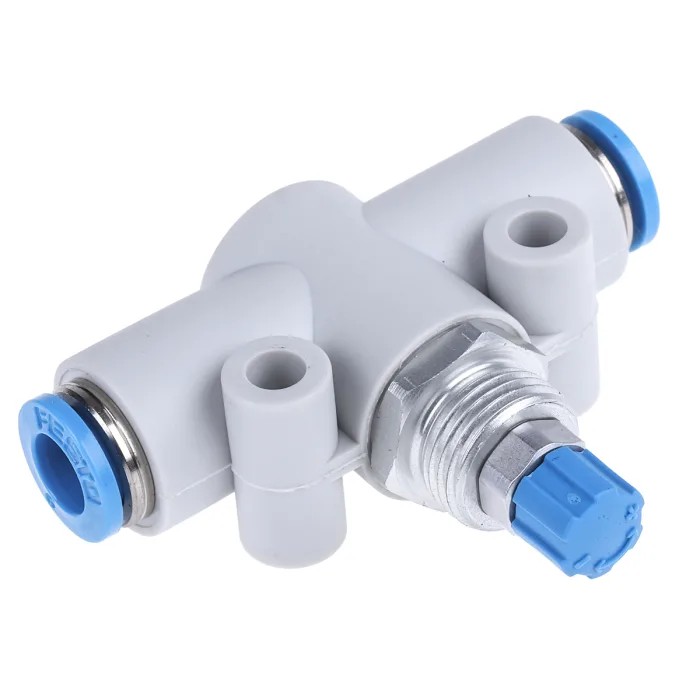

Festo GR Series In-Line Installation Flow Valve, Inlet Female, Outlet Female Tube, Maximum Pressure 15 bar, Model GR-QS-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | Festo |
| Material | High Alloy Steel, Die Cast Zinc, Galvanised Steel, Nitrile Rubber (NBR), Wrought Aluminium Alloy, Brass, Polyamide Reinforced, POM |
| Maximum Operating Pressure | 15 bar |
| Outlet Connection Type | Tube |
| Model | GR-QS-6 |
| Series | GR |
| Maximum Operating Temperature | 75°C |
| Sub Type | In-Line Installation |
| Minimum Operating Temperature | -20°C |
| Proof Pressure | 6bar |
| Standards/Approvals | ISO8573-1:2010, RoHS Compliant |
| Minimum Operating Pressure | 0.1bar |
| Inlet Port Gender | Female |
| Standards/Approvals ISO8573-1 | 2010, RoHS Compliant |
| Festo GRA Series Flow Controller Flow Valve, 6509Brand | Festo |
Key Features
- Adjusts flow to maintain a constant rate despite pressure and temperature changes.
- Push-in tube connector ensures easy and quick installation.
- Wide operating temperature range from -20°C to 75°C.
- Corrosion-resistant high-alloy steel adjusting screw for durability in industrial environments.
- PA-reinforced housing resists impact and wear for extended service life.
- Suitable for use with compressed air and water flow applications.
- Nominal flow rate of 230 litres per minute for high-speed performance.
- Wide operating pressure range from 0.1 bar to 15 bar for versatile applications.
Product Description
Festo GR-QS-6 In-Line Installation Flow Valve offers reliable flow rate regulation for pneumatic systems. With female inlet and outlet tube connections sized at 6mm, this valve ensures easy integration into existing pneumatic setups. Its robust construction combines high alloy steel, die-cast zinc, galvanised steel, nitrile rubber (NBR), aluminium alloy, brass, polyamide reinforcements, and POM materials, providing durability and resistance in demanding industrial environments.
The valve maintains a steady flow despite fluctuations in pressure or temperature, which is vital for applications requiring constant speed control of compressed air or water.
The mechanism features a corrosion-resistant high-alloy steel adjusting screw and a PA-reinforced housing to withstand wear and impact. It operates effectively within a broad temperature range of -20°C to 75°C and a maximum operating pressure of 15 bar, making it suitable for harsh industrial conditions.
The valve's nominal flow rate is 230L/min, allowing it to handle high-speed operations efficiently. Its NBR seals prevent leakage, enhancing the pneumatic system's overall efficiency and reliability.
Adjusts flow to maintain a constant rate despite pressure and temperature variations. Push-in tube connector for straightforward hose attachment. Wide temperature and pressure operating range. Corrosion-resistant components for long service life.
Compact and flexible installation design. Suitable for compressed air and water flow applications. Sealed construction minimizes leakage. Complies with ISO8573-1:2010 and RoHS standards. Proof pressure of 6 bar ensures safety beyond normal operating pressure.
This valve is commonly used in bottling systems, agricultural machinery, automotive industry equipment, and aerospace engineering, wherever dependable pneumatic flow control is critical.
Explore the extensive range of industrial Valves and fittings suitable for pneumatic and hydraulic systems at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this flow valve is 15 bar.
It is constructed from high alloy steel, die-cast zinc, galvanised steel, nitrile rubber (NBR), wrought aluminium alloy, brass, polyamide reinforced materials, and POM.
The nominal flow rate of this valve is 230 litres per minute.
The operating temperature range for the GR-QS-6 is from -20°C to 75°C.
This model features female inlet and outlet tube connections, both sized at 6mm.
It complies with ISO8573-1:2010 and is RoHS compliant.
The proof pressure for the GR-QS-6 is 6 bar.
This valve is suitable for use in compressed air and water flow applications, including bottling systems and agricultural machinery.
It adjusts flow to maintain a constant rate despite fluctuations in pressure and temperature.
The minimum operating pressure for this model is 0.1 bar.
It features a corrosion-resistant high-alloy steel adjusting screw and a PA-reinforced housing to withstand wear and impact.
This valve is designed for in-line installation.
