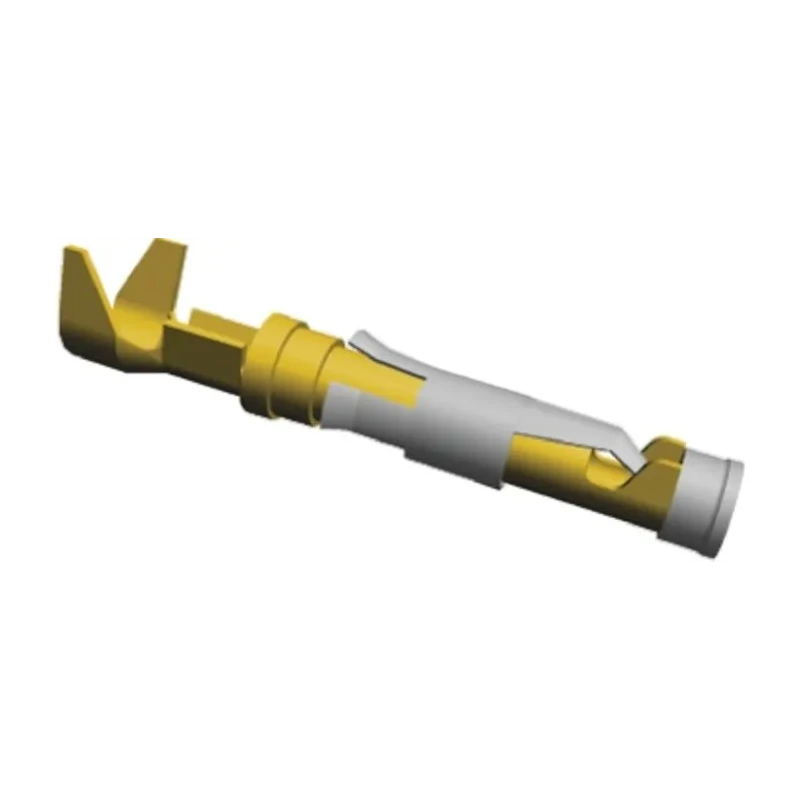

TE Connectivity Type III Series Female Crimp Terminal, 24 AWG Min Crimp, 20 AWG Max, 13A, Brass Contact, Gold 66563-8
Specifications
| Country of Origin | Mexico |
|---|---|
| Brand | TE Connectivity |
| Current | 13A |
| Length | 13.46mm |
| Model | 66563-8 |
| Gender | Female |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| For Use With | G Series, M Series and Metrimate Connector Housings, CPC |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
Key Features
- Constructed with brass contact material for durability.
- Gold plating on contacts ensures excellent conductivity and corrosion resistance.
- Suitable for use with G Series, M Series, and Metrimate connector housings including CPC.
- Crimp termination type provides secure electrical and mechanical connection.
- Operates reliably within temperature range from -55°C to 150°C.
- Designed to prevent damage from misalignment with closed-ended mating entry.
- Stainless steel spring offers superior retention and high normal force for low resistance in signal applications.
- Manufactured in Mexico ensuring quality and compliance.
Product Description
TE Connectivity 66563-8 Type III Series Female Crimp Terminal is a high-quality uninsulated signal contact designed specifically for 24 to 20 AWG wires with a current rating of 13A. It features a robust brass contact material with gold plating to provide excellent electrical conductivity and resistance to corrosion, making it suitable for critical applications such as dry circuit signals.
The crimp termination ensures a secure mechanical and electrical connection compatible with G Series, M Series, and Metrimate connector housings, including CPC types. The contact length of 13.46mm offers precise fitment in connector assemblies. Its closed-ended mating entry design prevents damage caused by misalignment or stubbing, thereby enhancing durability.
Operating effectively in temperature ranges from -55°C up to 150°C, this terminal caters to demanding environments. A stainless steel spring delivers a high normal force to maintain retention in the connector housing and to minimize contact resistance, ensuring signal integrity.
Manufactured in Mexico under strict quality control, these terminals are suitable for use in industrial automation, electronics manufacturing, HVAC systems, and other commercial and industrial sectors requiring reliable wire terminations.
Package options include reels with large quantities suitable for efficient insertion machinery, improving production throughput and cost-effectiveness. Constructed with brass contact material for durability. Gold plating on contacts ensures excellent conductivity and corrosion resistance.
Compatible with G Series, M Series, and Metrimate connector housings, CPC. Crimp termination enables robust electrical and mechanical connection. Operates within temperature range from -55°C to 150°C. 13.46mm contact length provides precise fitting.
Closed-ended mating entry to prevent contact damage. Stainless steel spring ensures high normal force and retention. Manufactured in Mexico to quality standards. Ideal for electronics, industrial, and manufacturing applications.
Explore the wide range of TE Connectivity Crimp Contacts in the EnvMart catalog for dependable and high-performance connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a current rating of 13A.
It operates effectively within a temperature range from -55°C to 150°C.
This terminal is designed for use with wire sizes from 24 AWG (0.2 mm²) to 20 AWG (0.6 mm²).
It is compatible with G Series, M Series, and Metrimate connector housings, including CPC types.
The contact material is brass, which is plated with gold for enhanced conductivity and corrosion resistance.
The contact length is 13.46mm, providing precise fitment in connector assemblies.
This terminal uses a crimp termination type, ensuring a secure electrical and mechanical connection.
It features a closed-ended mating entry design that prevents damage caused by misalignment or stubbing.
A stainless steel spring provides high normal force, ensuring superior retention and minimizing contact resistance.
It is manufactured in Mexico under strict quality control standards.
This terminal is suitable for use in industrial automation, electronics manufacturing, HVAC systems, and other commercial and industrial sectors.
