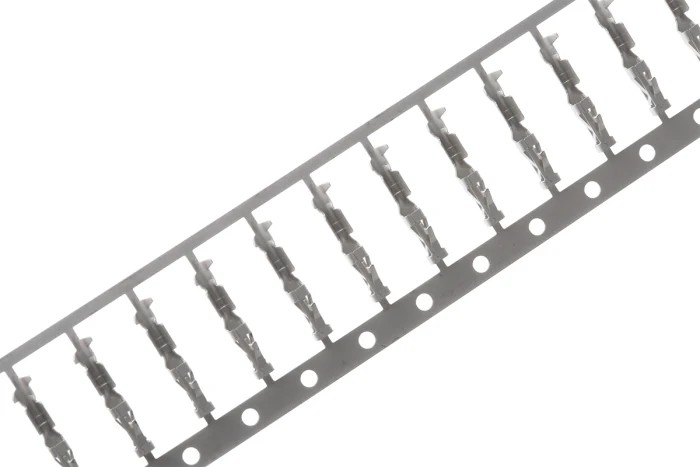

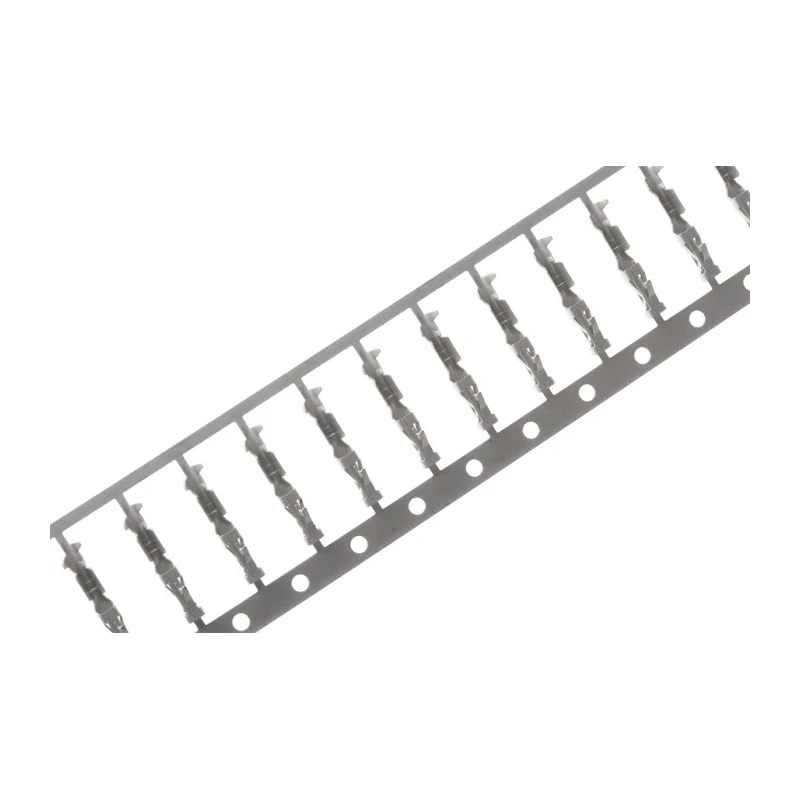

TE Connectivity AMPMODU Short Point Series Female Crimp Terminal 3A Current, 26-22 AWG 1-104480-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 11.68mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | AMPMODU Short Point |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU Short Point and AMPMODU MTE Connector Housings |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Designed for use with AMPMODU Short Point and AMPMODU MTE connector housings.
- Constructed from copper alloy with tin plating for durability and corrosion resistance.
- Crimp termination ensures a reliable, secure electrical connection.
- Operating temperature range from -65°C to 105°C suitable for demanding environments.
- Compact length of 11.68mm optimized for PCB connector applications.
- Maximum contact resistance of 12 milliohms maintains electrical efficiency.
- Snap-in receptacle design with locking lance for secure fit in housings.
- Supports maximum wire insulation diameter of 1.52mm for flexible wiring options.
Product Description
TE Connectivity 1-104480-7 AMPMODU Short Point Series Female Crimp Terminal is a high-quality crimp contact designed to mate with 0.64mm square or round posts measuring between 4.29 to 6.58mm in length. This female crimp terminal is engineered for use with AMPMODU Short Point and AMPMODU MTE connector housings forming a complete wire-crimp system ideal for PCB connectors.
Manufactured from robust copper alloy and coated with tin plating, this terminal provides excellent electrical conductivity and corrosion resistance. It supports wire sizes ranging from 26 AWG (0.1mm²) minimum to 22 AWG (0.4mm²) maximum, with a current rating of 3 amperes, ensuring reliable performance in electronic and industrial applications.
The terminal features a locking lance snap-in design to secure the contact firmly within the housing and maintain stable electrical connections. The compact length of 11.68mm allows integration in confined spaces on printed circuit boards and connector assemblies.
With operating temperatures ranging from -65°C up to 105°C, this component is suitable for a broad range of environments including industrial machinery, electronic devices, and power distribution systems. The maximum contact resistance is limited to 12 milliohms to guarantee low electrical loss and high efficiency.
This part is a direct replacement contact suitable for maintenance or new assembly projects involving AMPMODU connectors. It supports a maximum wire insulation diameter of 1.52mm, enabling compatibility with standard wiring insulation thicknesses.
Designed for AMPMODU Short Point and MTE connector housings compatibility. High durability copper alloy contacts with tin plating. 3A current rating suitable for various low power electronics. Crimp termination type ensures secure connections.
Broad temperature range adapts to harsh usage conditions. Compact size for efficient PCB layout integration. Low contact resistance for superior electrical performance. Snap-in receptacle design with locking lance prevents disconnections.
Facilitates easy assembly and replacement in connector systems. Perfect for electronics manufacturing and industrial automation uses.
Explore EnvMart's extensive range of Connectors, crimp terminals, and electronic components to find compatible products and accessories. Benefit from comprehensive industrial cataloging for your procurement needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 3 amperes.
This terminal supports wire sizes ranging from 26 AWG (0.1mm²) to 22 AWG (0.4mm²).
The length of this crimp terminal is 11.68mm.
It is constructed from copper alloy and features tin plating for corrosion resistance.
The operating temperature range for this terminal is from -65°C to 105°C.
This terminal is designed for use with AMPMODU Short Point and AMPMODU MTE connector housings.
The maximum contact resistance is limited to 12 milliohms.
This terminal features a crimp termination type, ensuring a secure electrical connection.
It has a snap-in receptacle design with a locking lance to secure the contact within the housing.
This terminal supports a maximum wire insulation diameter of 1.52mm.
The country of origin for this product is India.
