| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 7A |
| Length | 17mm |
| Model | 172782-5 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini AMP-IN |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini AMP-IN Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.12mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 3mΩ |

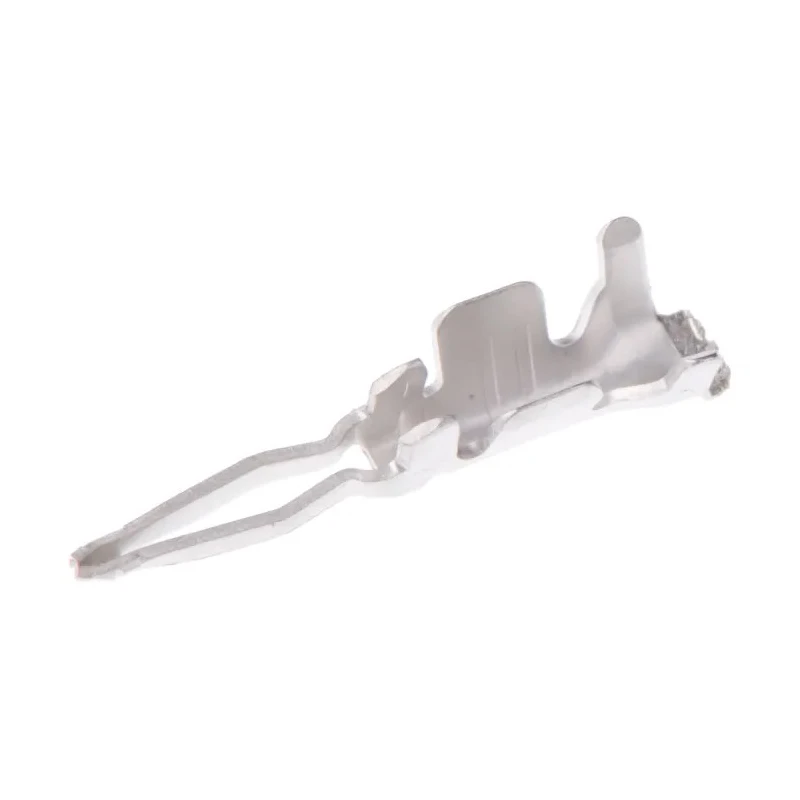

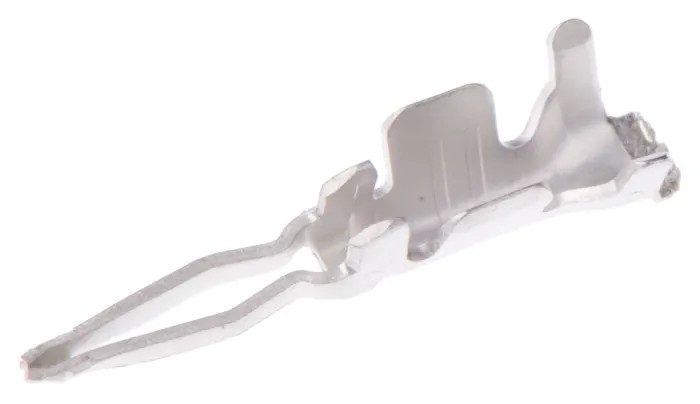

TE Connectivity 172782-5 is a Mini AMP-IN Series female crimp terminal designed for secure wire-to-board and wire-to-wire electrical connections. It accommodates wire sizes from 26 AWG (minimum) up to 22 AWG (maximum) with a current rating of 7 amperes. The contact is made of brass and plated with tin to provide excellent conductivity and resistance to corrosion.
This crimp terminal is ideal for applications requiring a low profile connector with a compact 17 mm length. Its crimp termination type ensures a reliable mechanical and electrical connection, facilitating efficient assembly for electronic components and power connectors.
Operating reliably in temperatures ranging from -40°C to 105°C, it suits various industrial, automotive, and electronic manufacturing environments. The terminal is designed without specific approvals but meets industry expectations for general use connectors.
Designed for Mini AMP-IN connector housing applications. Constructed with brass contact material for durability. Tin plating ensures reliable electrical contact and corrosion resistance. Crimp termination type allows secure mechanical and electrical connection.
Operates within a temperature range from -40°C to 105°C. Low contact resistance of 3 milliohms for efficient conductivity. Compact length of 17 mm suitable for low profile connection requirements. Suitable for wire-to-board and wire-to-wire connections.
Current rating of 7 amperes supports moderate power electrical circuits. None applicable for standards or approvals.
This product is typically used in industrial electronics assembly, automotive wiring harnesses, and other electrical applications requiring reliable crimp contacts. TE Connectivity's Mini AMP-IN terminals facilitate efficient production and secure electrical connectivity in a compact form factor.
Explore more connectors and Crimp Contacts to find compatible components for your electronic and electrical system needs at EnvMart.
