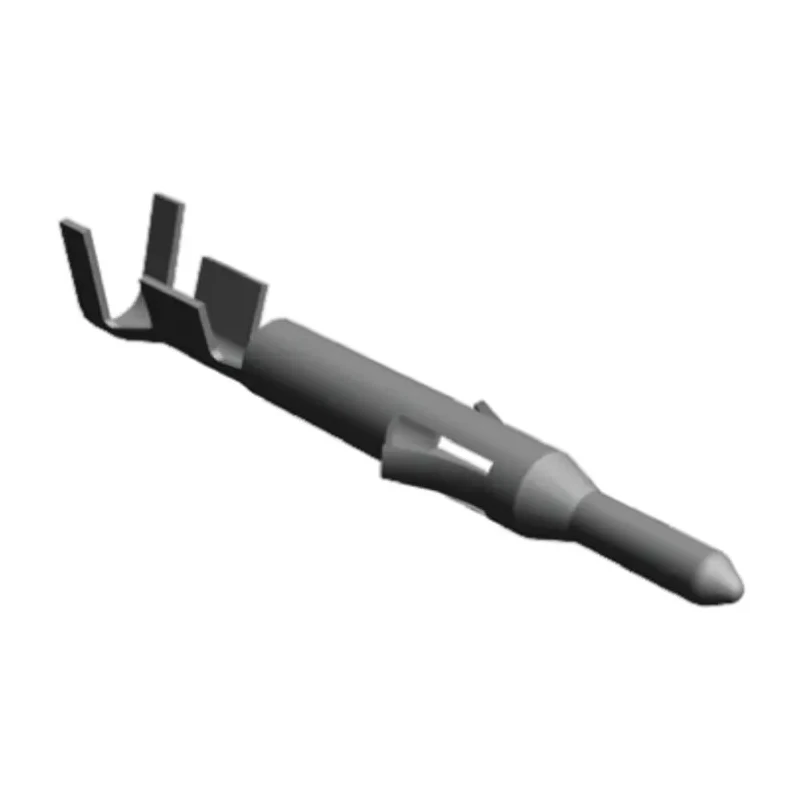

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 3A Current, 17.04mm Length, Tin Plated Brass 770901-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 3A Current, 17.04mm Length, Tin Plated Brass 770901-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Male Crimp Terminal 3A Current, 17.04mm Length, Tin Plated Brass 770901-1
Brand: TE Connectivity
SKU: 220338
Price: 0.12 USD
Availability: InStock



Category Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	3A
Length	17.04mm
Model	770901-1
Gender	Male
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
For Use With	Mini-Universal MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.4mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	10mΩ

Key Features

Supports a minimum wire size of 26 AWG and maximum wire size of 22 AWG.
Constructed with brass contact material and tin plating for enhanced conductivity and corrosion resistance.
Offers a maximum contact resistance of 10 milliohms for efficient electrical connection.
Operates reliably in temperatures ranging from -30°C to 105°C.
Terminal length is precisely 17.04 millimeters for compatibility with Mini-Universal MATE-N-LOK connector housings.
Designed as a male crimp terminal for secure wire termination.
Meets the requirements of Mini-Universal MATE-N-LOK series connector systems.
Suitable for use in electronic component, power, and connector applications.

Product Description

TE Connectivity 770901-1 Mini-Universal MATE-N-LOK Series Male Crimp Terminal is engineered to provide reliable and efficient electrical connections within Mini-Universal MATE-N-LOK connector systems. This male crimp terminal supports electrical currents up to 3A and accommodates wire sizes ranging from 26 AWG (minimum) to 22 AWG (maximum), supporting a wire cross-sectional area between 0.1 mm² and 0.4 mm².

Manufactured from brass with tin plating, the terminal offers excellent electrical conductivity and resistance to corrosion, ensuring longevity and stable performance in diverse operating environments. The terminal's precise length of 17.04 millimeters provides a secure fit within compatible connector housings, enabling consistent and safe wire terminations through crimping.

Operating temperature ranges from -30°C to 105°C make this terminal well suited for electronic components, power connectors, and PCB connector & wire housing uses in industrial, manufacturing, automotive, and electronic assembly applications. Its maximum contact resistance of 10 milliohms guarantees efficient current flow with minimal loss.

TE Connectivity's Mini-Universal MATE-N-LOK crimp terminal offers designers and engineers a reliable connection solution optimized for Mini-Universal connector systems, facilitating strong mechanical bonds and effective electrical performance in complex circuitry and wiring harness assemblies.

Supports wire sizes from 26 AWG min to 22 AWG max ensuring versatile application. Constructed with tin-plated brass for excellent electrical conductivity and corrosion resistance. Enables reliable current carrying capacity of up to 3 amperes.

Maintains stable performance across temperatures from -30°C to 105°C. Terminal length of 17.04 mm ensures compatibility with connector housings. Designed for crimp termination, providing secure mechanical and electrical connections.

Ideal for use in industrial electronics, power connectors, and PCB wiring systems. Low contact resistance of 10 milliohms reduces loss and heat generation. Explore more Mini-Universal MATE-N-LOK components and Connector accessories on EnvMart to meet diverse electrical and electronic component assembly needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This male crimp terminal supports a maximum current of 3A.

It accommodates wire sizes ranging from 26 AWG (minimum) to 22 AWG (maximum), which corresponds to a cross-sectional area between 0.1 mm² and 0.4 mm².

The terminal operates reliably in temperatures ranging from -30°C to 105°C.

The terminal has a precise length of 17.04 millimeters, ensuring compatibility with Mini-Universal MATE-N-LOK connector housings.

It is constructed from brass and features tin plating for enhanced conductivity and corrosion resistance.

The maximum contact resistance is 10 milliohms, which helps ensure efficient electrical connection.

This model uses crimp termination for secure wire connections.

Yes, it is designed for use in electronic components, power connectors, and PCB wiring systems, making it suitable for various industrial applications.

It belongs to the Mini-Universal MATE-N-LOK series, designed for reliable connections within compatible connector systems.

The terminal measures 17.04 mm in length, but specific width and height dimensions are not provided.

The country of origin for this terminal is India.

It is specifically designed for use in Mini-Universal MATE-N-LOK connector systems and is suitable for electronic component, power, and connector applications.
