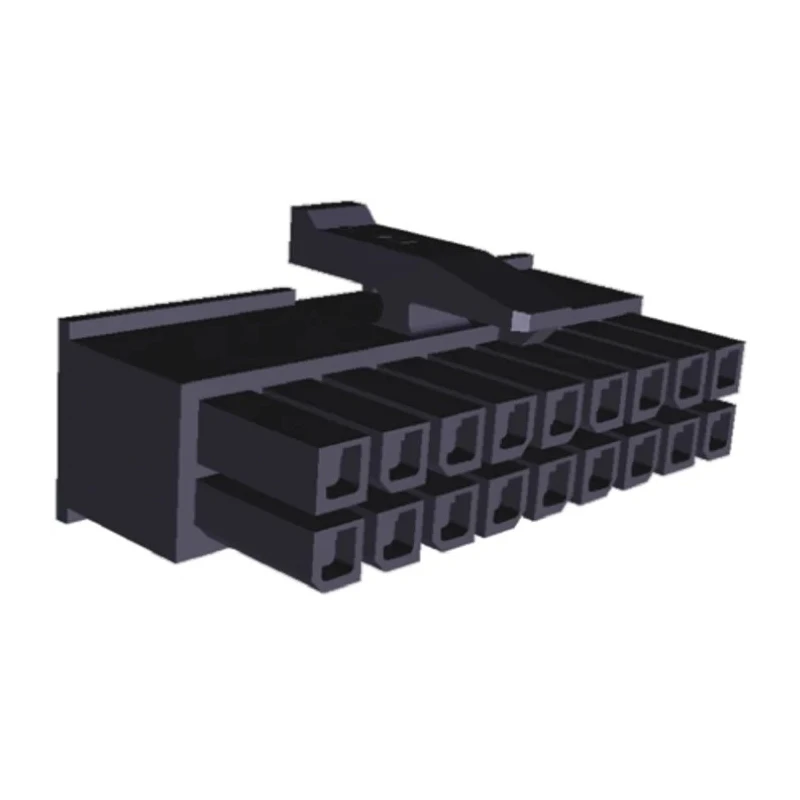

TE Connectivity Micro MATE-N-LOK Female Connector Housing 3 mm Pitch 18 Way 2 Row Straight 1-794617-8

TE Connectivity 1-794617-8 Micro MATE-N-LOK female connector housing offers a robust solution for cable-to-PCB connections. Featuring an 18-way, 2-row straight design with a 3 mm pitch, it ensures reliable electrical connectivity in compact spaces. The nylon housing provides effective insulation and mechanical durability, suitable for harsh industrial environments.

This connector incorporates polarization features to prevent mis-mating and a positive locking latch securing the housing to its mating counterpart, enhancing connection stability. Measuring 28 mm in length and 8.26 mm in width, it fits well into dense electronic assemblies requiring compactness without compromising performance.

The Micro MATE-N-LOK system supports wire-to-wire and wire-to-board configurations, accommodating crimp socket contacts (sold separately). Its maximum current rating of 5A makes it ideal for household appliances, factory automation systems, data storage, and security equipment. Though no specific industry standards or approvals are specified, the design aligns with typical industrial connector reliability.

These connectors have versatility across multiple sectors, from consumer electronics to lighting and automation, especially benefiting LED lighting with available low-profile versions. The cable mount type with straight orientation ensures straightforward installation while maintaining neat cable management.

Manufactured in China, this product is part of TE Connectivity’s Micro MATE-N-LOK series, recognized for quality and durability in demanding applications. The connector has 18 contact points arranged in 2 rows for dense wiring solutions.

Features a 3 mm pitch ensuring precise connectivity and compatibility. Constructed with durable nylon housing materials for long-term use and insulation. Equipped with a positive locking latch to secure the mating connector and prevent accidental disconnection.

Polarization prevents mis-mating ensuring correct alignment during installation. The straight orientation facilitates easy cable routing in various installation setups. Suitable for use with PCB connectors, particularly in wire-to-board applications.

Compact dimensions with length 28 mm and width 8.26 mm optimize space on PCB assemblies. Complies with industrial reliability requirements though standards/approvals are not specified. Designed to handle maximum current rating of 5A for typical industrial and consumer electronic applications.
