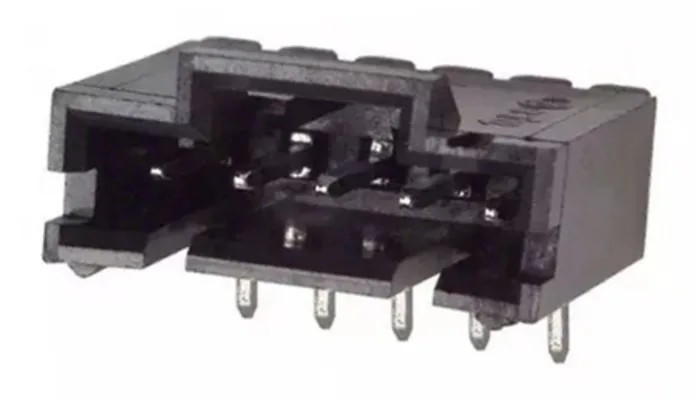

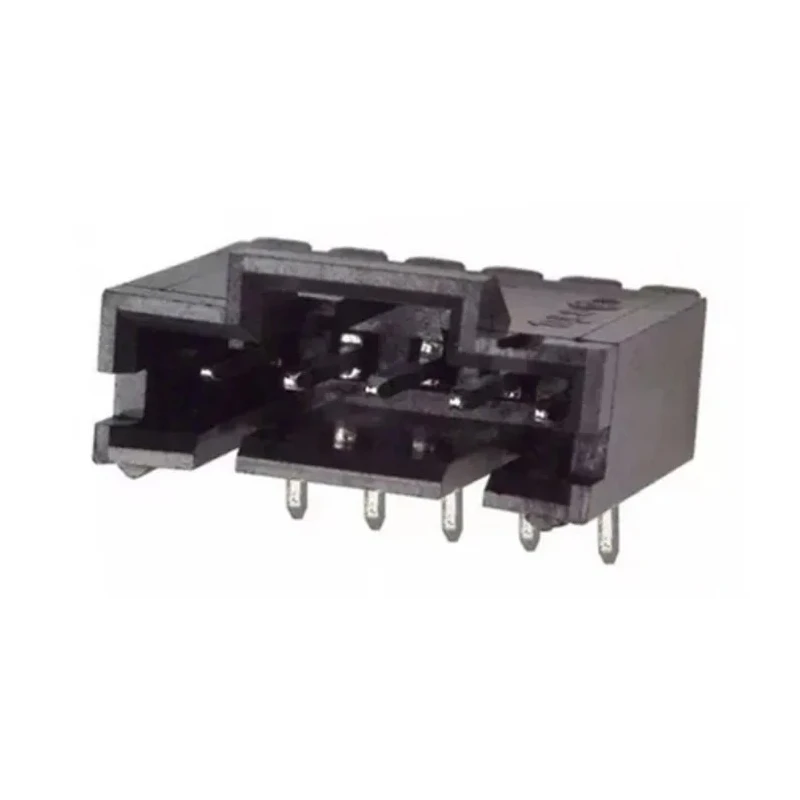

TE Connectivity AMPMODU MTE Series Right Angle Through Hole PCB Header 5 Contact 2.54 mm Pitch 1 Row Shrouded 5-103634-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 40V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMPMODU MTE |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- This PCB header features a shrouded design for secure mating connections.
- Constructed with thermoplastic housing and brass male contacts plated with tin.
- It supports a current rating of 3A and a voltage of 40V.
- The product operates reliably between -55°C and 105°C.
- The integral latching system ensures a secure connection with the AMPMODU MTE IDC receptacle connectors.
- End-to-end stackability allows flexible assembly configurations.
- Designed for mass termination applications in electronics, telecommunications, and automotive controls.
- Mount type is through hole with solder termination.
Product Description
TE Connectivity 5-103634-4 AMPMODU MTE Series Right Angle Through Hole PCB Header with 5 contacts, 2.54 mm pitch and 1 row, provides a robust interconnection solution for wire-to-board mass termination applications.
Built with a thermoplastic housing and brass contacts plated with tin, this shrouded male connector supports a current rating of 3A and voltage up to 40V. It is designed to operate within a temperature range of -55°C to 105°C, ensuring reliability in varying environmental conditions.
The integral latching mechanism secures mating with IDC receptacle connectors, enhancing connection stability. End-to-end stackability enables users to customize configurations as per electronic assembly requirements.
Mounting is through hole with solder termination, suited for electronic equipment including computers, telecommunications devices, copiers, commercial printers, appliances, instrumentation, test equipment, medical devices, and automotive controls.
This PCB header features a shrouded design for secure mating connections. Constructed with thermoplastic housing and brass male contacts plated with tin. It supports a current rating of 3A and a voltage of 40V. The product operates reliably between -55°C and 105°C.
The integral latching system ensures a secure connection with the AMPMODU MTE IDC receptacle connectors. End-to-end stackability allows flexible assembly configurations. Designed for mass termination applications in electronics, telecommunications, and automotive controls.
Mount type is through hole with solder termination. The connector system is wire-to-board, suitable for diverse electronic equipment assembly. The row pitch and contact pitch are standardized at 2.54 mm.
TE Connectivity’s AMPMODU MTE system offers efficient and cost-effective wiring solutions, leveraging IDC technology to reduce assembly time and eliminate wire stripping. This product is ideal for industrial, laboratory, telecommunications, manufacturing, medical, and automotive electronic applications.
Discover more PCB connector options and technical solutions in the Electronics Components category at EnvMart.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 3A.
It supports a voltage of up to 40V.
The product operates reliably between -55°C and 105°C.
This model features 5 contacts.
It uses a through hole mounting type with solder termination.
It has a thermoplastic housing and brass male contacts plated with tin.
The contact pitch is standardized at 2.54 mm.
Yes, it is designed for mass termination applications in electronics, telecommunications, and automotive controls.
This PCB header utilizes a wire-to-board connector system.
The orientation of this model is right angle.
Yes, it includes an integral latching system for secure connections with IDC receptacle connectors.
The country of origin for this product is India.
