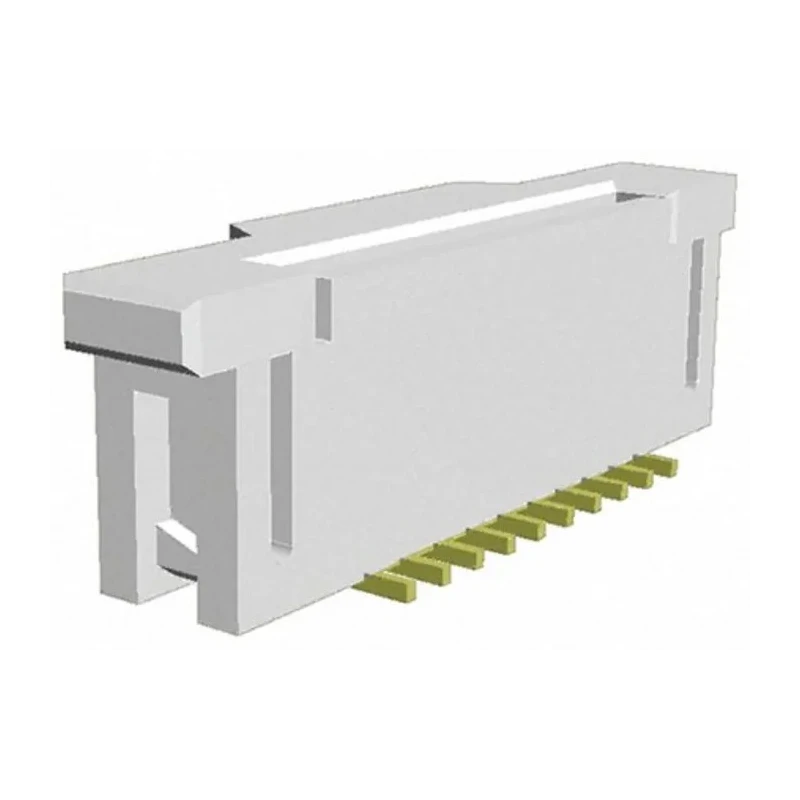

TE Connectivity FPC 1 mm Pitch 10 Way Straight Female FPC Connector Solder 1-1734248-0

TE Connectivity 1-1734248-0 FPC 1 mm Pitch 10 Way Straight Female FPC Connector provides a reliable solder termination interface designed for efficient and secure signal routing within electronic devices. Engineered with a compact form factor, this connector supports demanding applications requiring robust electrical connections on compact PCBs.

The connector uses phosphor bronze contacts plated with gold over nickel, ensuring excellent conductivity and resistance to corrosion. It supports currents up to 1 ampere and withstands voltages up to 125 V DC, making it suitable for a variety of low-power electronic circuits.

Featuring a Zero Insertion Force (ZIF) slide lock actuator, the connector allows for effortless insertion and removal of flexible printed circuit cables (FPC), reducing contact wear and increasing mating cycle durability. The top contact position and surface mounting style streamline PCB integration while solder tabs enhance mechanical retention on the board.

Constructed with Polyamide 9T housing material, this component offers excellent insulation and mechanical resilience, suitable for use in environments ranging from -20°C to 85°C. The dual-row, 10-contact design with 1 mm pitch ensures precise and compact cable connections.

These connectors find wide application in handheld scanners, set-top boxes, PCs, peripherals, business and industrial equipment, and medical devices. They are particularly effective in high vibration environments where stable cable retention is critical.

Features a compact design suitable for space-constrained PCB layouts. Employs a slide lock actuator ensuring secure and easy cable insertion. Constructed with phosphor bronze contacts plated with gold over nickel for reliable conductivity.

Supports currents up to 1 ampere with 125 V DC voltage rating. Operates in temperature ranges from -20°C to 85°C for broad application environments. Surface mount type with top contact position ensures ease of PCB assembly.

Zero Insertion Force (ZIF) locking mechanism reduces wear and enhances connection stability. Housing made of durable Polyamide 9T material for insulation and mechanical strength. Ideal for handheld scanners, set-top boxes, industrial equipment, and medical devices.

This product is categorized under FPC Connectors at EnvMart, aimed at professional and industrial electronics manufacturing, assembly, and repair sectors.
