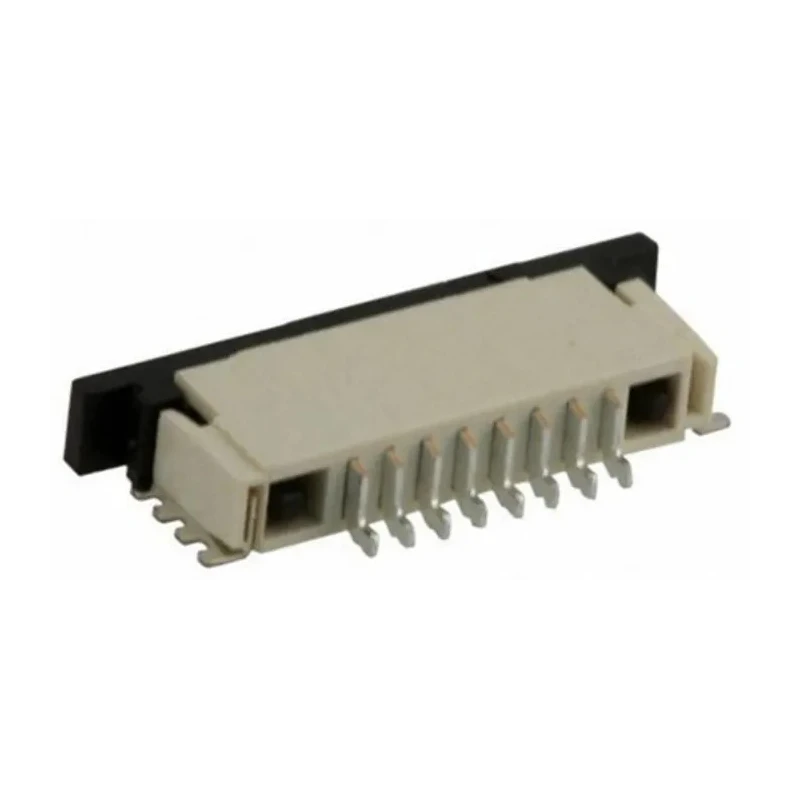

TE Connectivity FPC 1 mm Pitch 8 Way Right Angle Female FPC Connector ZIF Bottom Contact 84952-8

TE Connectivity model 84952-8 is a 1 mm pitch, 8 way, right angle female FPC Connector with ZIF bottom contact designed for compact and reliable electronic interconnections.

This connector uses phosphor bronze contact material with tin plating to ensure excellent electrical performance and longevity. It features a surface mount type with a right-angle orientation to facilitate efficient PCB layout and assembly.

The ZIF bottom contact termination reduces insertion force, enhances durability by reducing contact wear, and increases mating cycle count. It incorporates a slide lock actuator that secures the flexible printed circuit, preventing accidental disconnection.

Rated for 200V AC and 1A current, this connector operates reliably within a temperature range of -40°C to 85°C, making it suitable for demanding industrial, medical, and consumer electronic applications.

The housing is made from liquid crystal polymer, which provides mechanical strength and heat resistance. The connector includes solder tabs for improved retention on the PCB.

Applications include hand held scanners, set-top boxes, PCs, peripherals, business equipment, industrial machinery, and medical devices, where space-saving connections and enhanced durability are required.

This connector offers a compact design with 8 contacts at 1 mm pitch for high-density PCB assembly. ZIF bottom contact termination minimizes insertion force and extends connector lifespan. Right angle orientation supports versatile mounting options and optimized PCB space usage.

Locking mechanism and slide lock actuator ensure secure and easy FPC connection. Housing material and plating enhance durability and performance under varying environmental conditions. Discover more TE Connectivity connectors and related components at EnvMart for your electronic and industrial design needs.
