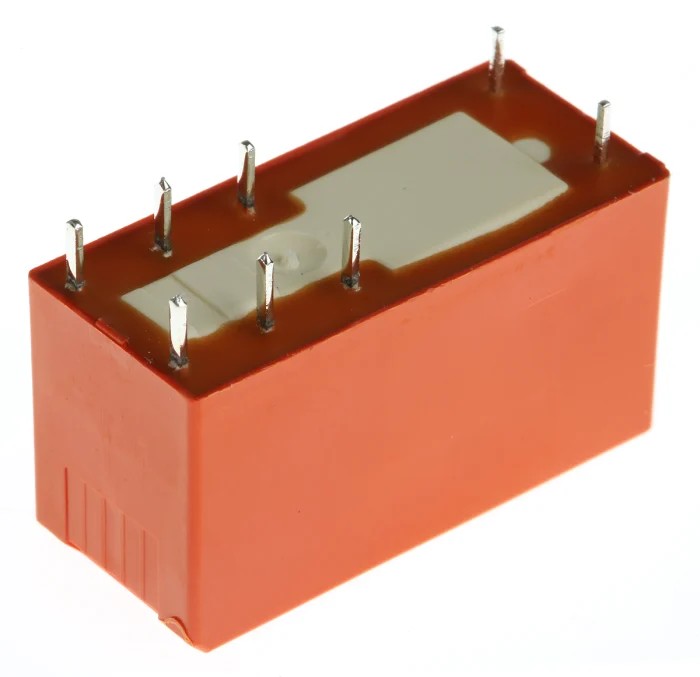

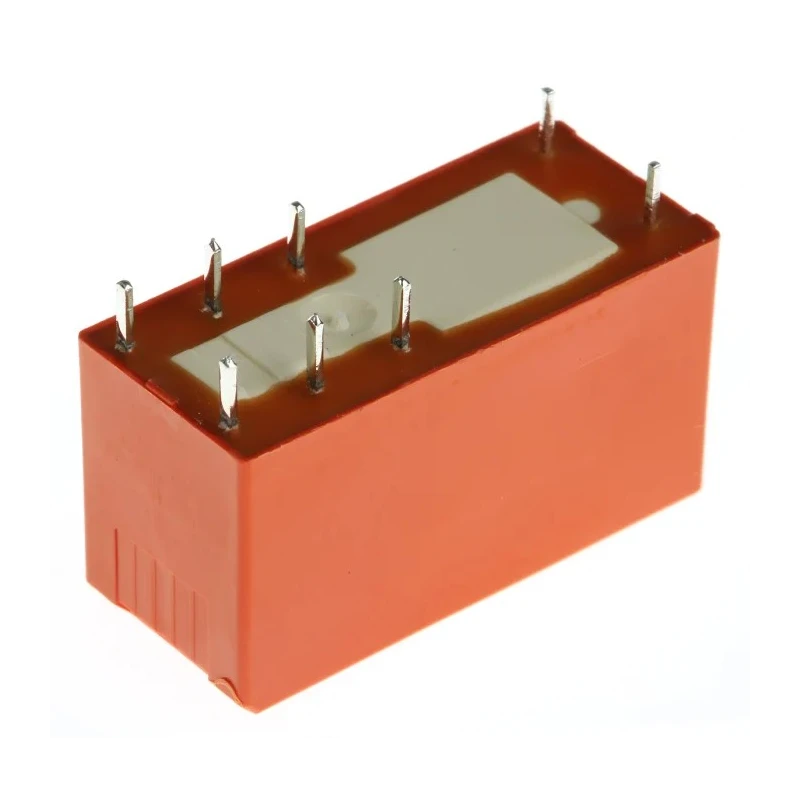

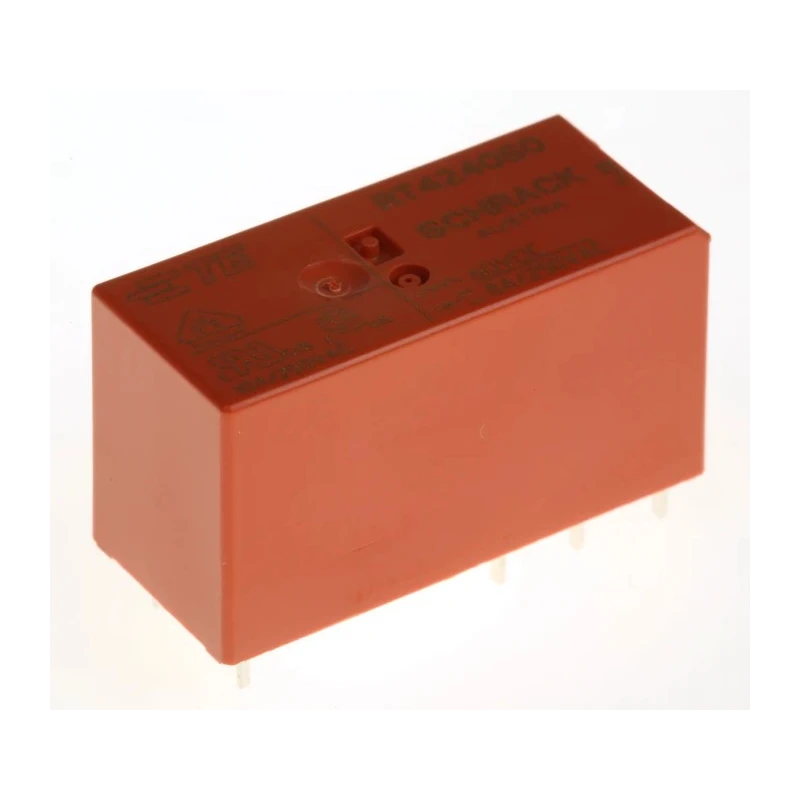

TE Connectivity PCB Power Relay, 60V dc Coil Voltage, 8A Switching Current, DPDT Contact Configuration, RT2 7-1393243-3

TE Connectivity 7-1393243-3 PCB Power Relay is engineered for effective electrical switching with a 60V dc coil voltage and 8A switching current. This double-pole double-throw (DPDT) relay ensures reliable contact operation within industrial and commercial electronic circuits.

Part of the respected RT2 series, this relay features through-hole PCB mount construction with flux proof 5 mm pinning, optimized for manufacturing environments where cleanliness and reliability are paramount. The silver alloy contact material guarantees excellent conductivity and resistance to oxidation, enhancing relay lifespan.

The relay supports a maximum switching AC voltage of 400V and a switching power rating of 2 kVA, capable of handling diverse load conditions. Its coil resistance of 8.6 kΩ and coil power of 420 mW afford energy-efficient performance while maintaining robust actuation.

Operating reliably across a broad temperature spectrum from -40°C to 85°C, the device is suited for harsh industrial settings and demanding scenarios such as automation systems, interface modules, security lighting controls, and heating equipment regulation.

Compact sizes of 29 mm length, 12.7 mm width, and 15.7 mm height allow easy integration into crowded PCB layouts. The solder terminal type ensures durable and stable electrical connections when assembling onto printed circuit boards.

Compliant with stringent international approvals including UL, CQC, IEC, REACH, RoHS, and VDE, this TE Connectivity power relay meets essential safety and environmental standards, making it reliable for use in regulated environments.

Utilize this power relay to enhance the control and switching capabilities of your electrical and automation systems with trusted performance and proven durability. Designed for through-hole PCB mounting in various electronic assemblies.

Features a coil resistance of 8.6 kΩ and coil power consumption of 420 mW. Equipped with silver alloy contacts delivering stable conductivity and durability. Operates efficiently with switching AC voltage up to 400V ac and switching power of 2 kVA.

Wide operating temperature range from -40°C to 85°C for versatility in harsh environments. Compact dimensions: length 29mm, width 12.7mm, height 15.7mm for space-saving installations. Compliance with international standards including UL, CQC, IEC, REACH, RoHS, and VDE certifications.

Suitable for industrial automation, interface, heating systems, lighting control, and security applications. Terminal type is solder for secure and reliable electrical connections. Part of the RT2 series renowned for flux proof pin designs ensuring cleaner PCB assembly.
