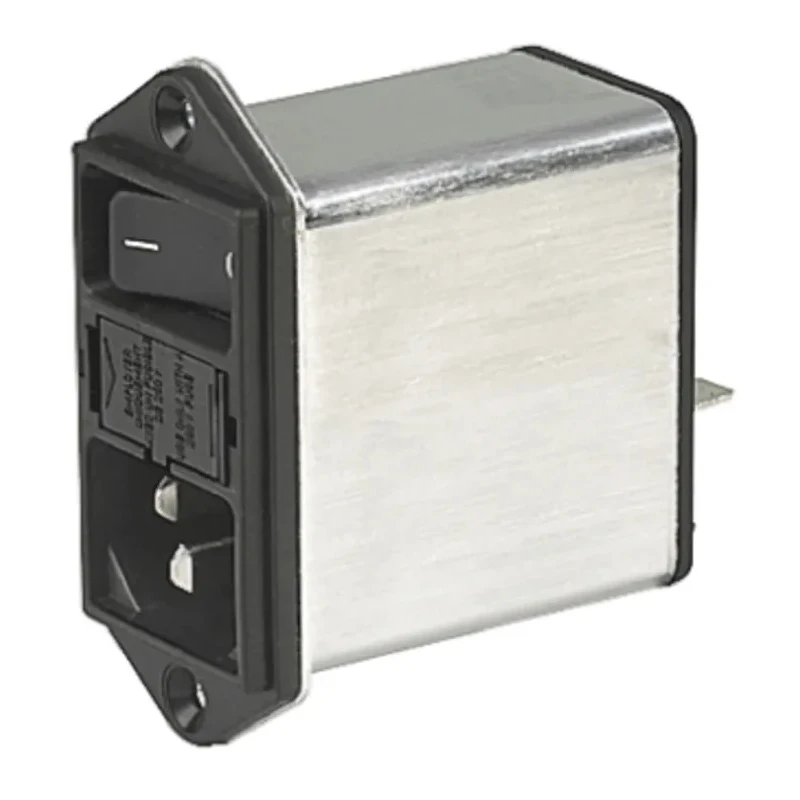

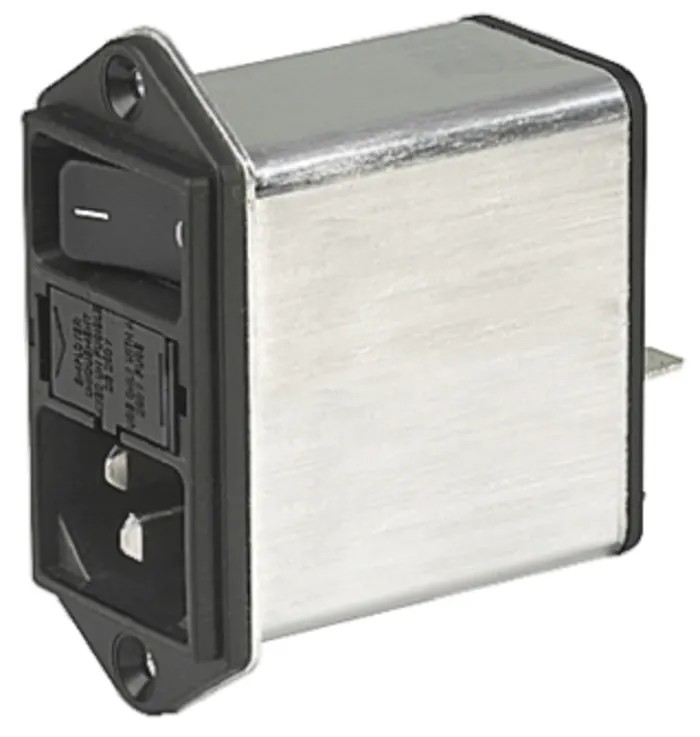

Schurter 250V AC 2A Panel Mount IEC Connector Male 2 Pole 2 Fuse Quick Connect DD12.2321.111

Free Delivery in India | Lowest Global Shipping Charges

Schurter 250V AC 2A Panel Mount IEC Connector Male 2 Pole 2 Fuse Quick Connect DD12.2321.111

Name: Schurter 250V AC 2A Panel Mount IEC Connector Male 2 Pole 2 Fuse Quick Connect DD12.2321.111
Brand: Schurter
SKU: 217653
Price: 48.92 USD
Availability: InStock



Category IEC Connector Brand Schurter Condition New

Specifications

Country of Origin	India
Voltage	250V ac
Brand	Schurter
Current	2A

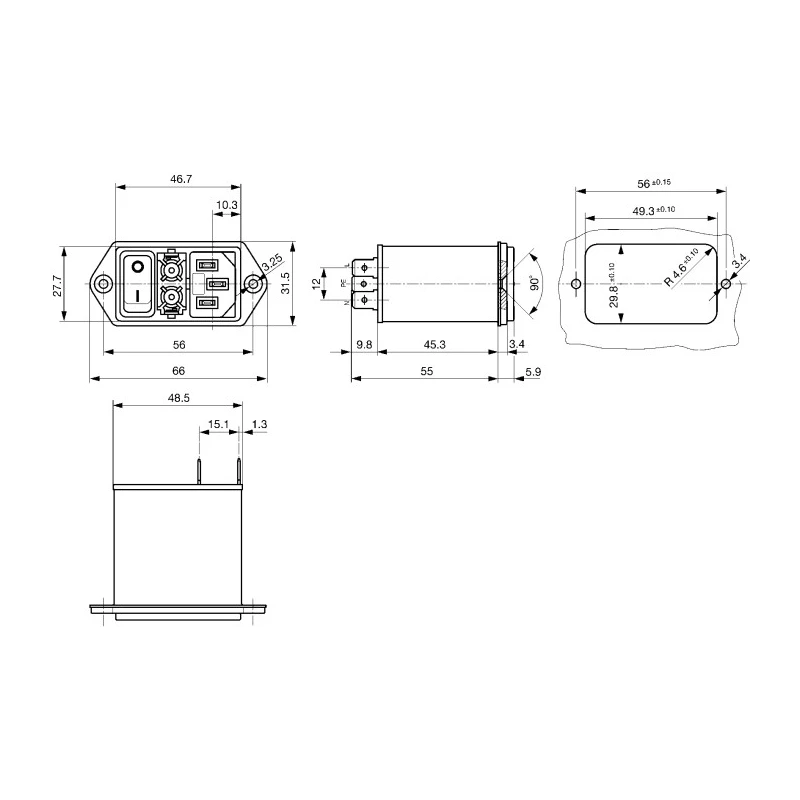

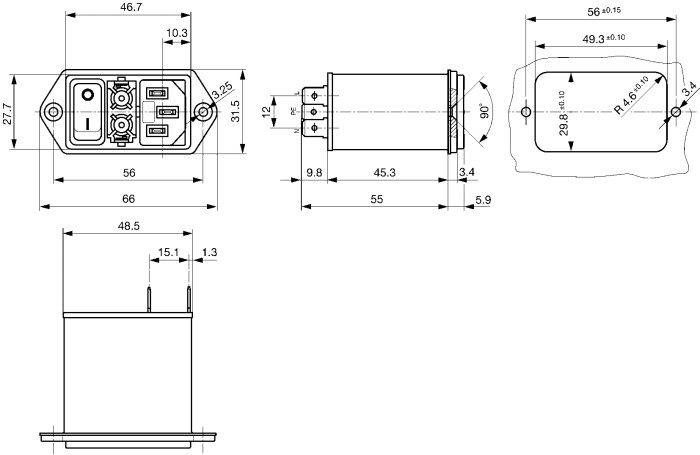

Height	31.5mm
Model	DD12.2321.111

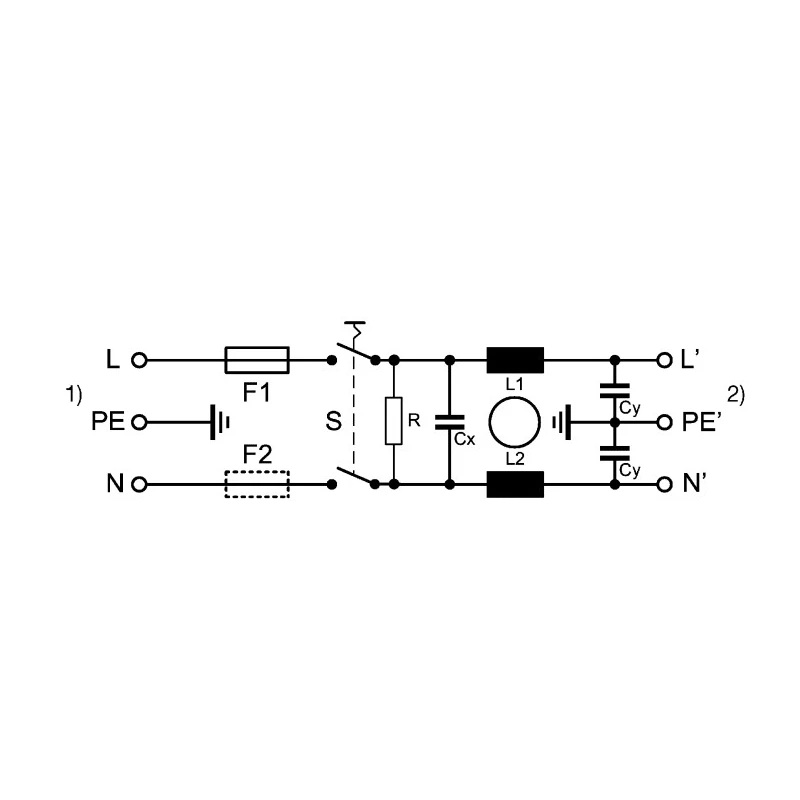

Filter Type	Line
Depth	60.9mm
Width	66mm
Mount Type	Panel Mount
Operating Frequency	60Hz
Switch Type	2 Pole
Termination Type	Quick Connect
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Panel Mount	Screw on from front side
Contact Gender	Male
Connector Gender	Male
Fuse Size	5 x 20 mm
Number of Fuses	2
IEC Connector Type	C14

Key Features

This connector features 2 poles and supports a current rating of 2 amperes.
It is designed to accommodate 2 fuses of 5 x 20 mm size for circuit protection.
The mounting type is panel mount with screw-on installation from the front side.
Quick connect terminals measure 6.3 x 0.8 mm for easy and secure connection.
The connector is suitable for operating frequencies of 60Hz and voltage up to 250V AC.
Its ultra-compact aluminium case provides excellent shielding against interference.
Operating temperature ranges from -25°C to 85°C ensuring reliable performance in varied environments.
The product is compliant with medical and standard IEC/EN 60601-1 and IEC/EN 60950 standards.

Product Description

Schurter DD12.2321.111 IEC Connector is a professional-grade 250V AC 2A panel mount male connector providing a reliable electrical connection in industrial and medical equipment. Designed with a compact aluminium case, it offers effective shielding and durability.

This connector supports 2 poles and is equipped for 2 fuses sized 5 x 20 mm to ensure circuit protection. The quick connect termination type with 6.3 x 0.8 mm terminals facilitates fast and secure installation.

The mounting method is panel mount, secured by screws from the front side, allowing easy assembly and maintenance. It operates efficiently at 60Hz frequency and can withstand temperatures from -25°C up to 85°C, suitable for harsh environments.

Compliant with IEC/EN 60601-1 medical standard requirements and IEC/EN 60950 for equipment safety, this connector is qualified for professional and medical-grade applications needing dependable power connections and high transient load endurance.

This connector has 2 fuse slots for 5 x 20 mm fuses providing enhanced circuit safety. Its quick connect terminals enable swift and reliable electrical connections. The compact aluminium housing offers excellent electromagnetic shielding for sensitive environments.

Robust design allows panel mounting with screw fixation from the front minimizing installation time. Operates at standard 250V AC voltage and 2A current rating for versatile power needs. Temperature resilience makes it adaptable for industrial, medical, and laboratory applications.

Suitable for IEC C14 type connector configurations commonly used in electrical devices.

The fuse drawer is not included and must be purchased separately to fit Ø5x20mm fuse size. Schurter's product range supports high-quality panel mount IEC inlet plugs featuring integral mains filters tailored for standard and medical equipment.
