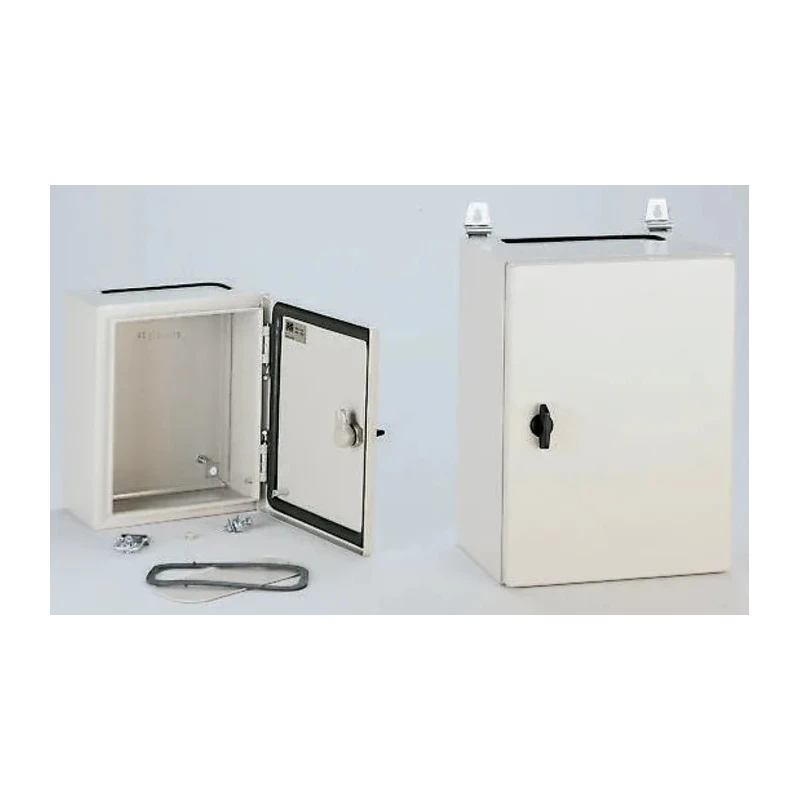

Schneider Electric Spacial CRN Series Steel Wall Box Enclosure IP66 Grey 600mm x 500mm x 150mm NSYCRN65150

Schneider Electric NSYCRN65150 Spacial CRN Series steel wall box enclosure offers a compact, robust solution for housing electrical and automation components with IP66 protection rating. Measuring 600 mm in height, 500 mm in width, and 150 mm in depth, this enclosure is designed for both indoor and outdoor industrial applications providing reliable protection against dust and water ingress.

Constructed from high-quality steel with an epoxy-polyester powder coating in grey RAL 7035, the enclosure features a recyclable epoxy-polyester finish that enhances durability and corrosion resistance. The front door is reversible, opening up to 120 degrees, equipped with a secure 3 mm double-bar lock mechanism for enhanced safety. The enclosure includes a standard gland plate, and both hinges and cable gland plate are removable to facilitate installation and cable routing.

The box complies with IP66 and IK10 standards, offering excellent protection against impacts and water jets, making it ideal for demanding industrial environments. It incorporates a polyurethane seal to ensure long-term watertight performance. The compact design features sides made from a single folded section with a welded back to form a sealed and robust body.

This enclosure is supplied with one lock, one door, one body, and one cable gland plate. Mounting plates are not included, as noted. The box is engineered to support a maximum load of 50 kg/m² on the door, with removable doors allowing for flexible installation and maintenance. The welds include earth welded studs to facilitate grounding and electrical safety.

The Spacial CRN series wall boxes by Schneider Electric are suitable for industrial automation, industrial control, and other equipment housing applications, offering reliable protection for sensitive electrical components in commercial and industrial settings. It supports various accessories and inserts for customization to specific operational needs.

Constructed of steel with epoxy-polyester powder finish enhances durability and protection. IP66 and IK10 certification ensures water and impact resistance in harsh environments. Reversible 120° door with double bar lock provides secure access and flexible installation.

Includes polyurethane seal for long-term watertight performance. Mounting plate not included, enabling customization with optional accessories. Complies with RoHS, REACH, IEC 62208, UL, and cULus standards ensuring compliance and safety.

Suitable for industrial automation, control, electrical enclosure, and outdoor applications. Maximum load capacity of 50 kg/m² supports heavy equipment and hardware attachments. Supplied with lock, door, body, and cable gland plate for complete enclosure assembly.

Smart hinge design allows easier removal and door reversal for maintenance. Explore the comprehensive range of electrical enclosures and Wall Boxes available at EnvMart for your industrial protection and housing requirements.
