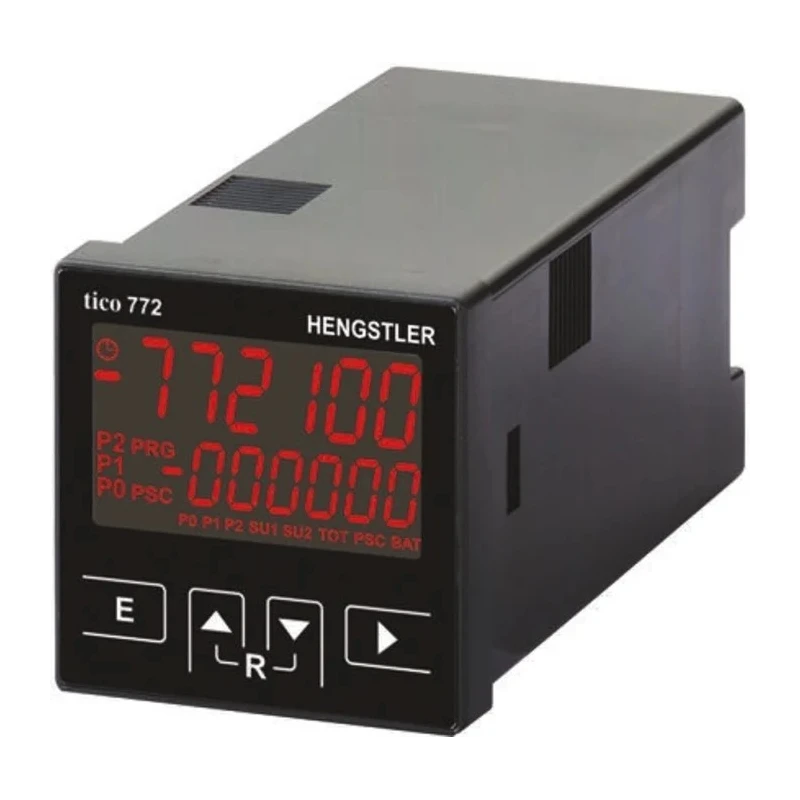

Hengstler TICO 772 6 Digit Digital Panel Mount Counter, Automatic & Manual Reset, 9.3mm Digit Height 0-999,999 0 772 401

Hengstler 0 772 401 TICO 772 series 6 Digit Digital Counter is a high-precision multifunctional panel mount counter designed for industrial and electronic applications. It features a 6-digit LCD display with digit height of 9.3mm, providing clear and large numeric visibility. This counter supports a wide preset range from -999,999 to +999,999 and accepts voltage inputs between 12VDC and 30VDC, ensuring compatibility with various industrial power supplies.

The device offers both automatic and manual reset methods, catering to diverse process requirements. It integrates several functional modes including tachometer, timer, shift counter, and batch counter, making it suitable for complex counting and timing tasks in manufacturing and automation. The maximum count frequency is 60KHz under special calibration, typically operating at 30KHz.

Distinctive features include four backlight colour options with adjustable brightness intensity, enhancing legibility in dim or bright environments. The front panel measures 48mm by 48mm, optimized for easy installation via plug-in terminals. Relay outputs are available for system control and the alarm signal flashes indicating active preset counters.

With an operation temperature range from 0°C to 50°C and an IP65 front protection rating, the counter is well suited for demanding industrial conditions where dust and water resistance are valued. This product is ideal for applications such as time controlling, position indication, batch counting, cutting to length, and rotation speed measurement.

Manufactured in Germany, the Hengstler TICO 772 is built to meet high-quality standards and is UL and CSA certified. Its robust design supports reliable functionality for continuous industrial use.

Features a 6-digit LCD with clear 9.3mm high digits for easy readability. Provides multifunctional use including tachometer, timer, shift counter, and batch counter. Supports both automatic and manual reset methods for versatile operation.

Operates with voltage input range of 12VDC to 30VDC and relay output for control applications. Maximum count frequency of up to 60KHz achievable via special calibration. Four selectable backlight colours with adjustable intensity for visibility in various environments.

Compact front dimensions of 48mm x 48mm suitable for panel mounting. Rated for operating temperatures between 0°C and 50°C ensuring stability in typical industrial conditions. IP65 rated front for protection against dust and water ingress.

Applications include time control, position indication, batch counting, cutting to length, and rotation speed control. Manufactured in Germany following quality standards.

This Hengstler Digital Counter is suitable for industrial automation, manufacturing process control, laboratory instrumentation, HVAC control systems, and other electronics and electrical component applications. It offers reliable and precise counting functions backed by German engineering quality.
