Hengstler SIGNO 721 Digital Counter 5 Digit LCD Display 60 kHz 30V dc 0 721 201

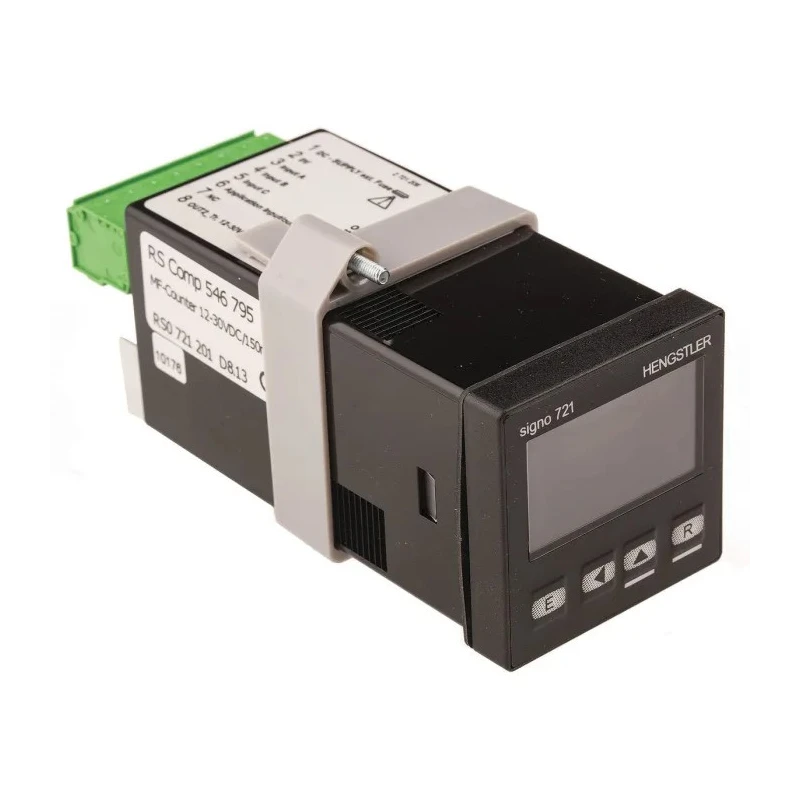

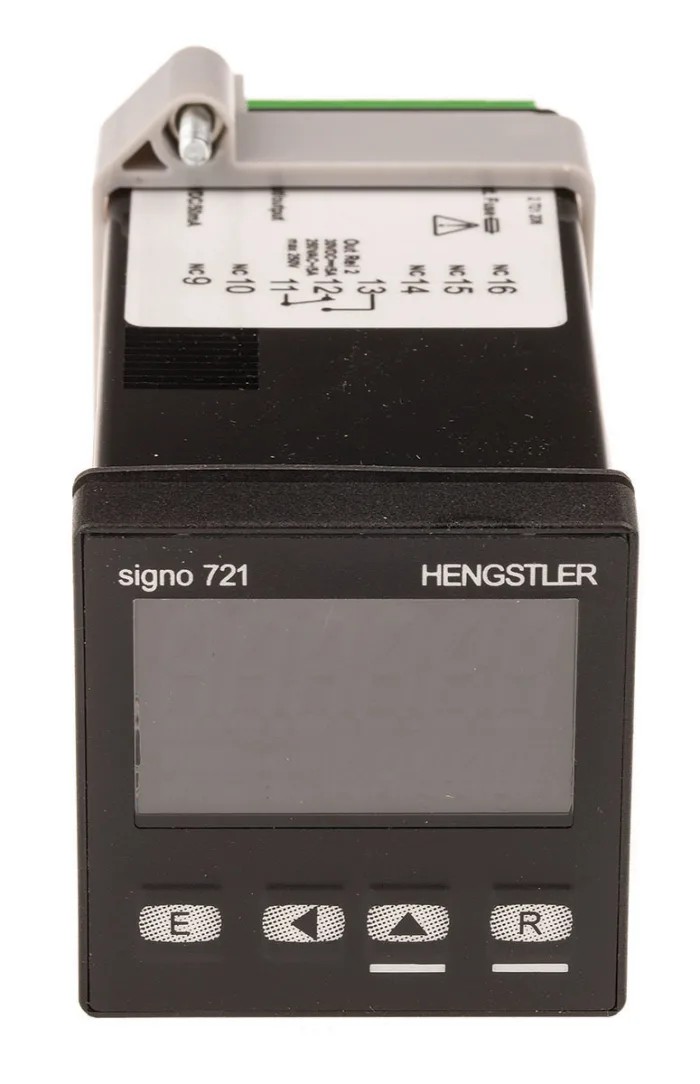

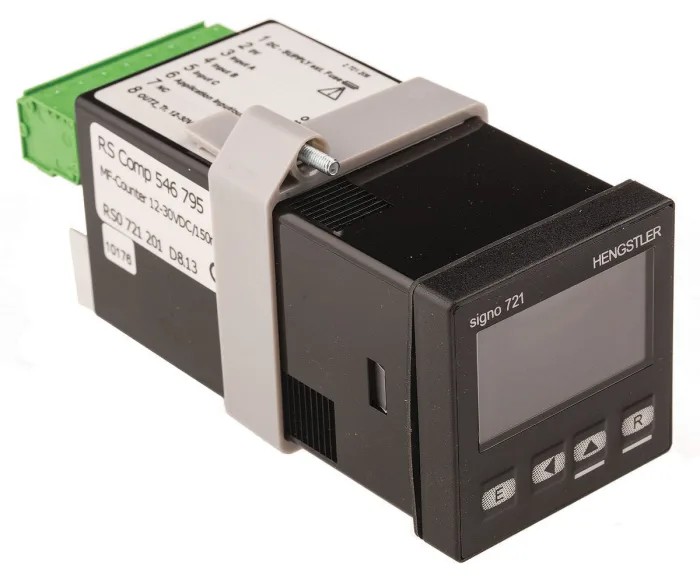

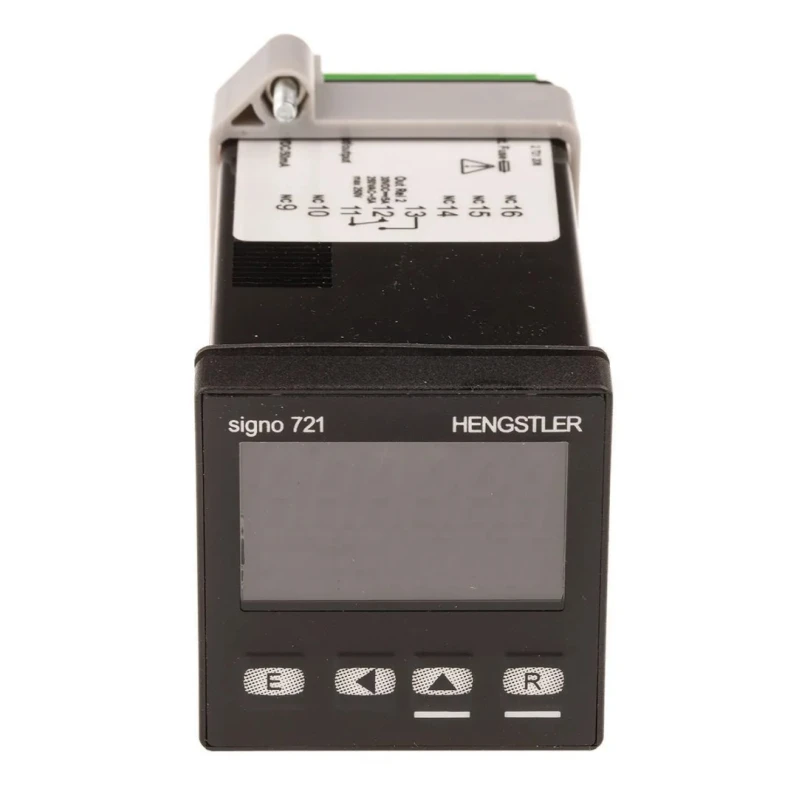

Hengstler 0 721 201 SIGNO 721 digital counter is engineered for accurate and reliable counting tasks in industrial and electronic applications. Featuring a 5-digit LCD display with 12 mm digit height and backlighting, it ensures clear readability even in low-light environments. The counter supports impulse counting modes with both automatic and manual reset methods, providing flexibility for various uses.

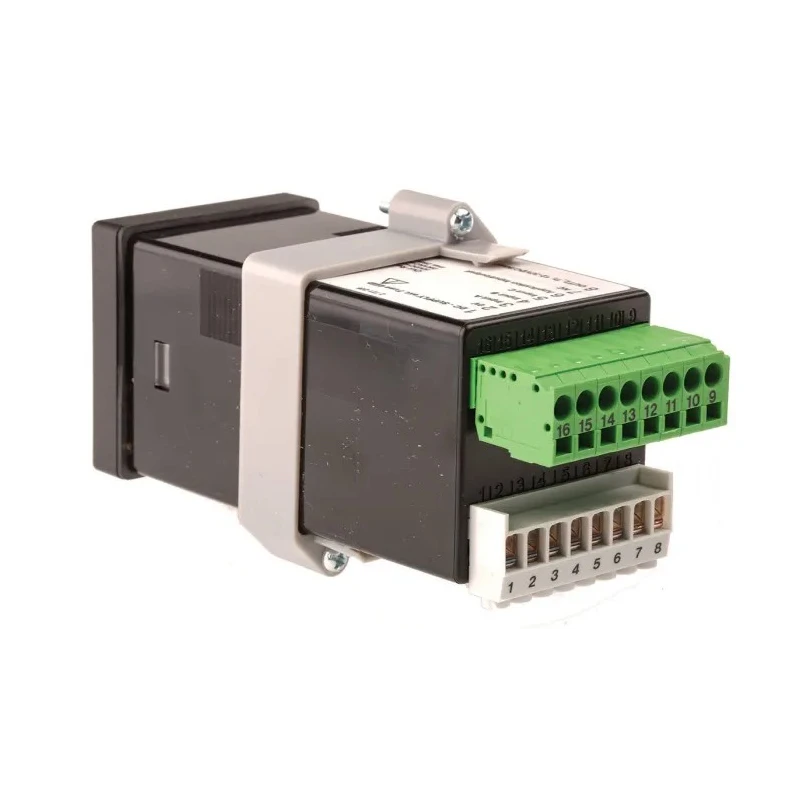

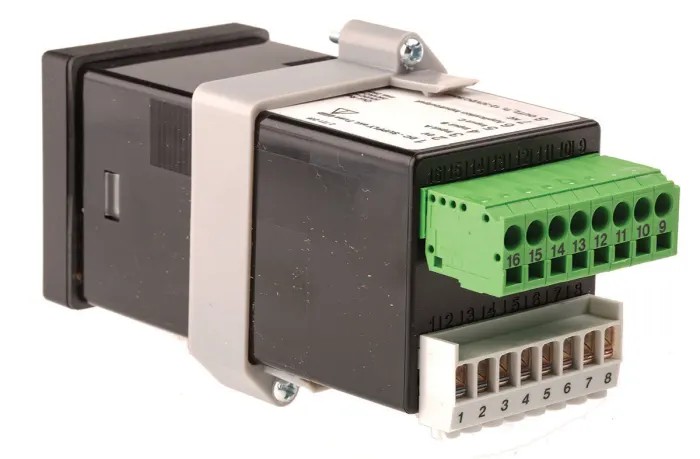

The robust design includes DIN rail mounting and screw & plug connection types, making installation hassle-free in control panels. Operating voltage is rated up to 30V DC, suitable for a wide range of industrial circuits. The counter can handle counting frequencies up to 60 kHz when calibrated with special parameters, otherwise rated for 30 kHz.

Temperature resilience ranges from 0°C to 50°C, making it reliable for typical industrial environments. Its compact size, including a 45 mm by 45 mm panel cutout and 110 mm depth, along with a lightweight build of 200 grams, makes it ideal for panel mount installations.

The device offers advanced features such as programmable reset to zero or preset values, phase discriminator modes, direction counting, and differential counting, enabling integration into complex counting systems. It also supports NPN/PNP signal inputs or contact closures and includes prescaler and multiplier scaling outputs for engineering unit display.

With IP65 rating and long-term data retention exceeding 10 years, this counter is suitable for demanding industrial, manufacturing, and automation uses. The product is manufactured in Germany assuring high quality and durability.

Features impulse count mode with automatic and manual reset functionality. Equipped with a backlit 12 mm high LCD for clear visibility. DIN rail mountable with screw and plug connection types. Operates reliably between 0°C and 50°C ambient temperatures.

Compact dimensions of 45 x 45 mm cutout with 110 mm depth. Lightweight at 200 grams, suitable for industrial panel mounting. Programmable reset and prescaler options for advanced counting applications. IP65 rated with data retention exceeding 10 years for dependable performance.

Designed and manufactured in Germany, meeting stringent quality standards. Explore more Digital Counters and industrial electronic components at EnvMart for your automation and manufacturing needs.
