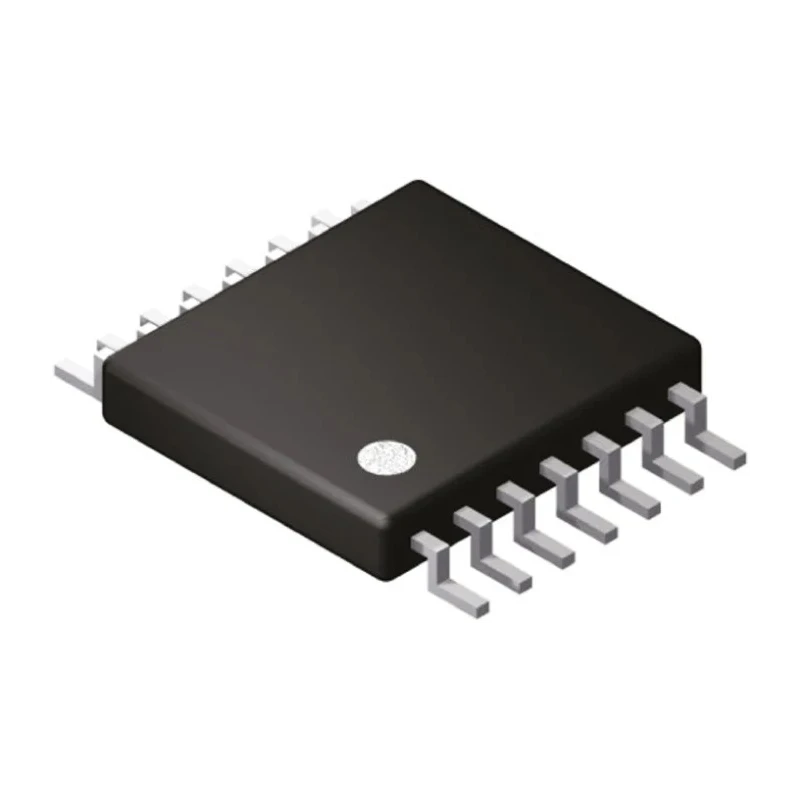

Microchip 4-Channel 16-Bit Delta Sigma ADC 0.02ksps Surface Mount 14-Pin TSSOP MCP3428-E/ST
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 16 bit |
| Brand | Microchip |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | MCP3428-E/ST |
| Mount Type | Surface |
| Sampling rate | 0.02ksps |
| Series | MCP3428 |
| Input Type | Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Interface Type | Serial-I2C |
| Architecture | Delta Sigma |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
| Number of ADCs | 4 |
| Programable Data rate options are | 15 SPS, 60 SPS or 240 SPS |
Key Features
- The ADC features a serial I2C interface for efficient data communication.
- Surface mount package type (14-pin TSSOP) supports compact PCB designs.
- Wide operating temperature range from -40°C to 125°C ensures reliability in harsh environments.
- Programmable data rates selectable among 15 SPS, 60 SPS, or 240 SPS for versatile applications.
- Minimum supply voltage is 2.7V with a maximum of 5.5V providing flexible power options.
- The device conforms to the automotive AEC-Q100 standard for enhanced durability.
- Typical dimensions include a height of 1.2mm and length of 5.1mm for space-sensitive installations.
- Designed for voltage input signals, suitable for industrial and automotive sensing tasks.
Product Description
Microchip MCP3428-E/ST is a new 4-channel analogue-to-digital converter (ADC) featuring a 16-bit Delta Sigma architecture designed for high precision measurement and industrial-grade performance. Operating at 0.02ksps sampling rate, this device is optimized for accurate voltage input data conversion. It utilizes a serial I2C interface ensuring straightforward communication with microcontrollers and embedded systems.
This surface mount device comes in a compact 14-pin TSSOP package, with dimensions including 1.2mm height and 5.1mm length, making it ideal for compact PCB layouts. The ADC operates reliably across a wide temperature range from -40°C to 125°C, meeting the demanding requirements of automotive and industrial environments. It is compliant with the automotive testing standard AEC-Q100, ensuring robustness and quality.
Programmable data rates allow selection between 15 SPS, 60 SPS, or 240 SPS to balance power consumption and conversion speed depending on application needs. The device accepts a supply voltage range of 2.7V to 5.5V providing power flexibility across different systems.
The MCP3428-E/ST is suitable for industrial, automotive, measurement, sensor, and control applications where high accuracy and dependable operation are paramount. Its voltage input capability and quad ADC channels offer versatility for multi-sensor systems.
The serial I2C interface facilitates easy integration into digital communication networks. Compact TSSOP package supports efficient PCB footprint optimisation. Certified to automotive AEC-Q100 standards for high reliability.
Wide operating temperature range supports extreme environmental conditions. Selectable data rates allow optimization of noise and conversion time. Four ADC channels provide multiple signal inputs in a single IC. Suitable for industrial automation, automotive sensing, and precision measurement.
This product is an essential component for electronics design engineers seeking precise and reliable analog to digital conversion in embedded systems.
Explore more products in our Analogue to Digital Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP3428-E/ST features a resolution of 16 bits, allowing for high precision measurement in various applications.
This model can operate at a maximum temperature of 125°C, making it suitable for harsh environments.
The minimum supply voltage required for this ADC is 2.7V, providing flexibility in power supply options.
This ADC has four channels, allowing for multiple signal inputs in a single integrated circuit.
The MCP3428-E/ST offers programmable data rates of 15 SPS, 60 SPS, or 240 SPS to suit various application needs.
It utilizes a serial I2C interface, ensuring straightforward communication with microcontrollers and embedded systems.
This ADC comes in a surface mount package type, specifically a 14-pin TSSOP, suitable for compact PCB designs.
The dimensions of this model include a height of 1.2mm and a length of 5.1mm, making it ideal for space-sensitive installations.
This model features a Delta Sigma architecture, which is designed for high precision measurement.
Yes, it conforms to the automotive AEC-Q100 standard, ensuring enhanced durability and reliability.
This ADC is designed for voltage input signals, making it suitable for various industrial and automotive sensing tasks.
The sampling rate of this ADC is 0.02ksps, optimized for accurate voltage input data conversion.
