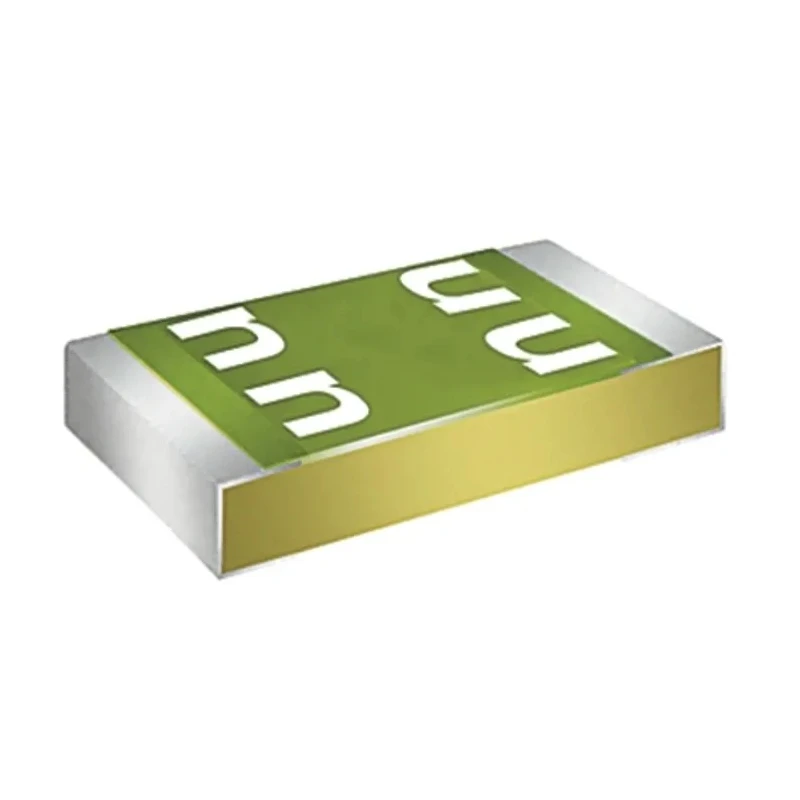

Schurter Non-Resettable Time Delay Fuse 12A, 63V DC, Epoxy Glass Body, UST 1206 Series 3413.0329.22

Free Delivery in India | Lowest Global Shipping Charges

Schurter Non-Resettable Time Delay Fuse 12A, 63V DC, Epoxy Glass Body, UST 1206 Series 3413.0329.22

Name: Schurter Non-Resettable Time Delay Fuse 12A, 63V DC, Epoxy Glass Body, UST 1206 Series 3413.0329.22
Brand: Schurter
SKU: 215803
Price: 0.53 USD
Availability: InStock



Category Non Resettable Fuse Brand Schurter Condition New

Specifications

Country of Origin	Switzerland
Brand	Schurter
Body Material	Epoxy Glass
Height	0.6mm
Depth	3.2mm
Series	UST 1206
Maximum Operating Temperature	90°C
Resistance	3.9mΩ
Package Type	Reel
Minimum Operating Temperature	-55°C
Package Size	1206
Breaking Capacity	600A
Terminal Material	Tin Plated Copper
Standards/Approvals	REACH, CSA, UL 248-14, RoHS, CE
Fuse Characteristics	Time Delay

Key Features

Offers a breaking capacity of 600A for high fault tolerance.
Compact 1206 size surface mount design suitable for space-saving boards.
Operates reliably within -55°C to 90°C temperature range.
Tin-plated copper terminals ensure excellent conductivity and solderability.
Features low resistance of 3.9 milliohms for minimal power loss.
Complies with UL 248-14, CSA, REACH, RoHS, and CE safety standards.
Packaged on reels for efficient automated assembly processes.
Ideal for protecting sensitive electronics such as alarm systems, power supplies, and medical devices.

Product Description

Schurter 3413.0329.22 non-resettable fuse is engineered for high-reliability secondary circuit protection in both direct current and alternating current applications. With a rated current of 12 amperes and voltage rating of 63V DC, this time delay fuse uses an epoxy glass body to withstand harsh conditions while maintaining stable performance.

Designed in the UST 1206 series standard, this fuse features a compact 1206 surface mount package, which significantly saves PCB space and allows for high-density assembly. Tin-plated copper terminals contribute to excellent electrical connectivity and ease of soldering during manufacturing.

The fuse has a breaking capacity of 600 amperes, enabling it to safely interrupt high fault currents without damage. Its time delay characteristic makes it well-suited for circuits with transient inrush currents, such as LCD backlight and inverter systems.

This fuse is rated for operation in temperature ranges from -55°C to 90°C, ensuring reliability in varied industrial and commercial environments. Its resistance is a low 3.9 milliohms, minimizing energy losses and improving circuit efficiency.

Compliant with international safety and environmental standards including UL 248-14, CSA, REACH, RoHS, and CE, this fuse caters to stringent quality regulations. The reel packaging facilitates automated insertion into machinery, enhancing production line efficiency.

Common applications include protection for high-value silicon integrated circuits used in alarm systems, audio/visual equipment, computer motherboards, portable electronics, power supplies, and medical apparatus. Schurter’s product ensures safe circuit operation and device longevity across these demanding applications.

Explore the extensive range of Schurter fuses for dependable circuit safeguarding in industrial, laboratory, HVAC, manufacturing, agricultural, and commercial equipment contexts on EnvMart.
