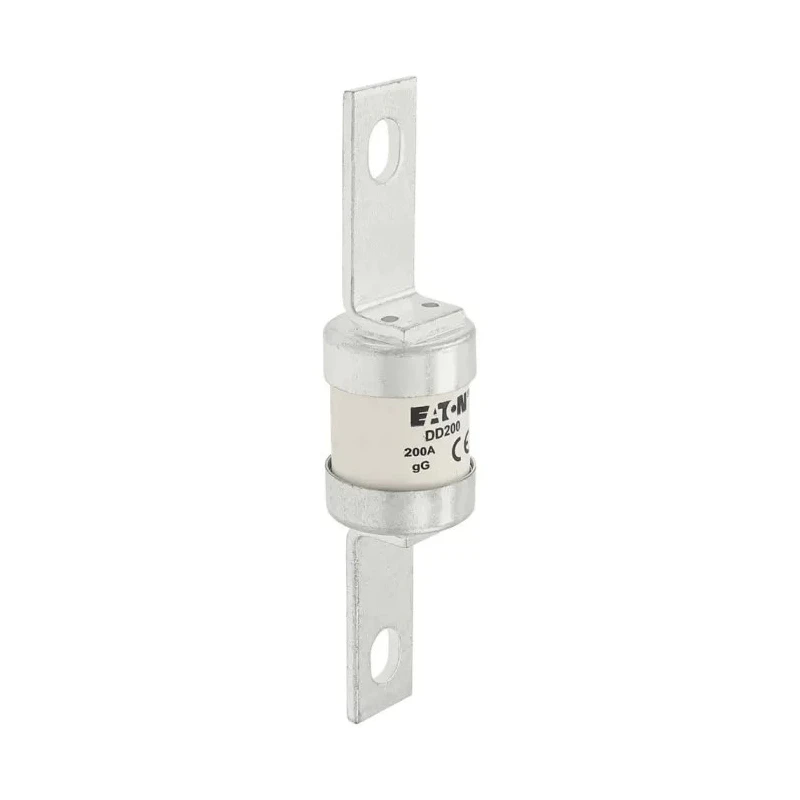

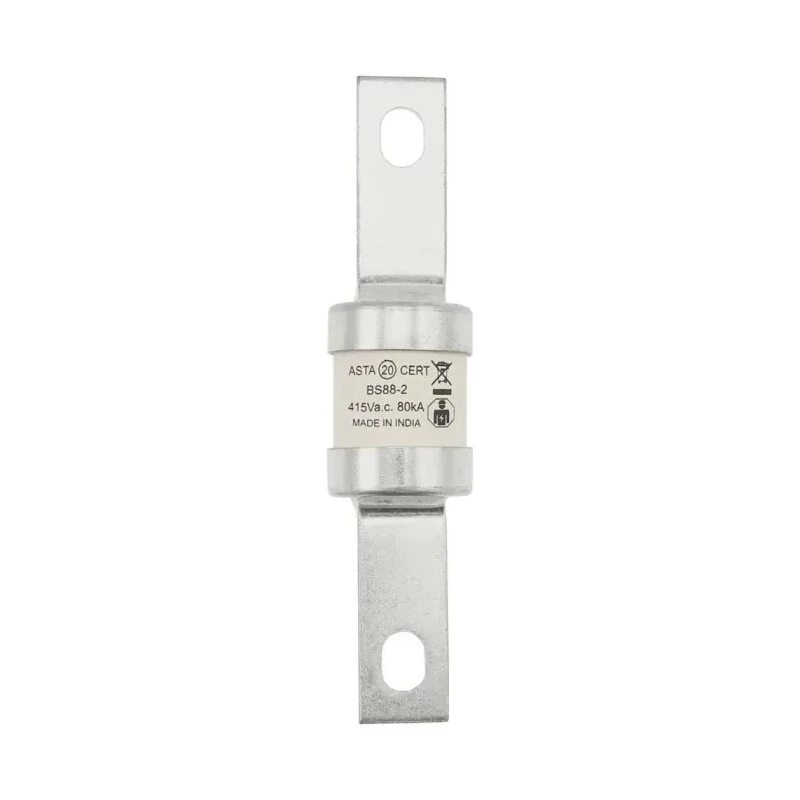

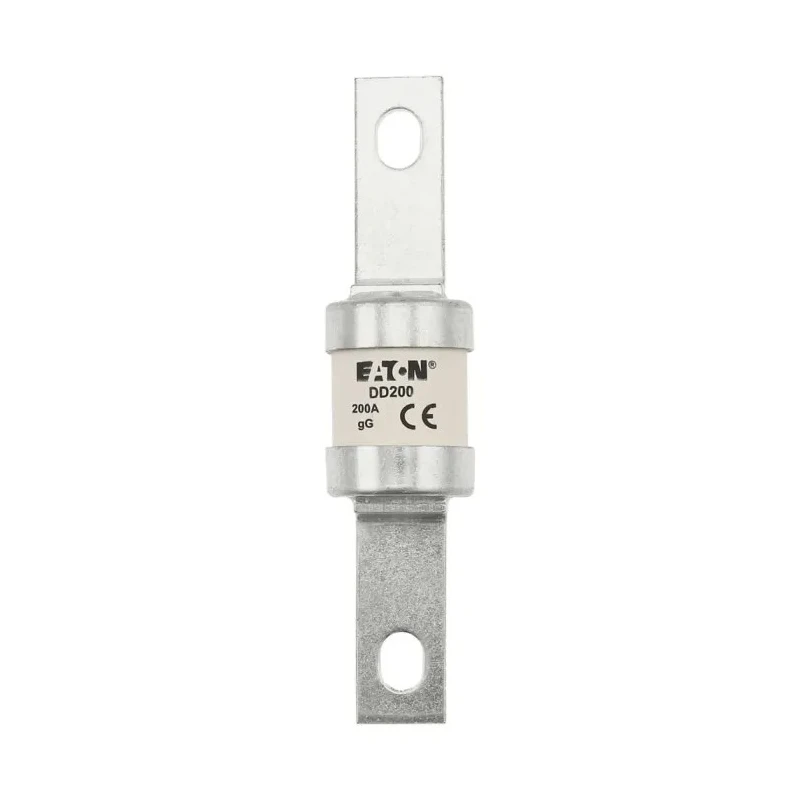

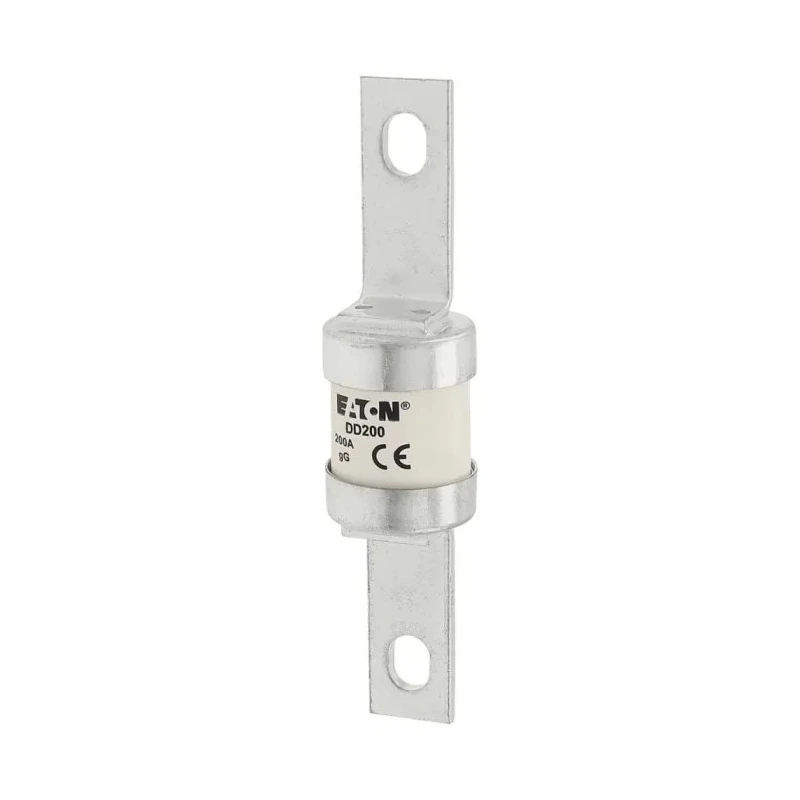

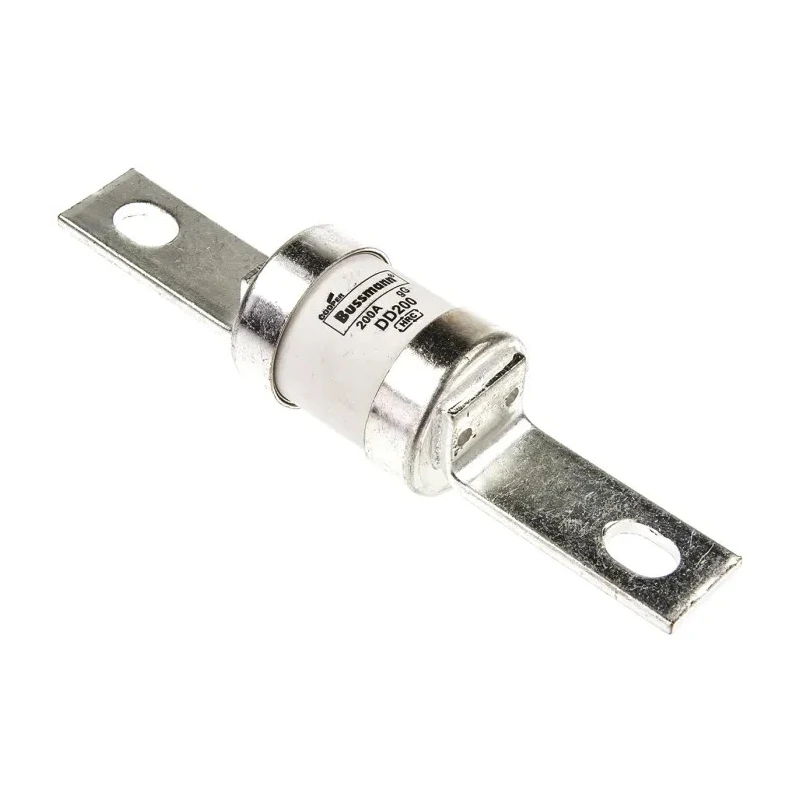

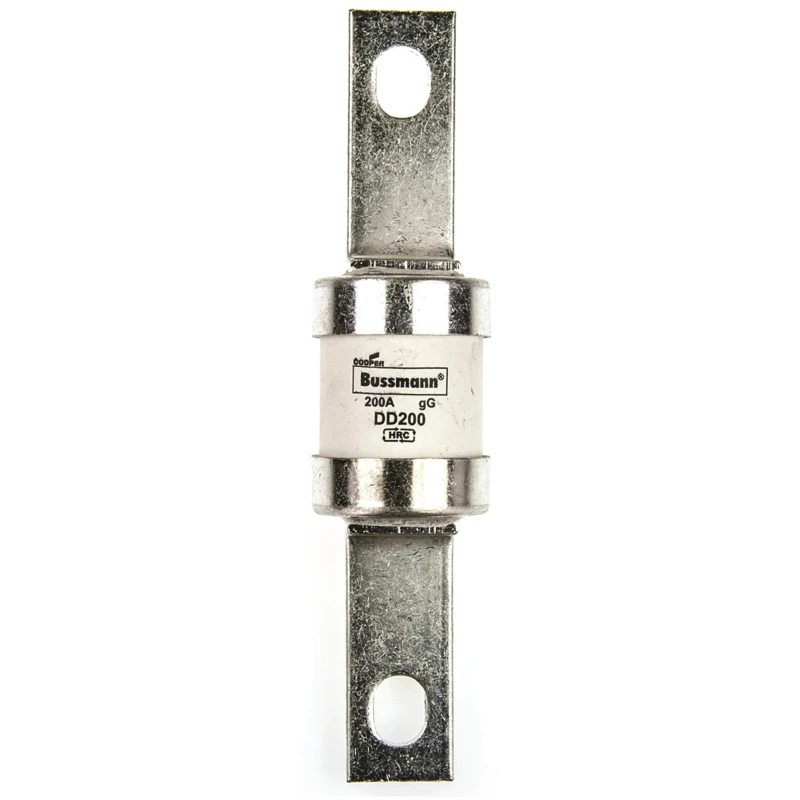

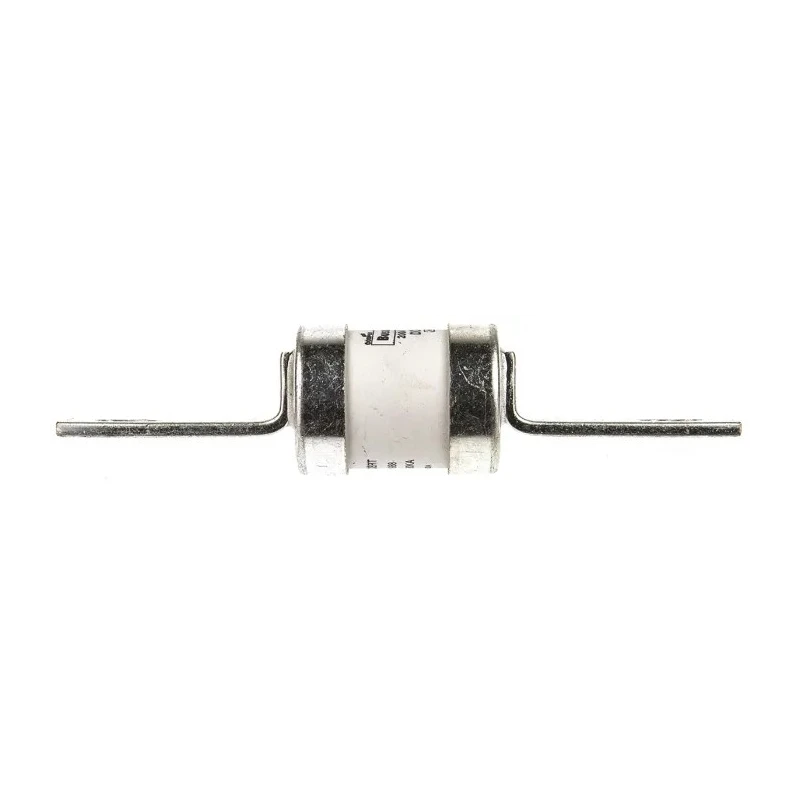

Eaton 200A British Standard Fuse B2 415V AC High Rupture Capacity, 111 mm DD200

Eaton DD200 British Standard Fuse 200A B2 415V AC is a high rupture capacity fuse designed to protect industrial electrical installations effectively. It complies with IEC 60269-2 and relevant CE and RoHS standards, ensuring safety and reliability in operation.

With a breaking capacity of 80kA at 415V AC, this fuse is engineered to interrupt high fault currents quickly, minimizing damage to equipment and enhancing system safety. Its current rating of 200 amperes makes it suitable for a wide range of industrial applications including power distribution panels and motor circuits.

The fuse features a B2 size with 111 mm fixing centres and a centred tag orientation with 19 mm tag width. Its bolted centre tags ensure secure and stable connections in the fuse holder. Fully shrouded for safety, it prevents accidental contact with live elements, protecting users from electrical hazards.

This fuse has a low power loss of 14 watts, contributing to energy efficiency within electrical systems. It is classified with an operating class of gG/gL, making it versatile for general purpose protection such as overload and short circuit protection in industrial setups.

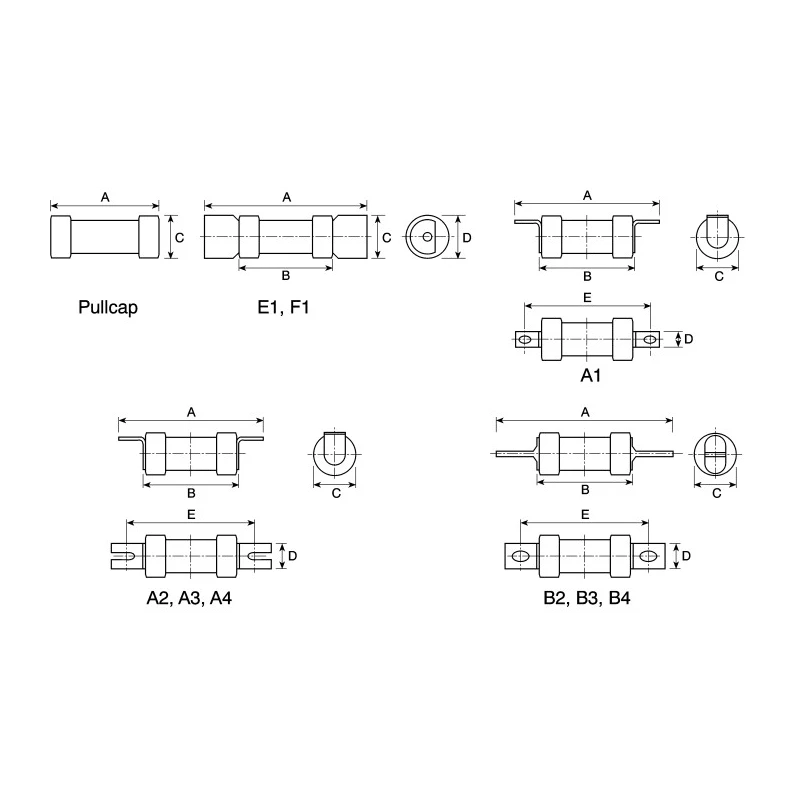

Overall dimensions include an overall length of 136 mm, tag length of 47 mm, and a diameter of 31 mm, making it compatible with Eaton’s Red Spot range of fuse holders. Its high rupture capacity rating makes it reliable for heavy-duty industrial and commercial environments.

This fuse is compatible with Eaton’s Red Spot fuse holder range, providing easy integration. Fully shrouded profile maximizes user safety. High rupture capacity of 80kA ensures robust fault interruption. Low power loss of 14W enhances energy efficiency.

Secure bolted centre tags maintain stable electrical connections. Current limiting feature limits let-through current, boosting protection. Operating class gG/gL provides versatile application for power distribution and motor protection.

Compliant with CE, RoHS, and IEC 60269-2 standards.

This Eaton British Standard Fuse is suited for industrial, manufacturing, electrical distribution, and commercial applications where high reliability and safety are required. It offers dependable overcurrent protection to enhance system uptime and reduce maintenance costs.
