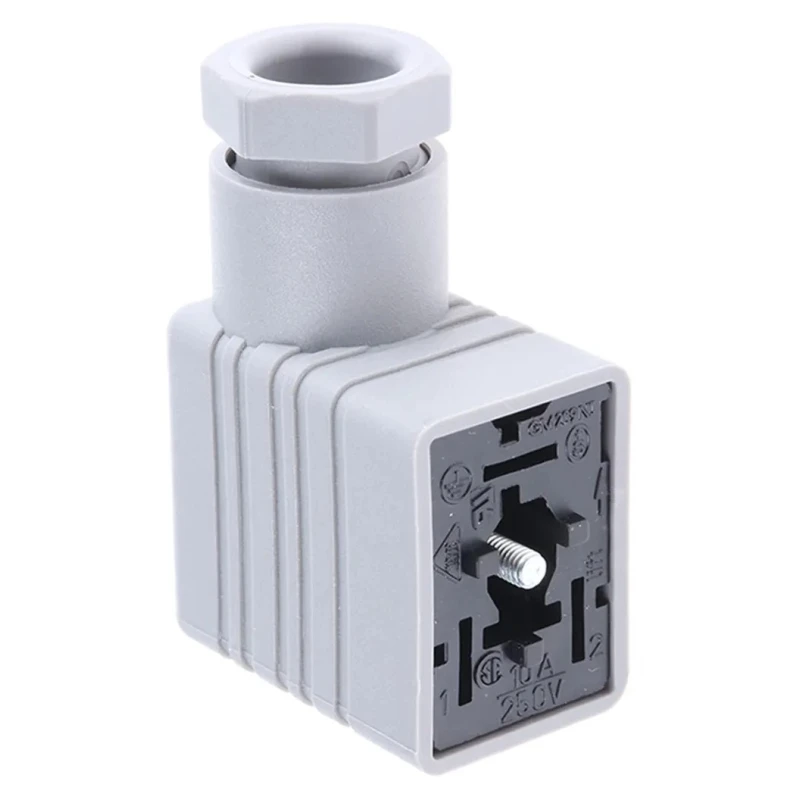

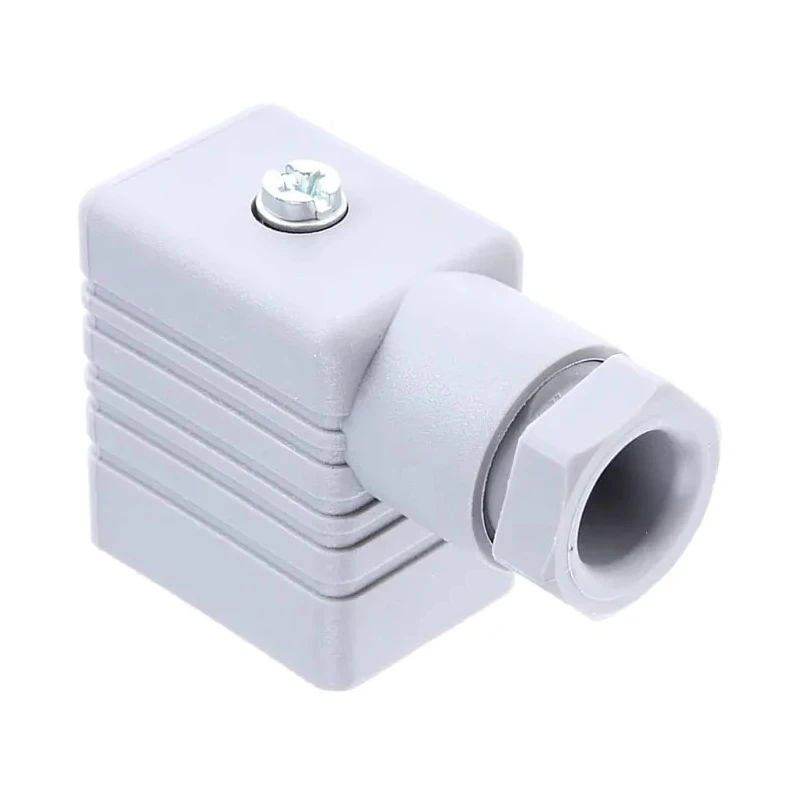

Hirschmann GM Series 2P+E DIN 43650 B Solenoid Valve Connector, 250 V AC/DC, Screw Termination, IP65 932977106 GM 209 NJ grey
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250, 250V ac |
| Brand | Hirschmann |
| Colour | Grey |
| Current | 16A |
| Model | 932977106 GM 209 NJ grey |
| IP Rating | IP65 |
| Mount Type | Screw |
| Series | GM |
| Termination Type | Screw |
| Ambient Temperature | -40°C to +90°C |
| Standards/Approvals | ISO 6952, C K H, industrial standard, S / CS / CE, IEC 60529, DIN 43650-B |
| Pole Format | 2P+E |
| Contact Gender | Female |
| DIN 43650 Type | DIN 43650 B |
| Cable Diameter Range | 4.5 to 7 mm |
| Cable Gland Size | PG9 |
Key Features
- This solenoid valve connector is designed according to DIN 43650 B standards for industrial applications.
- Constructed with durable grey glass-filled nylon housing for impact resistance and long service life.
- The connector supports a current rating of 16A and accommodates cable diameters from 4.5 to 7 mm.
- Features screw termination compatible with bare, ferruled, or crimp ring/fork terminals.
- Suitable for use in pneumatic and hydraulic equipment with an ambient temperature range of -40°C to +90°C.
- Designed with a female contact gender and a PG9 cable gland size.
- Offers protection with an IP65 ingress protection rating ensuring dust-tight and water-resistant performance.
Product Description
Hirschmann 932977106 GM 209 NJ grey 2P+E DIN 43650 B Solenoid Valve Connector is engineered for robust industrial performance in pneumatic and hydraulic control systems. Rated for 250 V AC/DC operation and 16A current, it offers reliable connectivity for solenoid valves.
The connector features a glass-filled nylon housing providing superior impact resistance and durability in harsh environments. Its screw termination design accepts bare conductors, ferruled wires, or crimp ring/fork terminals, facilitating flexible installation options.
Designed according to DIN 43650 B standards, this connector ensures compatibility with widely used solenoid valve configurations. The PG9 cable gland supports cable diameter ranges of 4.5 to 7 mm, maintaining secure and safe cable entry.
With an IP65 ingress protection rating, the connector resists dust ingress and water jets, making it suitable for industrial, laboratory, manufacturing, and agricultural environments. Its female contact design and ambient temperature operating range from -40°C to +90°C provide versatility across diverse applications.
This solenoid valve connector is designed according to DIN 43650 B standards for industrial applications. Constructed with durable grey glass-filled nylon housing for impact resistance and long service life. The connector supports a current rating of 16A and accommodates cable diameters from 4.5 to 7 mm.
Features screw termination compatible with bare, ferruled, or crimp ring/fork terminals. Suitable for use in pneumatic and hydraulic equipment with an ambient temperature range of -40°C to +90°C. Designed with a female contact gender and a PG9 cable gland size.
Offers protection with an IP65 ingress protection rating ensuring dust-tight and water-resistant performance.
For detailed technical requirements in electronics, automation, and control gear systems, Hirschmann connectors offer a dependable solution. Browse more Solenoid Valve Connectors and related products at EnvMart for comprehensive industrial connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 16A.
This model operates at 250 V AC/DC.
It has an IP65 ingress protection rating, making it dust-tight and water-resistant.
The ambient temperature range is from -40°C to +90°C.
It features screw termination compatible with bare conductors, ferruled wires, or crimp ring/fork terminals.
It accommodates cable diameters from 4.5 to 7 mm.
This model has a female contact gender.
It complies with ISO 6952, IEC 60529, and DIN 43650 B standards.
The housing is constructed from grey glass-filled nylon, providing impact resistance.
It is designed with a PG9 cable gland size.
It is suitable for use in pneumatic and hydraulic equipment.
The country of origin is Germany.
