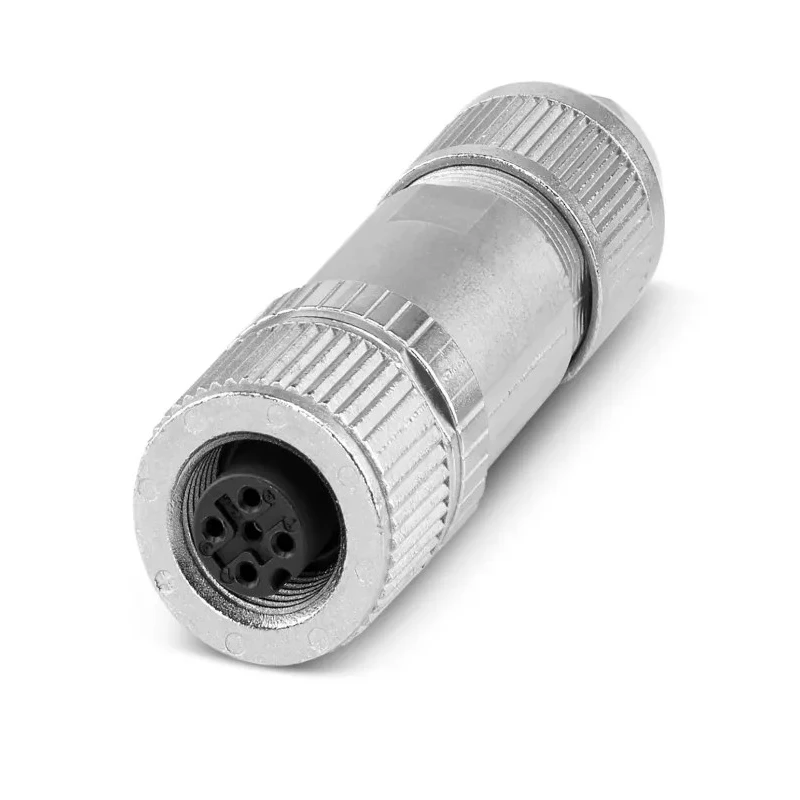

Phoenix Contact Circular Connector Cable Mount, 4 Contacts, M12 Socket Female, IP65/IP67, SACC Series 1424668

Phoenix Contact 1424668 Circular Connector Cable Mount is engineered for secure electrical connections in industrial and harsh environment applications. This 4-contact M12 socket female connector in the SACC series features a robust zinc die-cast housing that provides excellent mechanical strength and corrosion resistance. Its nickel-plated copper contacts deliver superior conductivity and signal integrity.

The connector utilizes push-in termination technology, facilitating quick and tool-free contact insertion, which enhances installation efficiency in field conditions. It supports a broad wire gauge range from 0.14 mm² to 0.75 mm² for bare wires and 0.08 mm² to 0.5 mm² with ferrules.

Rated to IP65 and IP67 standards, the connector withstands exposure to dust and powerful water jets as well as temporary immersion, ensuring reliable operation in outdoor, industrial, and manufacturing settings. Operating temperature spans from -40°C up to 85°C, covering most environmental conditions encountered in automation and control systems.

The contacts are plated with nickel over gold to prevent corrosion and maintain high signal quality over time. UL94 V0 rated materials provide fire safety through self-extinguishing characteristics, making this connector suitable for stringent safety requirements.

The straight orientation and A coding type facilitate compatibility with corresponding M12 plugs, simplifying system integration within control cabinets, sensor networks, renewable energy systems, and factory automation lines.

This durable industrial circular connector is manufactured in Germany, ensuring high quality and precision engineering. It is ideal for applications in manufacturing, automation, water treatment, and other industrial environments requiring reliable power and signal transmission.

The connector features a durable zinc die-cast housing with nickel-plated copper contacts to ensure reliable conductivity. Push-in termination type allows quick and secure wiring without tools. Supports wire sizes from 0.14 mm² to 0.75 mm² without ferrule and 0.08 mm² to 0.5 mm² with ferrule.

Operates reliably within the temperature range of -40°C to +85°C. IP65 and IP67 ratings provide resistance to water jets and immersion up to 1 meter depth for 30 minutes. Compliance with UL94 V0 flammability rating ensures fire safety through self-extinguishing material characteristics.

Compatibility with A coded M12 plugs ensures secure mating within the SACC series. Nickel over gold plating on contacts enhances corrosion resistance and signal quality. Straight orientation design offers flexible installation options.
