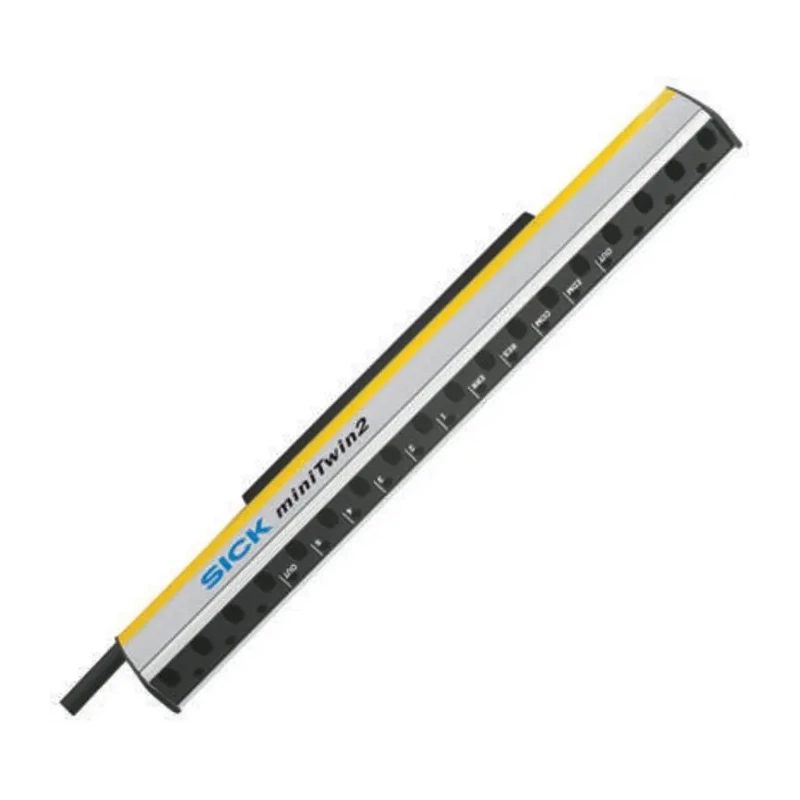

SICK C4MT Series Light Curtain Receiver, Sender, 34 mm Beam Resolution, 24V DC, Type 4 Safety C4MT

SICK C4MT Series Light Curtain Receiver and Sender model C4MT delivers reliable safety infra-red protection with a beam resolution of 34 mm and complies with Type 4 safety standards. Operating at 24V dc supply voltage, this light curtain system is engineered for industrial safety applications requiring precise object detection and intrusion prevention.

The compact miniTwin design integrates both sender and receiver in one housing, enabling versatile mounting either as stand-alone or cascaded systems. The system supports up to three cascaded miniTwin units to cover complex safety zones without blind spots, even in corner mountings.

It features LED-guided start-up indicators and diagnostic LEDs distributed along its length for quick alignment and fault identification, enhancing ease of installation and maintenance. The system plug at the device back can be repositioned to change cable exit orientation or replaced with a two-way plug for cascading multiple units seamlessly using the universal 5-pin M12 connector.

Mounting options are flexible with available O-Fix brackets for flat mounting, C-Fix for corner cascade mounting, and L-Fix for vertical positioning, facilitating adaptation to various machine architectures and safety requirements. The protective field height is 1200 mm with a maximum protective width of 5 meters, a scanning distance ranging from 0 to 5 meters, and a fast response time of 13 ms, meeting demanding industrial safety criteria.

This light curtain system is suitable for safeguarding robots, packaging machines, injection molding machines, transfer lines, automated warehouses, textile machinery, electronic assembly lines, and bottling operations, among others. It complies with CE and UL standards and offers IP65 protection for harsh environments.

For complete system setup, pairing the receiver with the complementary sender unit is recommended as indicated in the accessories. Integration with UE410 flex classic controllers and UE12 safety relays ensures comprehensive machinery safety control.

The miniTwin integrates sender and receiver in one compact unit. Flexible mounting for standalone or cascaded multi-unit safety zones. LED indicators facilitate alignment and diagnostic procedures. Standard 5-pin M12 connectors enable easy system cascading and controller interface.

Available mounting brackets support multiple installation orientations. Protective height of 1200 mm and scanning range up to 5 m for varied applications. Maximum response time of 13 ms for prompt safety interventions. CE certified, UL approved, and IP65 rated for industrial reliability.

Suitable for multiple industrial machine safety applications. Explore the full range of SICK products and Safety Light Curtains on EnvMart for professional industrial safety solutions.
